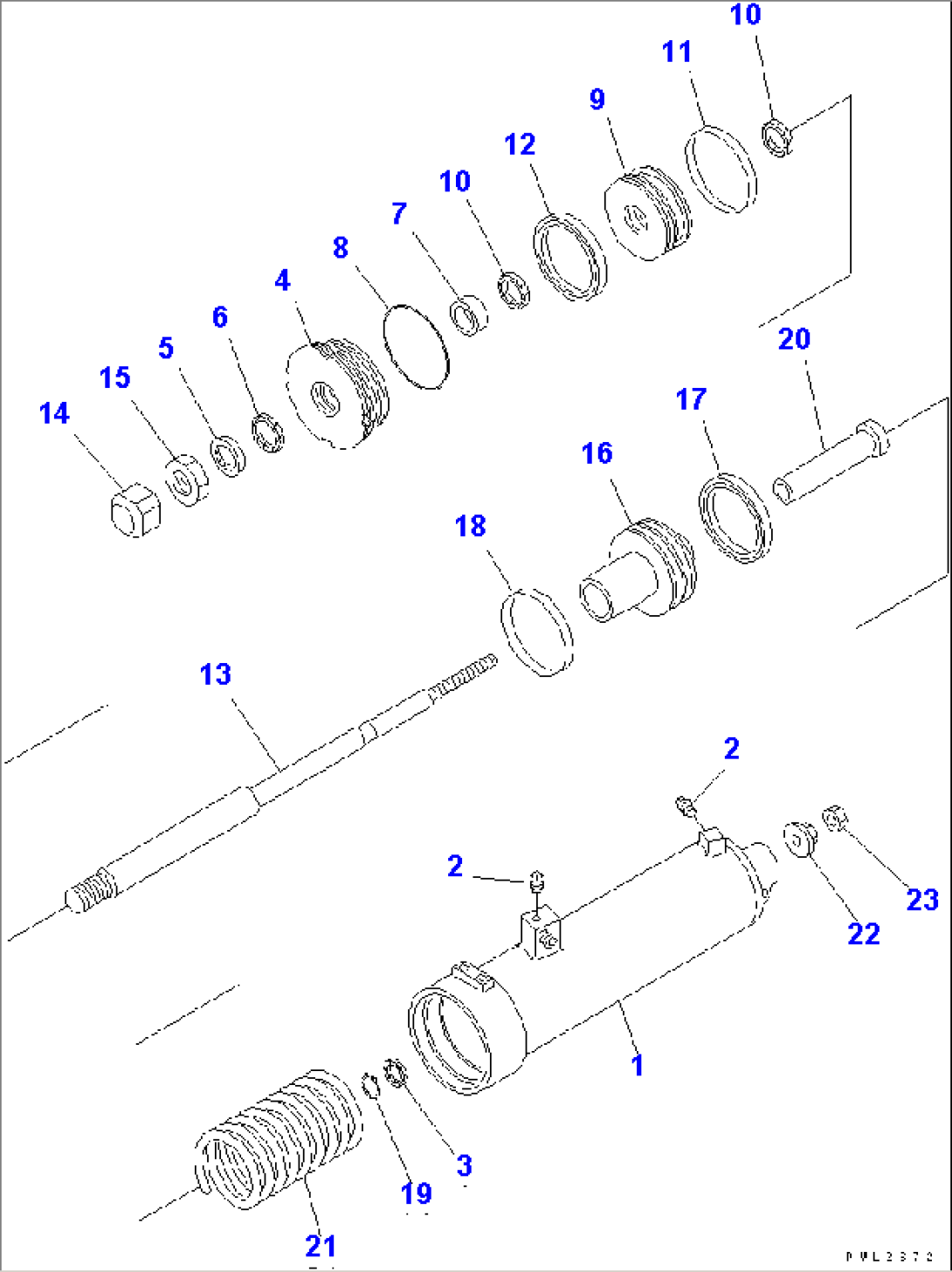

| Item | Part No. | Part Name | Qty | Serial No. |
| 175-33-00130 | CYLINDER ASS'Y | 57001- | ||
| 1 | 195-33-14360 | CYLINDER | 57001- | |
| 2 | 07042-20108 | PLUG | 57001- | |
| 3 | 07006-00022 | PACKING | 57001- | |
| 4 | 195-33-14380 | HEAD | 57001- | |
| 5 | 07016-00357 | SEAL,DUST | 57001- | |
| 6 | 707-51-35210 | PACKING | 57001- | |
| 7 | 195-33-15150 | BUSHING | 57001- | |
| 8 | 07000-02115 | O-RING | 57001- | |
| 9 | 195-33-14390 | PISTON | 57001- | |
| 10 | 707-51-35210 | PACKING | 57001- | |
| 11 | 07156-01112 | RING,WEAR | 57001- | |
| 12 | 707-44-11080 | RING,PISTON | 57001- | |
| 13 | 195-33-14420 | ROD | 57001- | |
| 14 | 178-33-13190 | NUT | 57001- | |
| 15 | 01583-13018 | NUT | 57001- | |
| 16 | 195-33-14411 | PISTON | 57001- | |
| 17 | 707-44-11080 | RING,PISTON | 57001- | |
| 18 | 07156-01112 | RING,WEAR | 57001- | |
| 19 | 04064-02212 | RING,SNAP | 57001- | |
| 20 | 195-33-14430 | COLLAR | 57001- | |
| 21 | 195-33-14450 | SPRING | 57001- | |
| 22 | 195-33-22150 | NUT | 57001- | |
| 23 | 01580-11411 | NUT | 57001- |
