| Item | Part No. | Part Name | Qty | Serial No. |

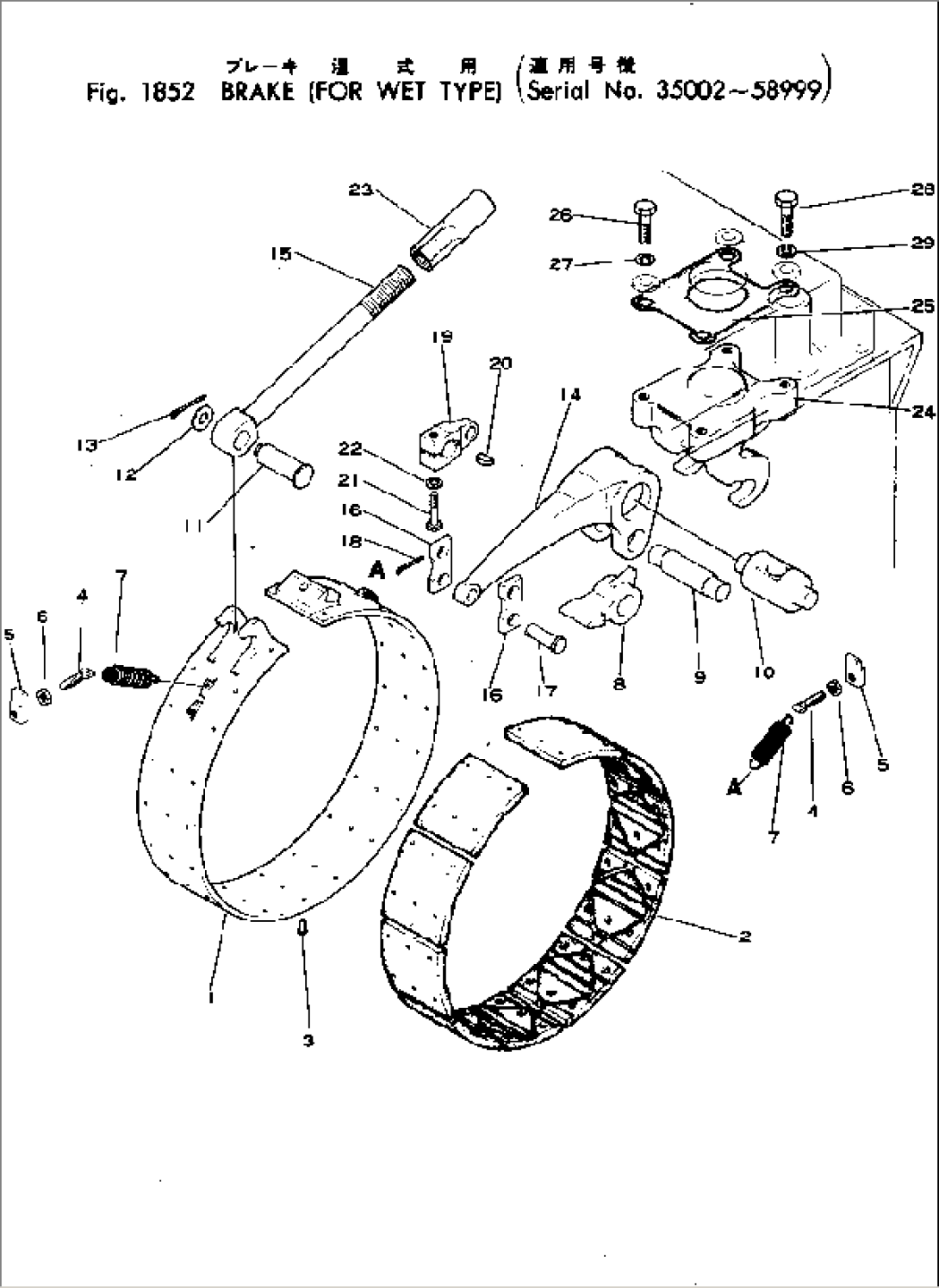

| 130-809-0011 | BRAKE BAND ASS'Y | 35002-58999 | ||
| 1 | \6\ | BAND | 35002-58999 | |
| 2 | 130-809-5222 | LINING | 35002-58999 | |
| 3 | 04412-00512 | RIVET | 35002-58999 | |
| 4 | 130-809-5230 | BOLT | 35002-58999 | |
| 5 | 130-809-5240 | PLATE | 35002-58999 | |
| 6 | 01504-31006 | NUT | 35002-58999 | |
| 7 | 131-33-41461 | SPRING | 35002-58999 | |
| 8 | 130-809-5310 | END | 35002-58999 | |
| 9 | 144-33-11280 | PIN | 35002-58999 | |
| 10 | 144-33-11310 | PIN | 35002-58999 | |
| 11 | 144-33-11330 | PIN | 35002-58999 | |
| 12 | 01640-01626 | WASHER | 35002-58999 | |
| 13 | 04050-04025 | PIN | 35002-58999 | |
| 14 | 130-809-5320 | LEVER | 35002-58999 | |
| 15 | 130-809-5330 | ROD | 35002-58999 | |
| 16 | 130-809-5350 | LINK | 35002-58999 | |
| 17 | 04205-01645 | PIN | 35002-58999 | |
| 18 | 04050-04025 | PIN | 35002-58999 | |
| 19 | 130-809-5360 | LEVER | 35002-58999 | |
| 20 | 04010-00722 | KEY | 35002-58999 | |
| 21 | 01040-00722 | BOLT | 35002-58999 | |
| 22 | 01602-01030 | WASHER | 35002-58999 | |
| 23 | 130-809-5340 | NUT | 35002-58999 | |
| 24 | 130-809-5370 | BRACKET | 35002-58999 | |
| 25 | 130-809-5380 | GASKET | 35002-58999 | |
| 26 | 01040-31445 | BOLT | 35002-58999 | |
| 27 | 01602-11442 | WASHER | 35002-58999 | |
| 28 | 01040-31435 | BOLT | 35002-58999 | |
| 29 | 01602-11442 | WASHER | 35002-58999 |
