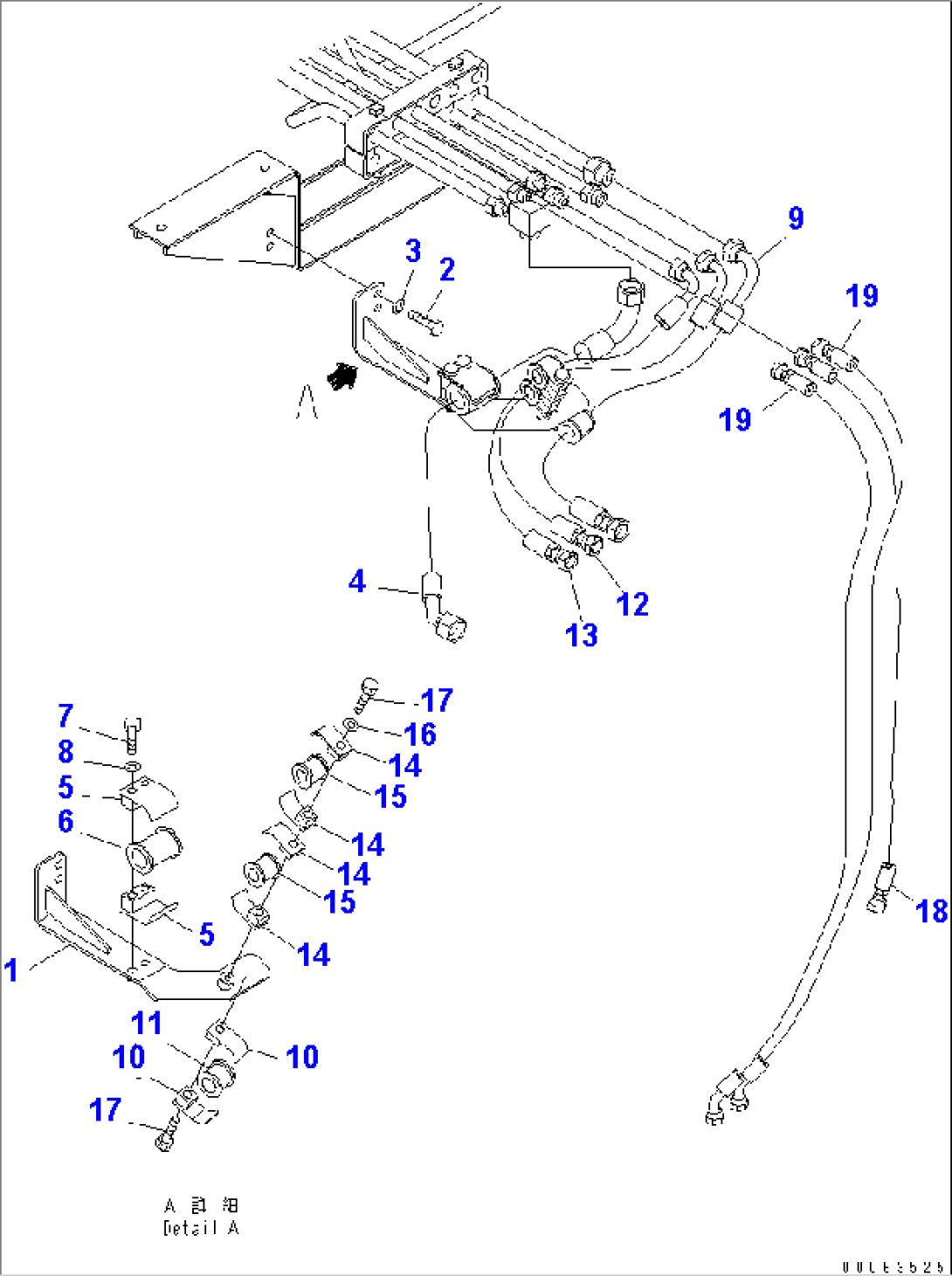

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-43-83551 | BRACKET | 7169- | |
| 2 | 01010-81230 | BOLT | 7169- | |
| 3 | 01643-31232 | WASHER | 7169- | |
| 4 | 561-43-83950 | HOSE | 7169- | |
| 5 | 07094-11024 | CLAMP | 7169- | |
| 6 | 07095-01034 | CUSHION | 7169- | |
| 7 | 01010-81285 | BOLT | 7169- | |
| 8 | 01643-31232 | WASHER | 7169- | |
| 9 | 02766-00608 | HOSE | 7169- | |
| 10 | 07094-10620 | CLAMP | 7169- | |
| 11 | 07095-00628 | CUSHION | 7169- | |
| 12 | 02766-005A8 | HOSE | 7169- | |
| 13 | 02766-00508 | HOSE | 7169- | |
| 14 | 07094-10518 | CLAMP | 7169- | |
| 15 | 07095-00524 | CUSHION | 7169- | |
| 16 | 01643-31232 | WASHER | 7169- | |
| 17 | 01011-81210 | BOLT | 7169- | |
| 18 | 02765-00412 | HOSE | 7169- | |
| 19 | 02767-00416 | HOSE | 7169- |
