| Item | Part No. | Part Name | Qty | Serial No. |

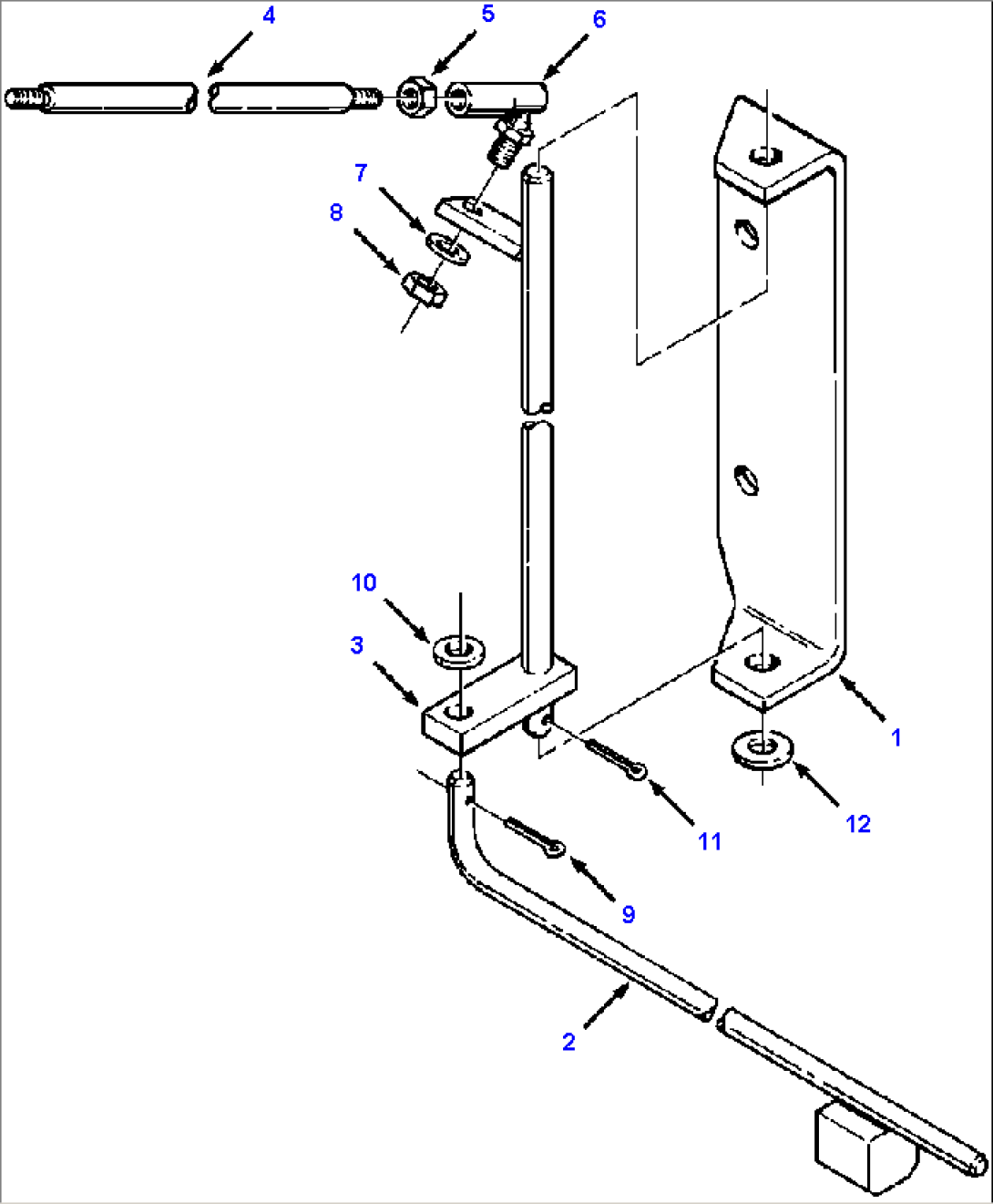

| (1298 122 H91) | BRAKE LOCK SUPPORT | |||
| 1 | 1287 039 H1 | SUPPORT, MOUNTING | ||
| 2 | 1298 121 H92 | ROD, LOCK | ||
| 3 | 1287 041 H91 | BELLCRANK | ||
| 4 | 740 485 C1 | ROD, PULL | ||
| 5 | 26 030 R1 | NUT, HEX - 1/4NF | ||
| 6 | 281 800 C92 | JOINT, BALL | ||
| 7 | 120 380 | WASHER, LOCK - 1/4 | ||
| 8 | 26 030 R1 | NUT, HEX - 1/4NF | ||
| 9 | 30 259 R1 | PIN, COTTER - 2.5x20MM | ||
| 103 373 | PIN, COTTER - 3/32x3/4 | |||
| 10 | 25 534 R1 | WASHER, FLAT - 3/8 | ||
| 11 | 30 259 R1 | PIN, COTTER - 2.5x20MM | ||
| 103 373 | PIN, COTTER - 3/32x3/4 | |||
| 12 | 25 536 R1 | WASHER, FLAT - 1/2 | ||
| F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY. | ||||
| F2 - BALL JOINT SHOWN 180ø FROM ACTUAL MOUNTING POSITION. | ||||
