| Item | Part No. | Part Name | Qty | Serial No. |

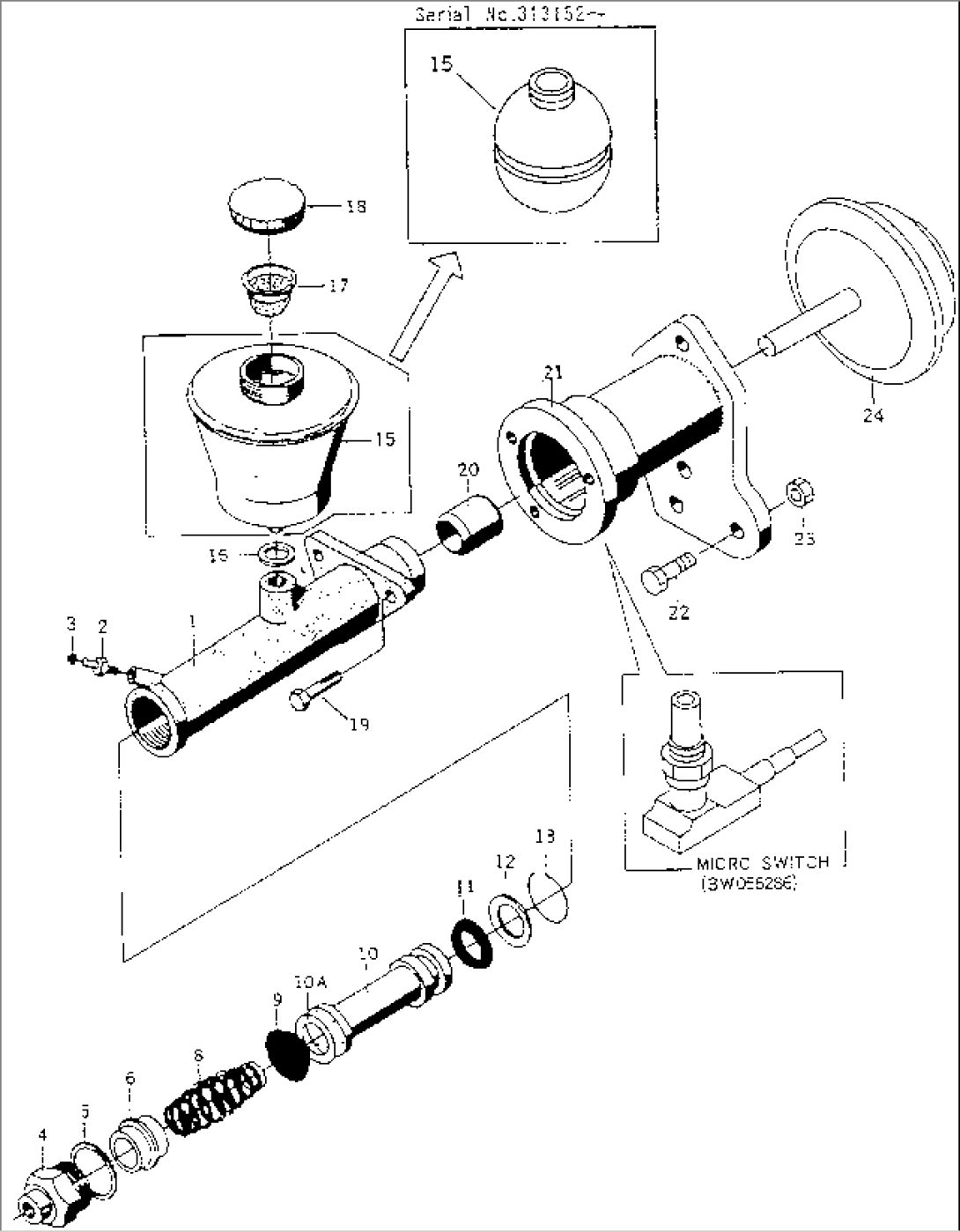

| BW034706 | CYLINDER ASS'Y,BRAKE MASTER | 313001- | ||
| 1 | \6\ | CYLINDER | 313001- | |
| 2 | BW053919 | BLEEDER | 313001- | |
| 3 | BW053920 | CAP | 313001- | |
| 4 | BW053925 | CONNECTOR | 313001- | |
| 5 | BW053973 | GASKET | 313001- | |
| 6 | BW046578 | SLEEVE | 313001- | |
| 8 | BW053926 | SPRING | 313001- | |
| 9 | \6\ | GASKET (KIT) | 313001- | |
| 10 | \6\ | PISTON (KIT) | 313001- | |
| 10A | \6\ | WASHER (KIT) | 313001- | |
| 11 | \6\ | GASKET (KIT) | 313001- | |
| 12 | BW053922 | RING,BACK-UP | 313001- | |
| 13 | \6\ | RING,LOCK (KIT) | 313001- | |
| 15 | BW054535 | RESERVOIR,BRAKE FLUID | 313152- | |
| 15 | \0\BW054522 | RESERVOIR,BRAKE FLUID | 313134-313151 | |
| 15 | \0\BW054326 | RESERVOIR,BRAKE FLUID | 313001-313133 | |
| 16 | BW066867 | RING,SEAL | 313001- | |
| 17 | BW054436 | FILTER | 313001- | |
| 18 | BW054515 | COVER | 313134- | |
| 18 | BW054335 | COVER | 313001-313133 | |
| 19 | BW161485 | BOLT,(M10X20) | 313072- | |
| 19 | \0\BW061485 | BOLT,(M10X20) | 313001-313071 | |
| 20 | BW045116 | SLEEVE | 313001- | |
| 21 | BW022925 | BRACKET | 313052- | |
| 21 | BW034569 | BRACKET | 313001-313051 | |
| 22 | BW057205 | BOLT,(M16X40) | 313072- | |
| 22 | \0\BW061517 | BOLT,(M16X40) | 313001-313071 | |
| 23 | BW053451 | NUT | 313072- | |
| 23 | \0\BW063042 | NUT | 313001-313071 | |
| 24 | (BW033728) | AIR CYLINDER ASS'Y | 313001- | |
| SERVICE KIT | ||||
| KIT | BW153032 | REPAIR KIT,MASTER CYLINDER | 313001- |
