| Item | Part No. | Part Name | Qty | Serial No. |

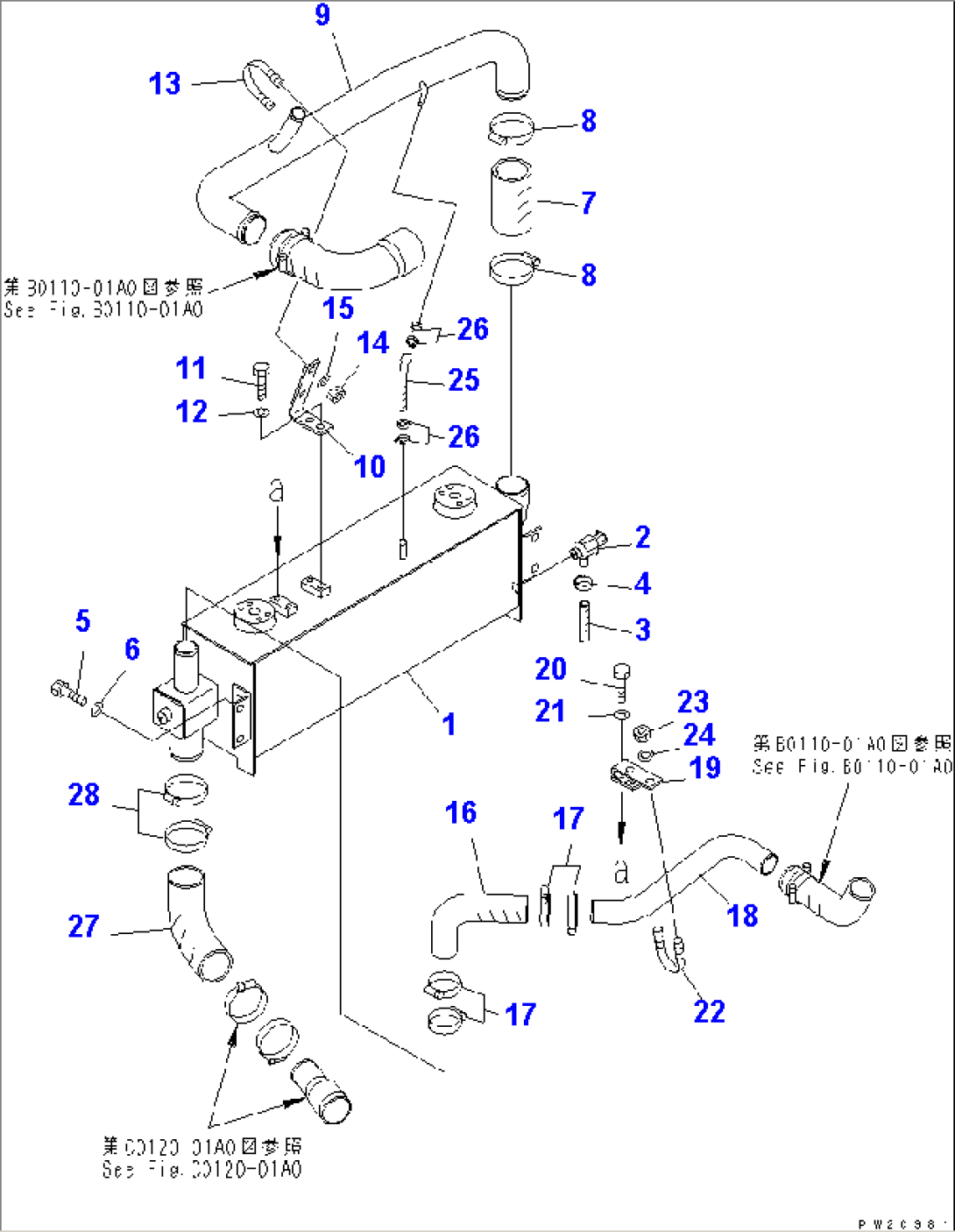

| 56D-03-11301 | OIL COOLER ASS'Y | 1001- | ||
| 1 | 56D-03-11310 | OIL COOLER | 1001- | |
| 2 | 195-03-13241 | VALVE | 1001- | |
| 3 | 07270-01002 | TUBE | 1001- | |
| 4 | 07281-00167 | CLAMP | 1001- | |
| 5 | 01010-81225 | BOLT | 1001- | |
| 6 | 01643-31232 | WASHER | 1001- | |
| 7 | 421-03-11340 | HOSE | 1001- | |
| 8 | 07299-00070 | CLAMP | 1016- | |
| \0\07289-00070 | CLAMP | 1001-1015 | ||
| 9 | 56D-03-11681 | TUBE | 1001- | |
| 10 | 56D-03-11793 | BRACKET | 1001- | |
| 11 | 01010-81020 | BOLT | 1001- | |
| 12 | 01643-31032 | WASHER | 1001- | |
| 13 | 07283-36155 | CLIP | 1001- | |
| 14 | 01597-01009 | NUT | 1001- | |
| 15 | 01643-31032 | WASHER | 1001- | |
| 16 | 416-03-12220 | HOSE | 1001- | |
| 17 | 07299-00055 | CLAMP | 1016- | |
| \0\07289-00055 | CLAMP | 1001-1015 | ||
| 18 | 56D-03-11890 | TUBE | 1001- | |
| 19 | 56D-03-11761 | BRACKET | 1001- | |
| 20 | 01010-81020 | BOLT | 1001- | |
| 21 | 01643-31032 | WASHER | 1001- | |
| 22 | 07283-34346 | CLIP | 1001- | |
| 23 | 01597-01009 | NUT | 1001- | |
| 24 | 01643-31032 | WASHER | 1001- | |
| 25 | 09483-40303 | HOSE | 1001- | |
| 26 | 07281-10197 | CLAMP | 1001- | |
| 27 | 56D-03-11880 | HOSE | 1001- | |
| 28 | 07299-00070 | CLAMP | 1016- | |
| 07289-00070 | CLAMP | 1001-1015 |
