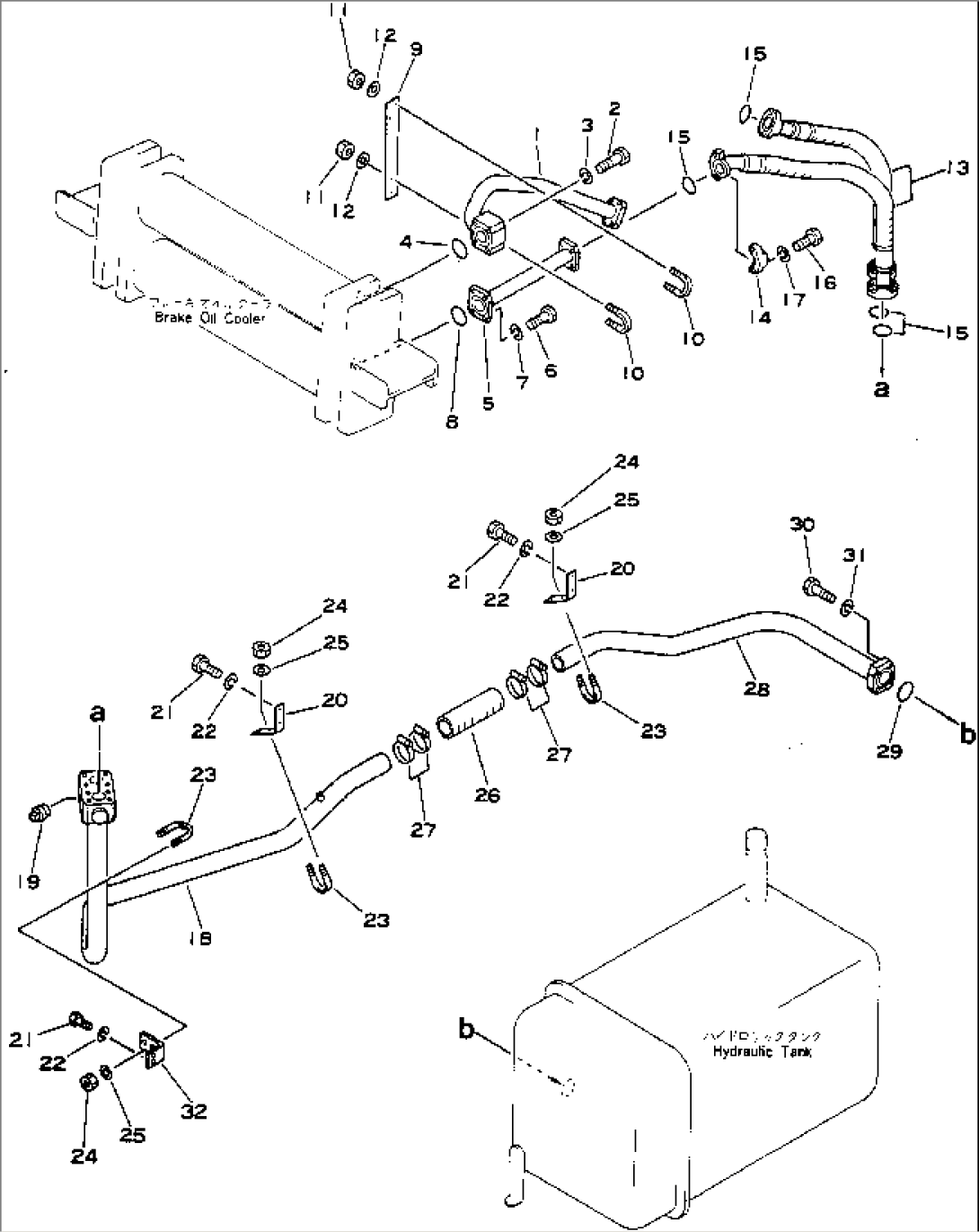

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-61-15541 | TUBE | 1002- | |
| 2 | 01010-51280 | BOLT | 1002- | |
| 3 | 01602-21236 | WASHER | 1002- | |
| 4 | 07000-12060 | O-RING | 1002- | |
| 5 | 561-61-15551 | TUBE | 1002- | |
| 6 | 01010-51240 | BOLT | 1002- | |
| 7 | 01602-21236 | WASHER | 1002- | |
| 8 | 07000-12060 | O-RING | 1002- | |
| 9 | 561-61-15570 | PLATE | 1002- | |
| 10 | 07283-24346 | CLIP | 1002- | |
| 11 | 01599-01011 | NUT | 1002- | |
| 12 | 01643-31032 | WASHER | 1002- | |
| 13 | 07114-01410 | HOSE | 1002- | |
| 14 | 07371-31460 | FLANGE | 1002- | |
| 15 | 07000-13048 | O-RING | 1002- | |
| 16 | 07372-21235 | BOLT | 1002- | |
| 17 | 01602-21236 | WASHER | 1002- | |
| 18 | 561-61-15421 | TUBE | 1002- | |
| 19 | 07042-20108 | PLUG | 1002- | |
| 20 | 561-61-15910 | BRACKET | 1002- | |
| 21 | 01010-51225 | BOLT | 1002- | |
| 22 | 01602-21236 | WASHER | 1002- | |
| 23 | 07283-26155 | CLIP | 1002- | |
| 24 | 01599-01011 | NUT | 1002- | |
| 25 | 01643-31032 | WASHER | 1002- | |
| 26 | 07260-25822 | HOSE | 1002- | |
| 27 | 07281-00909 | CLAMP | 1002- | |
| 28 | 561-61-15440 | TUBE | 1002- | |
| 29 | 07000-12060 | O-RING | 1002- | |
| 30 | 07372-21245 | BOLT | 1002- | |
| 31 | 01602-21236 | WASHER | 1002- | |
| 32 | 561-61-15490 | BRACKET | 1002- |
