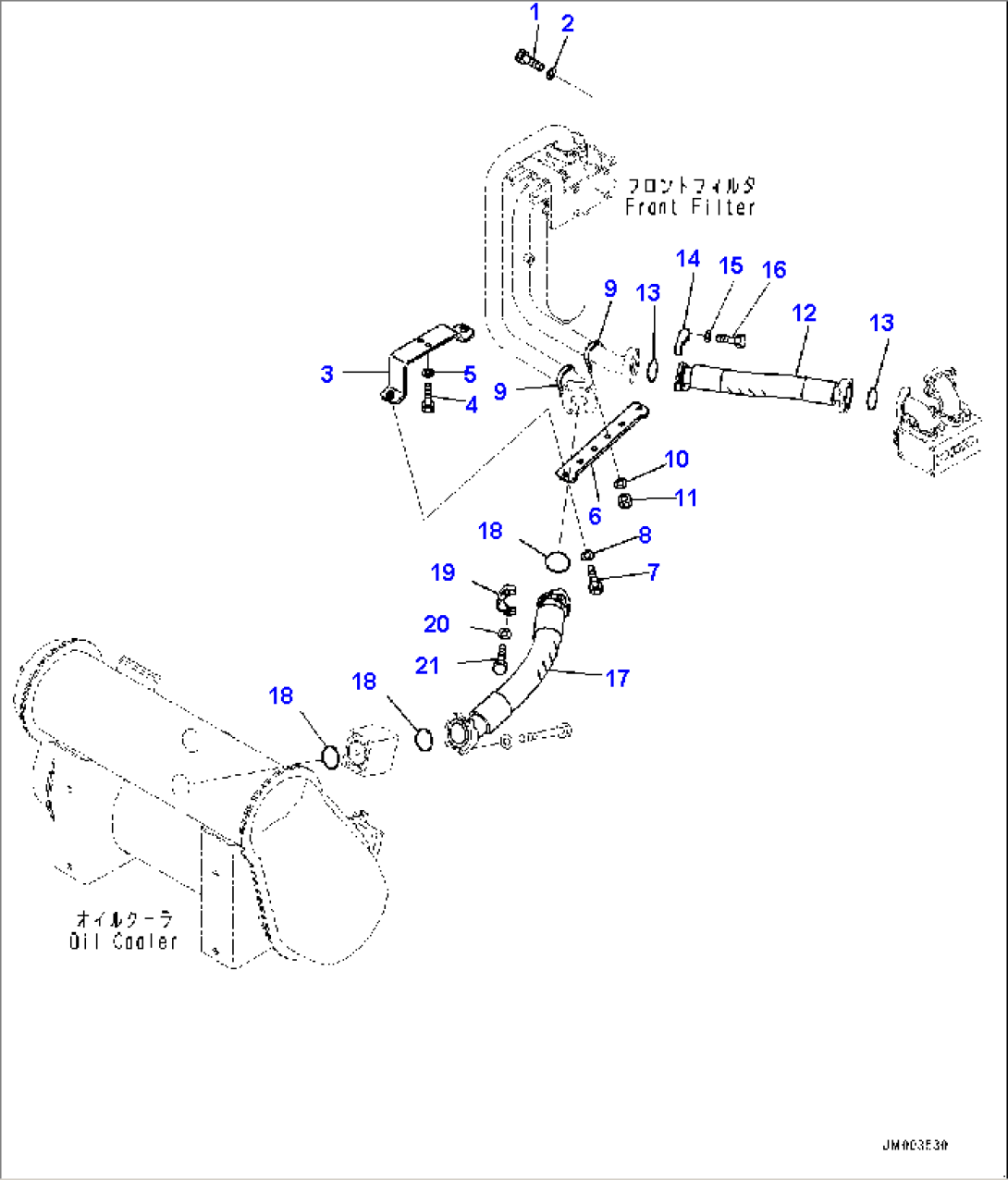

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81230 | Bolt | 80138- | |
| 2 | 01643-31232 | Washer | 80138- | |
| 3 | 562-61-33560 | Bracket | 80138- | |
| 4 | 01010-81225 | Bolt | 80138- | |
| 5 | 01643-31232 | Washer | 80138- | |
| 6 | 562-61-33570 | Plate | 80138- | |
| 7 | 01010-81235 | Bolt | 80138- | |
| 8 | 01643-31232 | Washer | 80138- | |
| 9 | 07283-35158 | Clip, Pipe | 80138- | |
| 10 | 01643-31032 | Washer | 80138- | |
| 11 | 01597-01009 | Nut | 80138- | |
| 12 | AHHA7310 | Hose | 80138- | |
| 13 | AHWA0187 | O-ring | 80138- | |
| 14 | AHTF3231 | Flange | 80138- | |
| 15 | AHTR5445 | Washer, Lock | 80138- | |
| 16 | 02010-70838 | Bolt, Unified | 80138- | |
| 17 | AHHA7311 | Hose | 80138- | |
| 18 | AHWA0232 | O-ring | 80138- | |
| 19 | AHVH6718 | Flange | 80138- | |
| 20 | AHTR5445 | Washer, Lock | 80138- | |
| 21 | 02010-70844 | Bolt, Unified | 80138- |
