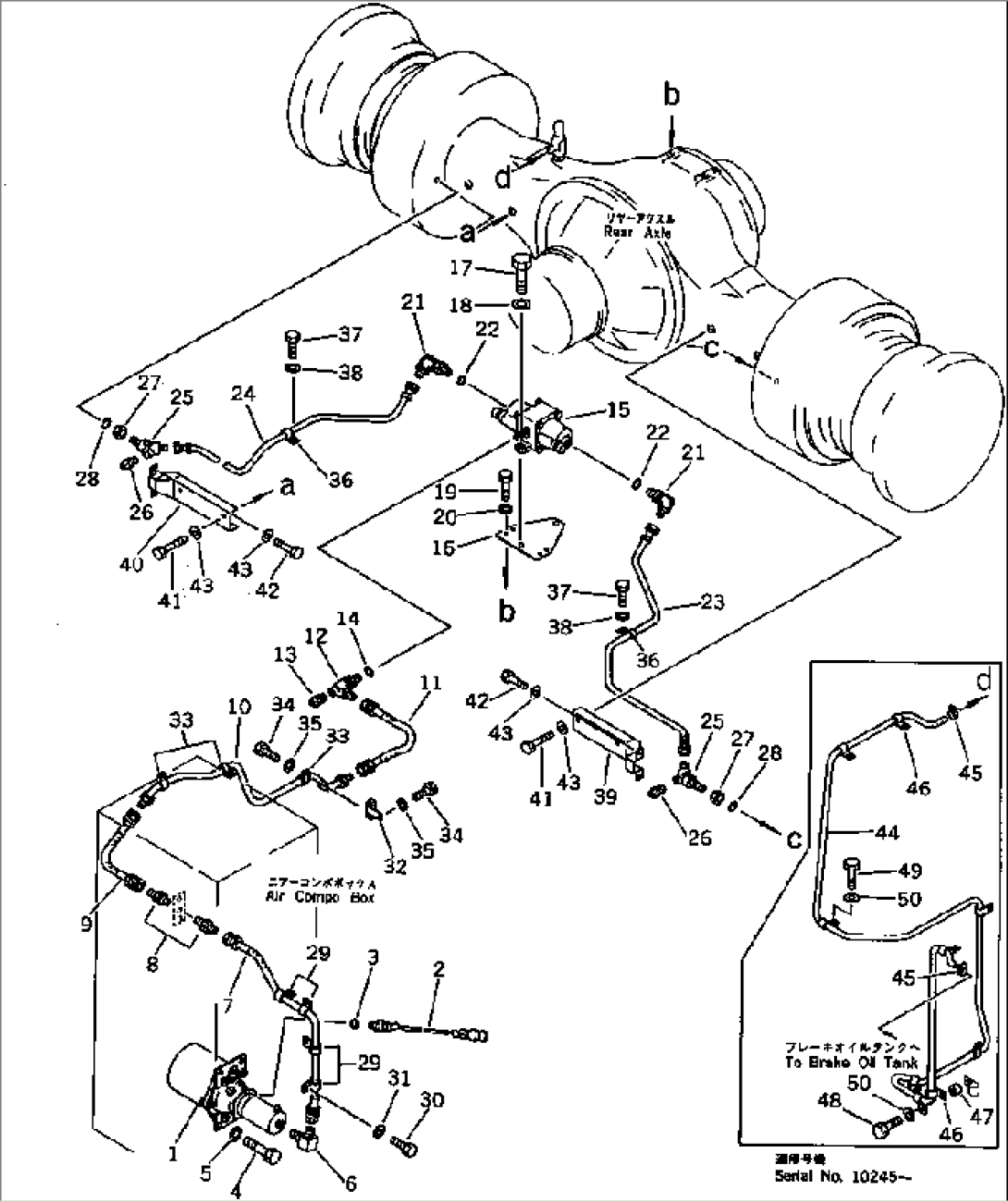

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (421-35-13301) | BRAKE CHAMBER ASS'Y | 10001-@ | |
| 2 | 7861-99-1600 | SENSOR,STROKE | 10001-@ | |
| 3 | 07002-12034 | O-RING | 10001-@ | |
| 4 | 01010-81245 | BOLT | 10001-@ | |
| 5 | 01643-31232 | WASHER | 10001-@ | |
| 6 | 566-35-14410 | ELBOW | 10001-@ | |
| 7 | 07104-20410 | HOSE | 10001-@ | |
| 8 | 07238-10422 | CONNECTOR | 10001-@ | |
| 9 | 07104-20404 | HOSE | 10001-@ | |
| 10 | 426-35-11291 | TUBE | 10001-10452 | |
| 11 | 07104-20406 | HOSE | 10001-10452 | |
| 12 | 07235-50422 | ELBOW | 10001-10452 | |
| 13 | 07042-30108 | PLUG | 10001-@ | |
| 14 | 07002-12034 | O-RING | 10001-@ | |
| 15 | (426-35-15200) | SLACK ADJUSTER ASS'Y | 10001-@ | |
| 16 | 426-35-15130 | BRACKET | 10001-@ | |
| 17 | 01010-81440 | BOLT | 10001-@ | |
| 18 | 01643-31445 | WASHER | 10001-@ | |
| 19 | 01010-81030 | BOLT | 10001-@ | |
| 20 | 01643-31032 | WASHER | 10001-@ | |
| 21 | 07235-10315 | ELBOW | 10001-@ | |
| 22 | 07002-12034 | O-RING | 10001-@ | |
| 23 | 426-35-11271 | TUBE | 10001-10452 | |
| 24 | 426-35-11281 | TUBE | 10001-@ | |
| 25 | 07233-20315 | ELBOW | 10001-@ | |
| 26 | 07042-30108 | PLUG | 10001-@ | |
| 27 | 07239-12009 | NUT | 10001-@ | |
| 28 | 07002-02034 | O-RING | 10001-@ | |
| 29 | 421-09-12170 | CLIP | 10001-@ | |
| 30 | 01010-81020 | BOLT | 10001-@ | |
| 31 | 01643-31032 | WASHER | 10001-@ | |
| 32 | 426-35-11110 | BRACKET | 10001-@ | |
| 33 | 421-09-12170 | CLIP | 10001-@ | |
| 34 | 01010-81020 | BOLT | 10001-@ | |
| 35 | 01643-31032 | WASHER | 10001-@ | |
| 36 | 08035-01510 | CLIP | 10001-@ | |
| 37 | 01010-81020 | BOLT | 10001-@ | |
| 38 | 01643-31032 | WASHER | 10001-@ | |
| 39 | 426-35-11891 | COVER | .-@ | |
| 39 | \0\426-35-11890 | COVER | 10001-. | |
| 40 | 426-35-11991 | COVER | .-@ | |
| 40 | \0\426-35-11990 | COVER | 10001-. | |
| 41 | 01010-81020 | BOLT | 10001-@ | |
| 42 | 01010-51045 | BOLT | 10001-@ | |
| 43 | 01643-31032 | WASHER | 10001-@ | |
| 44 | 07261-20939 | HOSE | 10001-10452 | |
| 45 | 07281-00197 | CLAMP | 10001-10452 | |
| 46 | 426-06-12740 | CLIP | 10245-@ | |
| 47 | 195-01-14540 | COLLAR | 10245-@ | |
| 48 | 01010-51035 | BOLT | 10245-@ | |
| 49 | 01010-51020 | BOLT | 10245-@ | |
| 50 | 01643-31032 | WASHER | 10245-@ |
