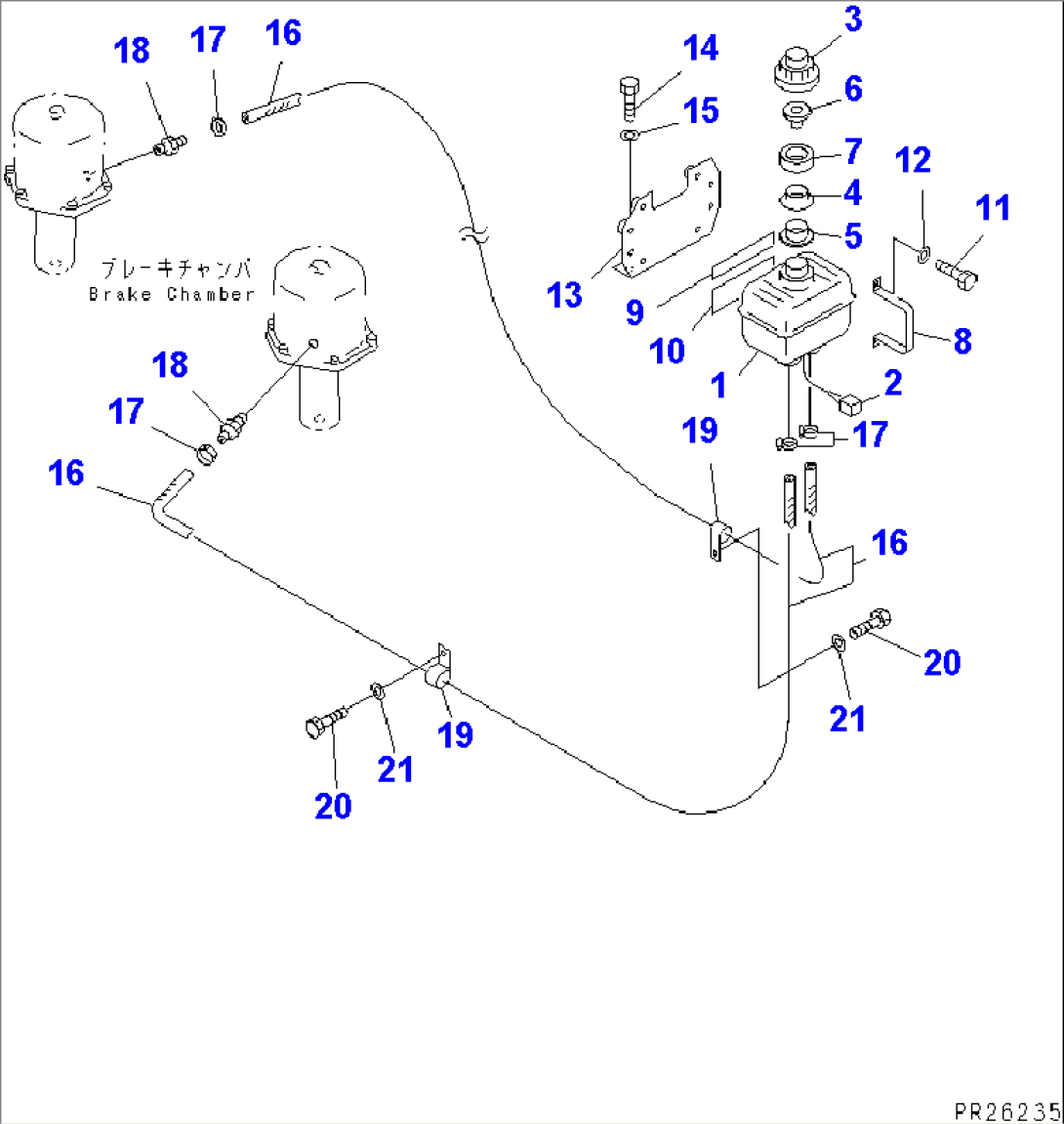

| Item | Part No. | Part Name | Qty | Serial No. |
| 569-35-61300 | OIL TANK ASS'Y | 4001- | ||
| 1 | 569-35-61310 | TANK ASS'Y | 4001- | |
| 2 | 569-06-61840 | SWITCH ASS'Y | 4001- | |
| 3 | 424-35-16740 | CAP | 4001- | |
| 4 | 424-35-16750 | HOLDER | 4001- | |
| 5 | 424-35-16760 | SEAL | 4001- | |
| 6 | 424-35-16770 | BAFFLE | 4001- | |
| 7 | 424-35-16780 | FILTER | 4001- | |
| 8 | 424-35-16810 | BRACKET | 4001- | |
| 9 | 424-35-16720 | SEAT | 4001- | |
| 10 | 424-35-16730 | SEAT | 4001- | |
| 11 | 01010-51225 | BOLT | 4001- | |
| 12 | 01643-31232 | WASHER | 4001- | |
| 13 | 569-35-62860 | COVER | 4407- | |
| 14 | 01010-81225 | BOLT | 4407- | |
| 15 | 01643-31232 | WASHER | 4001- | |
| 16 | 07260-21475 | HOSE | 4001- | |
| 17 | 07281-00259 | CLAMP | 4001- | |
| 18 | 425-35-11650 | NIPPLE | 4407- | |
| 19 | 08036-02514 | CLIP | 4407- | |
| 20 | 01010-81020 | BOLT | 4407- | |
| 21 | 01643-31032 | WASHER | 4407- |
