| Item | Part No. | Part Name | Qty | Serial No. |

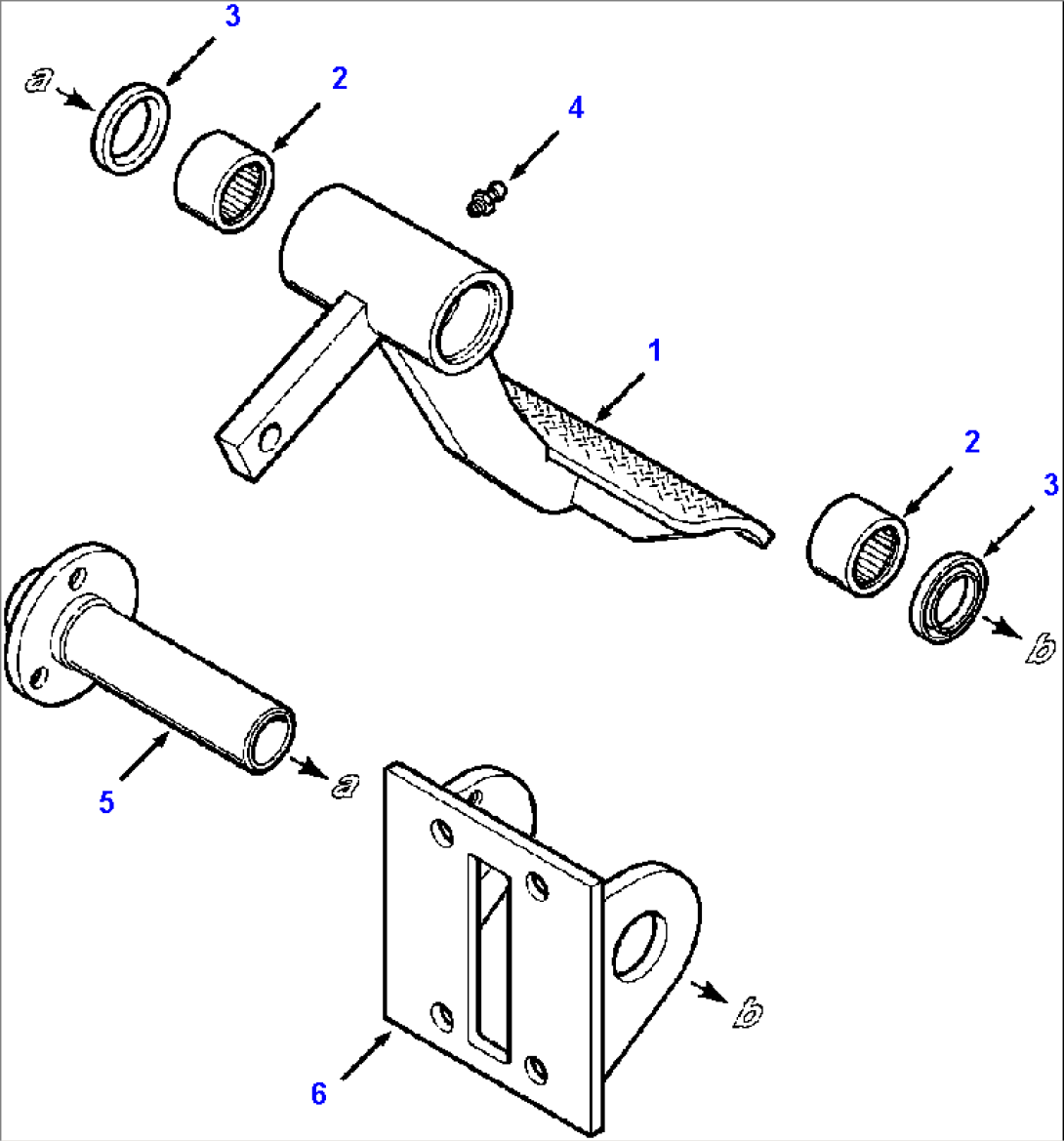

| 1303 862 H91 | PEDAL ASSY, BRAKE | |||
| 1 | (NSS) | PEDAL, BRAKE | ||
| 2 | 102 613 R91 | BEARING, NEEDLE | ||
| 3 | 1299 283 H1 | SEAL, BEARING | ||
| 4 | 109 454 | FITTING, LUBE | ||
| 5 | 1258 247 H91 | SHAFT, CROSS | ||
| 25 769 R1 | BOLT, HEX - 3/8NFx5/8 | |||
| 25 534 R1 | WASHER, FLAT - 3/8 | |||
| 6 | 1258 248 H91 | BRACKET, BRAKE PEDAL |
