| Item | Part No. | Part Name | Qty | Serial No. |

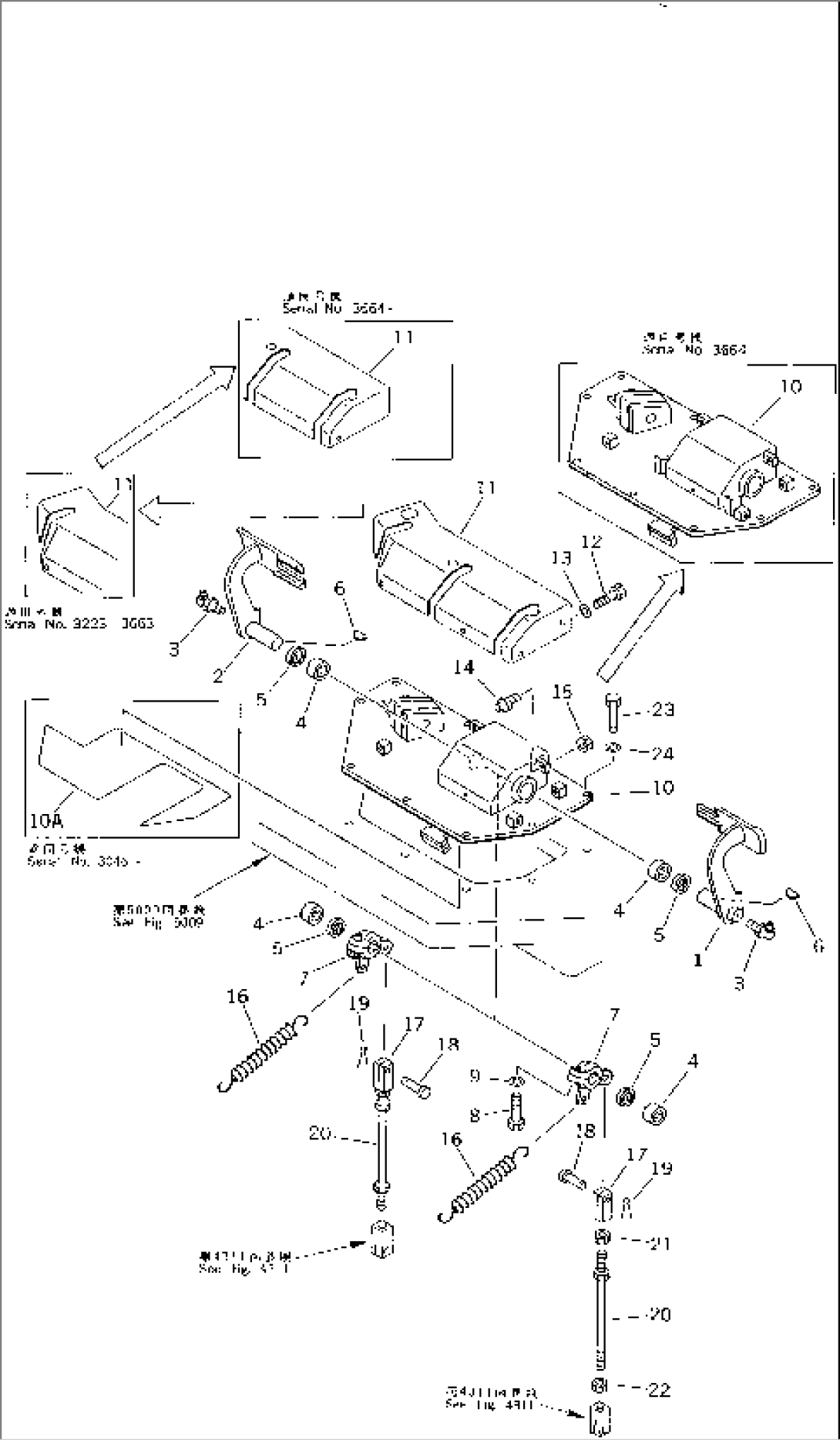

| G-1 | (\8\154-43-X1110) | BRAKE PEDAL GROUP | 3001- | |
| ==================== | ||||
| 1 | 154-43-41130 | PEDAL,L.H. | 3001- | |
| 2 | 154-43-41140 | PEDAL,R.H. | 3001- | |
| 3 | 07020-00900 | FITTING,GREASE | 3001- | |
| 4 | 06120-03520 | BEARING,NEEDLE | 3001- | |
| 5 | 06122-03504 | SEAL,BEARING | 3001- | |
| 6 | 04010-01032 | KEY | 3001- | |
| 7 | 154-43-41150 | LEVER | 3001- | |
| 8 | 01010-51245 | BOLT | 3001- | |
| 9 | 01602-21236 | WASHER,SPRING | 3001- | |
| 10 | 154-43-41281 | BRACKET | 3664- | |
| 10 | 154-43-41280 | BRACKET | 3046-3663 | |
| 10 | \0\154-43-41110 | BRACKET | 3001-3045 | |
| 10A | 154-54-42430 | SHEET | 3046- | |
| 11 | 154-43-41122 | COVER | 3664- | |
| 11 | 154-43-41121 | COVER | 3223-3663 | |
| 11 | 154-43-41120 | COVER | 3001-3222 | |
| 12 | 01010-51225 | BOLT | 3664- | |
| 12 | 01010-51225 | BOLT | 3001-3663 | |
| 13 | 01643-31232 | WASHER | 3664- | |
| 13 | 01643-31232 | WASHER | 3001-3663 | |
| 14 | 09311-41237 | BUMPER | 3001- | |
| 15 | 01580-11210 | NUT | 3001- | |
| 16 | 154-43-41260 | SPRING | 3001- | |
| 17 | 04210-21456 | YOKE | 3001- | |
| 18 | 04205-11438 | PIN | 3001- | |
| 19 | 04050-14028 | PIN,COTTER | 3001- | |
| ==================== | ||||
| 20 | 04248-31433 | ROD | 3001- | |
| 21 | 01582-11411 | NUT | 3001- | |
| 22 | 01508-41408 | NUT | 3001- | |
| 23 | 01010-51230 | BOLT | 3001- | |
| 24 | 01643-31232 | WASHER | 3001- |
