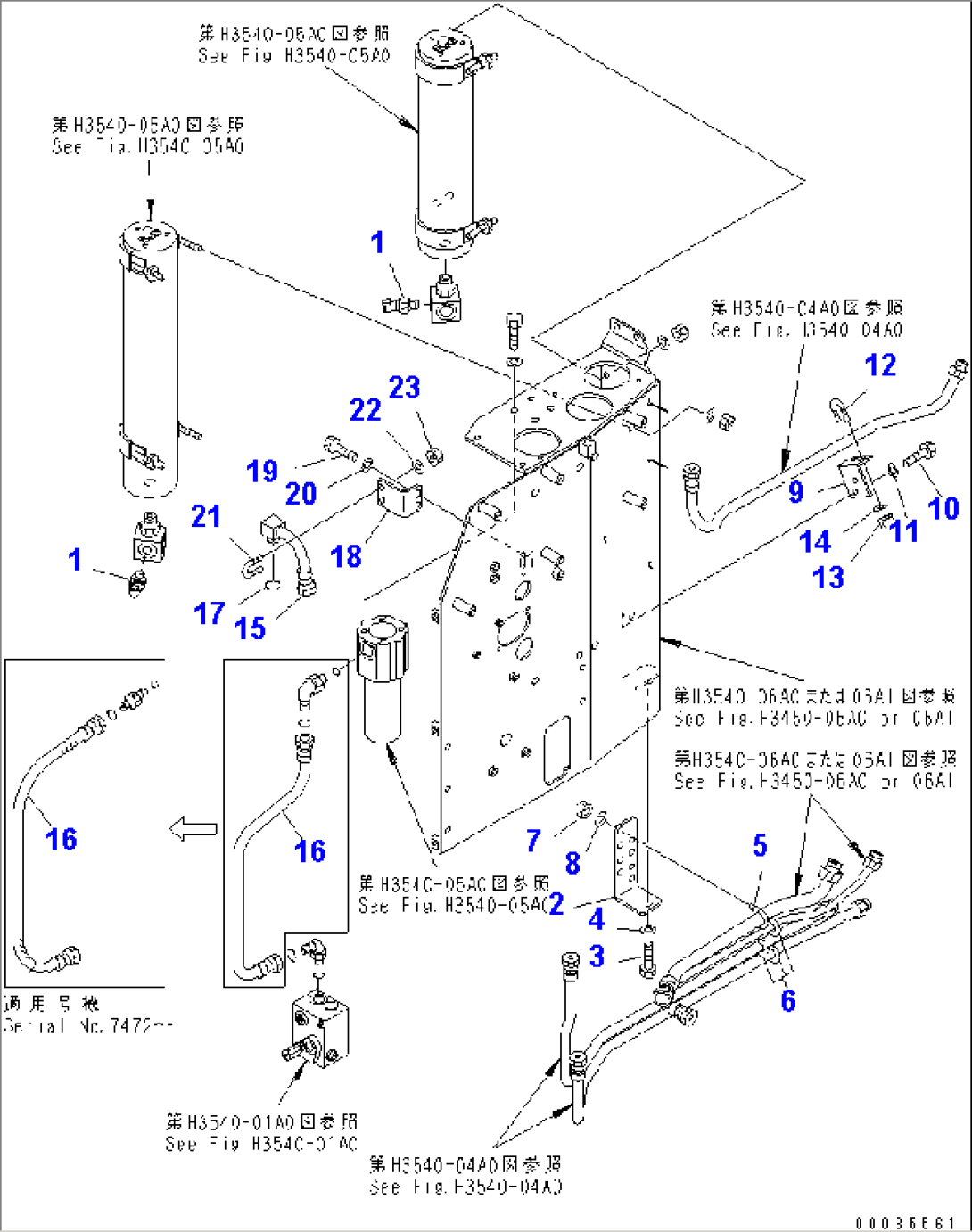

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 7861-93-1650 | SENSOR | 3001- | |
| 2 | 566-43-82520 | BRACKET | 3001- | |
| 3 | 01010-81225 | BOLT | 3001- | |
| 4 | 01643-31232 | WASHER | 3001- | |
| 5 | 07283-32738 | CLIP | 3001- | |
| 6 | 07283-32236 | CLIP | 3001- | |
| 7 | 01597-01009 | NUT | 3001- | |
| 8 | 01643-31032 | WASHER | 3001- | |
| 9 | 566-43-82530 | PLATE | 3001- | |
| 10 | 01010-81025 | BOLT | 3001- | |
| 11 | 01643-31032 | WASHER | 3001- | |
| 12 | 07283-32236 | CLIP | 3001- | |
| 13 | 01597-01009 | NUT | 3001- | |
| 14 | 01643-31032 | WASHER | 3001- | |
| 15 | 566-43-82221 | TUBE | 3001- | |
| 16 | 02767-00508 | HOSE | 7472- | |
| 16 | 566-43-82661 | TUBE | 3001-7471 | |
| 17 | 02896-21015 | O-RING | 3001- | |
| 18 | 566-43-82431 | PLATE | 3001- | |
| 19 | 01010-81020 | BOLT | 3001- | |
| 20 | 01643-31032 | WASHER | 3001- | |
| 21 | 07283-32236 | CLIP | 3001- | |
| 22 | 01643-31032 | WASHER | 3001- | |
| 23 | 01597-01009 | NUT | 3001- |
