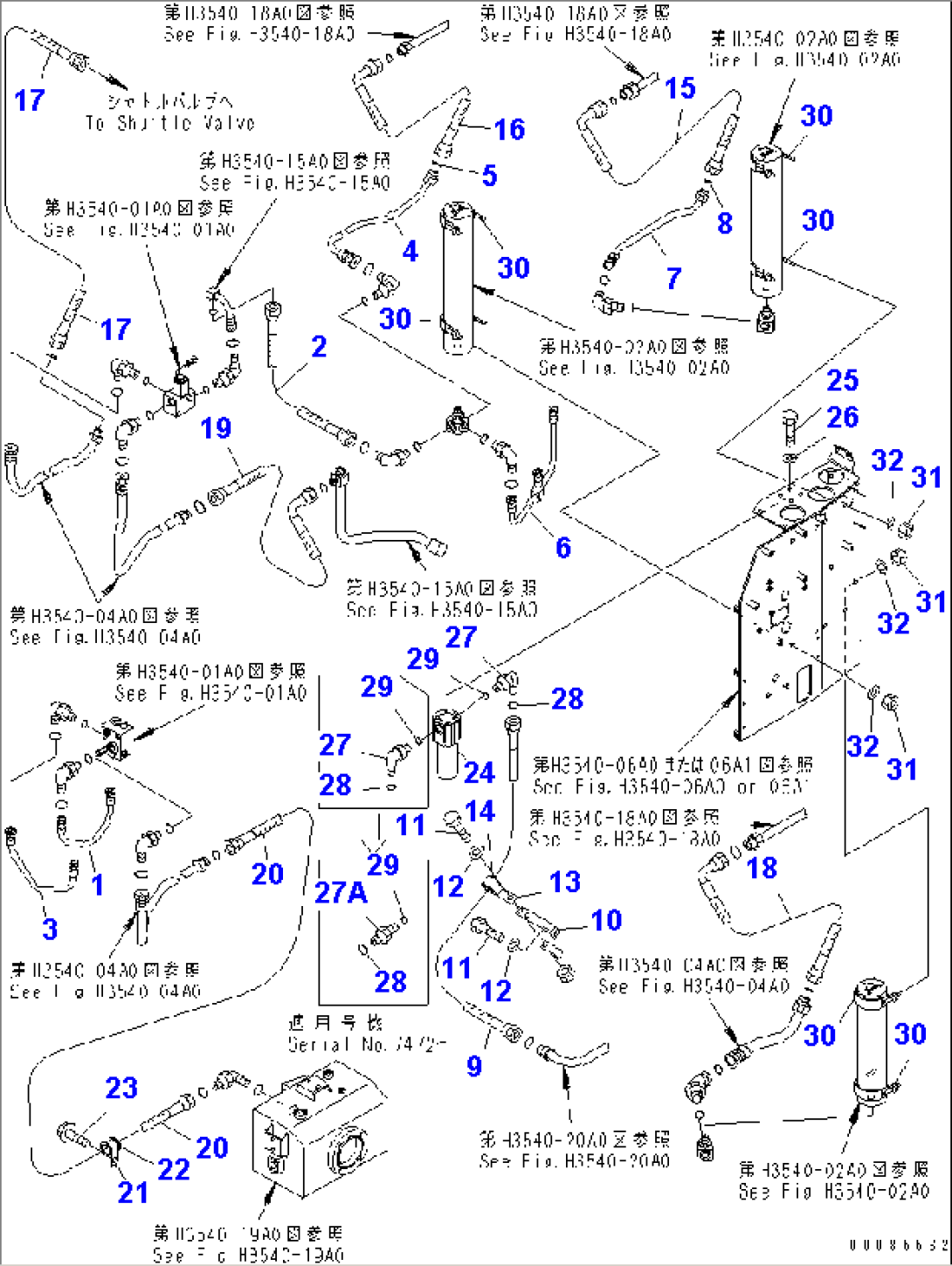

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-43-82670 | TUBE | 3001- | |
| 2 | 02766-005A4 | HOSE | 3001- | |
| 3 | 566-43-82680 | TUBE | 3001- | |
| 4 | 566-43-82321 | TUBE | 3001- | |
| 5 | 02896-21015 | O-RING | 3001- | |
| 6 | 566-43-82290 | TUBE | 3001- | |
| 7 | 566-43-82442 | TUBE | 3001- | |
| 8 | 02896-21018 | O-RING | 3001- | |
| 9 | 02765-00508 | HOSE | 3001- | |
| 10 | 56D-80-11880 | BRACKET | 3001- | |
| 11 | 01010-81020 | BOLT | 3001- | |
| 12 | 01643-31032 | WASHER | 3001- | |
| 13 | 04434-53412 | CLIP | 3001- | |
| 14 | 07095-20627 | CUSHION | 3001- | |
| 15 | 02766-006A5 | HOSE | 3001- | |
| 16 | 02766-00506 | HOSE | 3001- | |
| 17 | 02767-00504 | HOSE | 3001- | |
| 18 | 02766-006A4 | HOSE | 3001- | |
| 19 | 02763-005A5 | HOSE | 3001- | |
| 20 | 02764-005A9 | HOSE | 3001- | |
| 21 | 04434-53212 | CLIP | 3001- | |
| 22 | 07095-20522 | CUSHION | 3001- | |
| 23 | 01435-01016 | BOLT | 3001- | |
| 24 | (569-43-83910) | FILTER ASS'Y | 3001- | |
| 25 | 01010-81030 | BOLT | 3001- | |
| 26 | 01643-31032 | WASHER | 3001- | |
| 27 | 56B-43-17360 | ELBOW | 7472- | |
| 27 | 56B-43-17360 | ELBOW | 3001-7471 | |
| 27A | 56B-43-17781 | NIPPLE | 7472- | |
| 28 | 22W-62-13420 | O-RING | 3001- | |
| 29 | 02896-21015 | O-RING | 3001- | |
| 30 | 566-43-84280 | BAND | 7135- | |
| 30 | \0\569-43-84280 | BAND | 3001-7134 | |
| 31 | 421-40-12440 | NUT | 3001- | |
| 32 | 01643-31232 | WASHER | 3001- |
