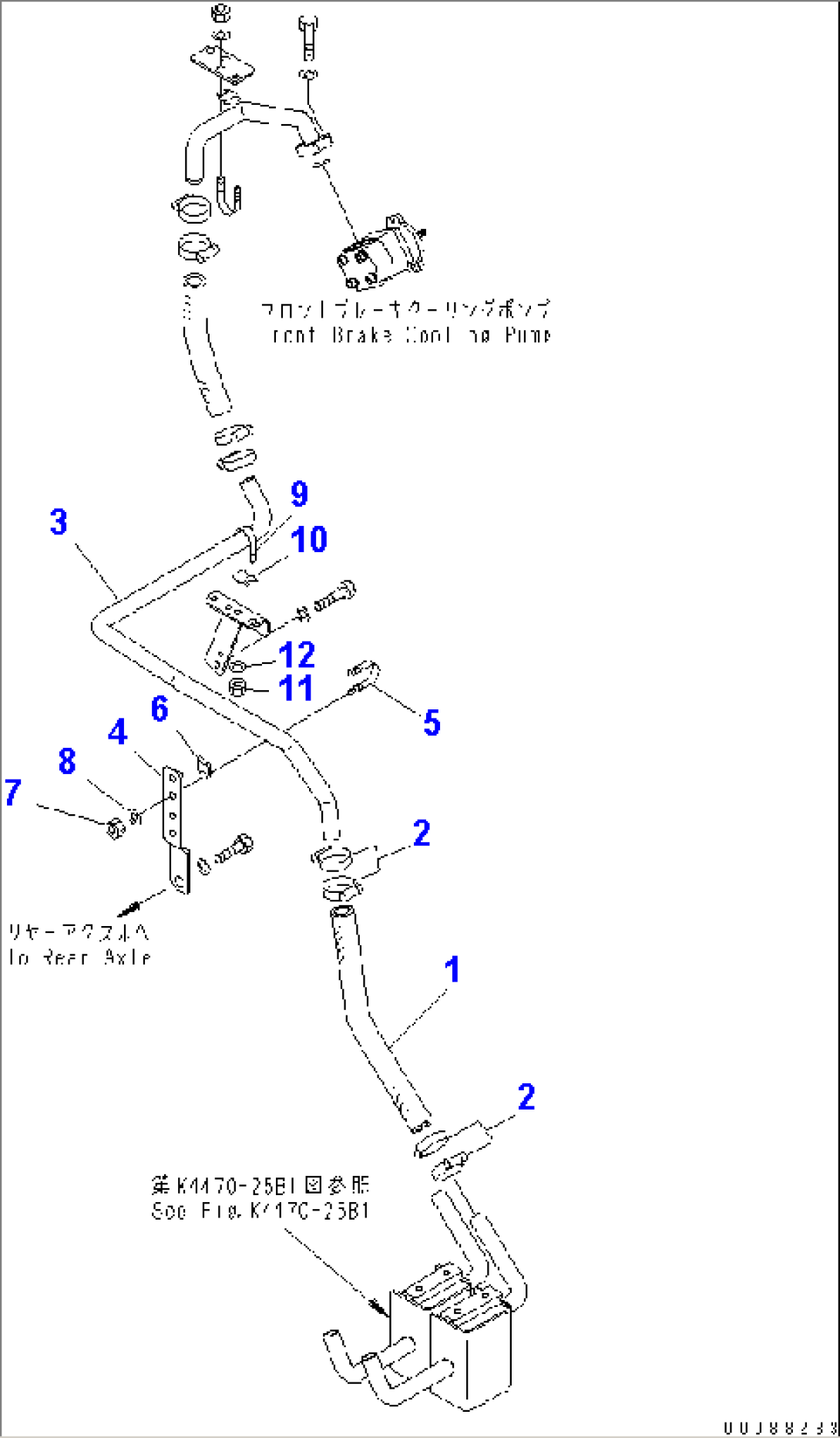

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07260-43245 | HOSE | 60002-@ | |
| 2 | 07289-00045 | CLAMP | 60002-@ | |
| 3 | 427-S05-5971 | TUBE | 60002-60070 | |
| 4 | 427-S05-6250 | PLATE | 60002-@ | |
| 5 | 07283-33450 | CLIP | 60002-@ | |
| 6 | 07283-53444 | SEAT | 60002-@ | |
| 7 | 01597-01009 | NUT | 60002-@ | |
| 8 | 01643-31032 | WASHER | 60002-@ | |
| 9 | 07283-33450 | CLIP | 60002-@ | |
| 10 | 07283-53444 | SEAT | 60002-@ | |
| 11 | 01597-01009 | NUT | 60002-@ | |
| 12 | 01643-31032 | WASHER | 60002-@ |
