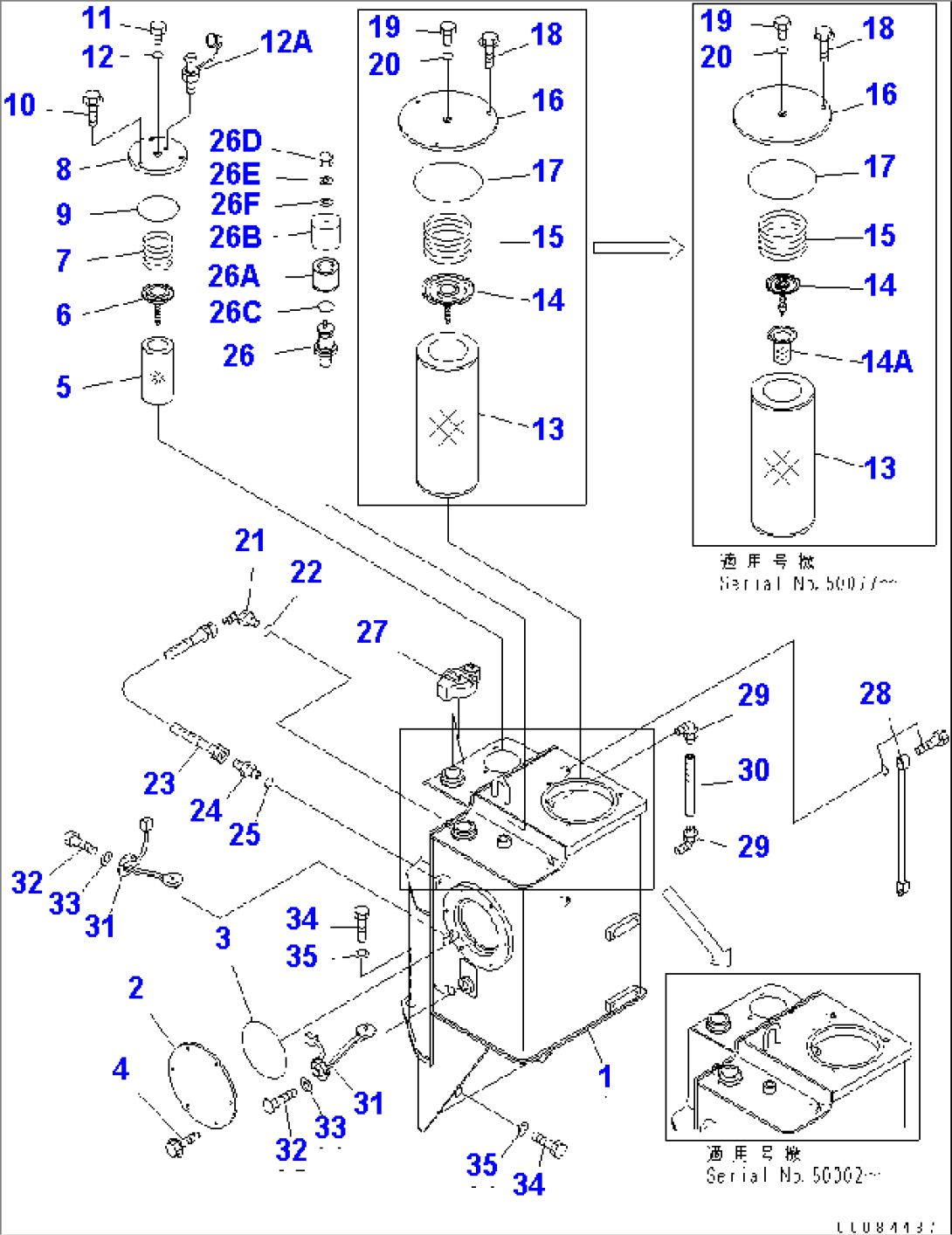

BRAKE PIPING (BRAKE OIL TANK AND RERATED PARTS)(#50001-50087)

BRAKE PIPING (BRAKE OIL TANK AND RERATED PARTS)(#50001-50087)
ItemPart No.Part NameQtySerial No.
142C-43-17164TANK,BRAKE OIL50013-50087
142C-43-17163TANK,BRAKE OIL50001-50012
1(\2\42C-43-17162)TANK,BRAKE OIL(50001-50001)
2428-04-11120COVER50001-@
307000-15200O-RING50001-50087
401435-01025BOLT50001-@
507063-01035ELEMENT50001-@
6417-60-15130VALVE ASS'Y50001-@
7125-62-21170SPRING50001-@
842C-43-17172COVER50001-@
907000-12115O-RING50001-50087
1001435-01230BOLT50001-@
11424-60-15150PLUG50001-@
1207000-12010O-RING50001-50087
12A195-49-36120NIPPLE50080-@
12A799-101-5160NIPPLE50001-50087
13208-60-61180ELEMENT50001-@
1442C-60-15610VALVE ASS'Y50077-@
14419-60-25410VALVE ASS'Y50001-50076
14A07069-25400STRAINER50077-@
15195-60-16330SPRING50001-@
16425-60-25120COVER50001-@
1707000-15210O-RING50001-50087
1801435-01230BOLT50001-@
19424-60-15150PLUG50001-@
2007000-12010O-RING50001-50087
2107235-10210ELBOW50001-@
2207002-21423O-RING50001-@
2307102-20203HOSE50001-@
24203-62-62810NIPPLE50001-@
2507002-21423O-RING50001-@
566-60-15361BREATHER50001-@
26419-60-15240BODY50001-@
26A419-60-15250ELEMENT50001-@
26B419-60-15260COVER50001-@
26C419-60-15270O-RING50001-@
26D419-60-15280NUT50001-@
26E419-60-15290WASHER50001-@
26F419-60-15310WASHER50001-@
2707092-01000CAP50001-@
28427-16-11610GAUGE,SIGHT50001-50087
29208-04-19130ELBOW50001-50087
3042C-43-17390TUBE50002-50087
30569-03-61940TUBE50001-50001
317861-93-4210SENSOR,OIL LEVEL50001-@
3201010-80612BOLT50001-@
3301640-20610WASHER.-@
3301641-20608WASHER50001-.
3401010-62450BOLT50001-@
3501643-32460WASHER50001-@
