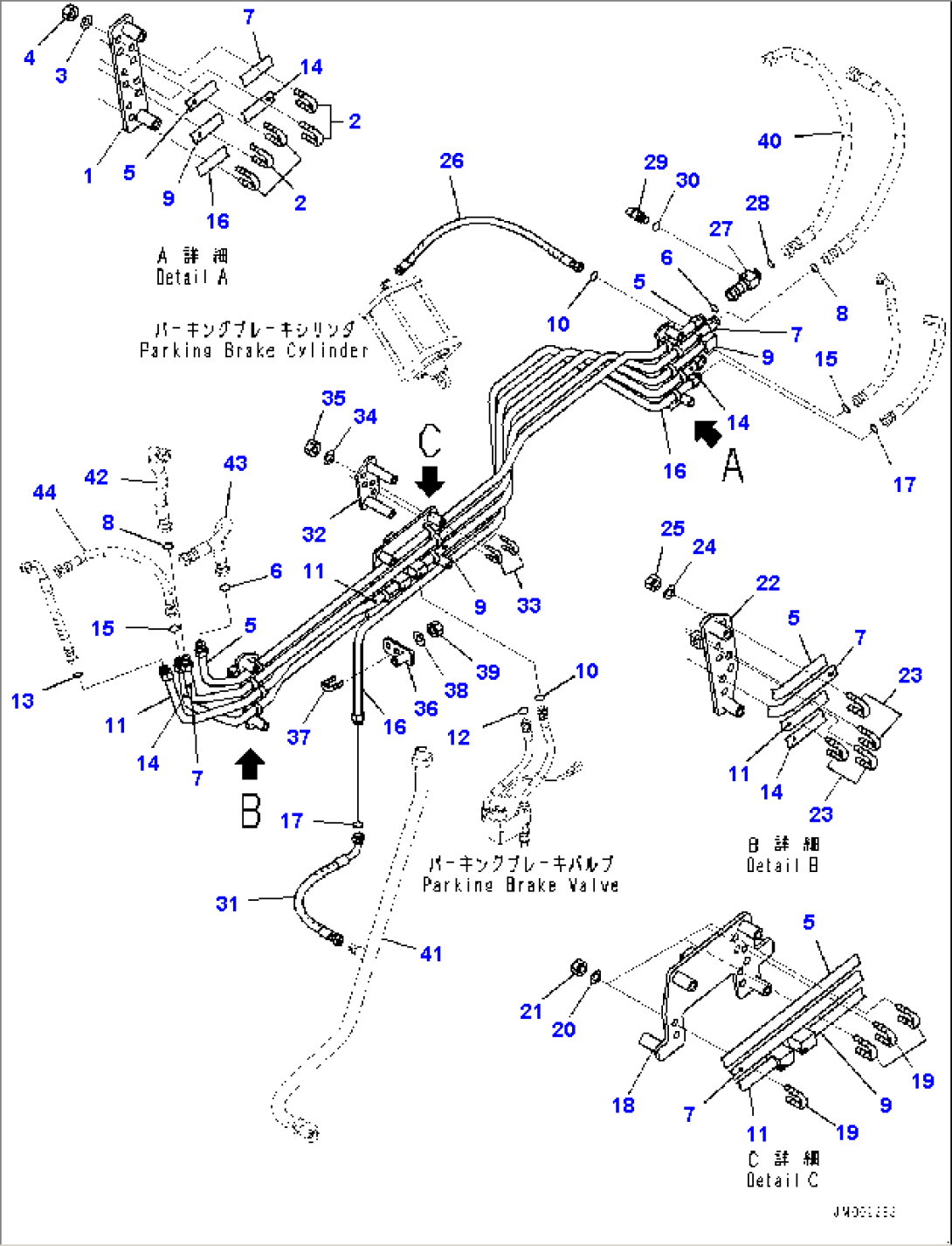

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-88-8L131 | Bracket | 50001- | |
| 2 | 07283-32236 | Clip, Pipe | 50001- | |
| 3 | 01643-31032 | Washer | 50001- | |
| 4 | 22P-70-12160 | Nut | 50001- | |
| 5 | 566-43-8L230 | Tube | 50001- | |
| 6 | 02896-21015 | O-ring | 50001- | |
| 7 | 566-43-8L271 | Tube | 50001- | |
| 8 | 02896-21015 | O-ring | 50001- | |
| 9 | 566-43-8L250 | Tube | 50001- | |
| 10 | 02896-21009 | O-ring | 50001- | |
| 11 | 566-43-8L350 | Tube | 50001- | |
| 12 | 02896-21009 | O-ring | 50001- | |
| 13 | 02896-21012 | O-ring | 50001- | |
| 14 | 566-88-8L110 | Tube | 50001- | |
| 15 | 02896-21012 | O-ring | 50001- | |
| 16 | 566-88-8L120 | Tube | 50001- | |
| 17 | 02896-21012 | O-ring | 50001- | |
| 18 | 566-43-8L120 | Bracket | 50001- | |
| 19 | 07283-32236 | Clip, Pipe | 50001- | |
| 20 | 01643-31032 | Washer | 50001- | |
| 21 | 22P-70-12160 | Nut | 50001- | |
| 22 | 566-88-8L141 | Bracket | 50001- | |
| 23 | 07283-32236 | Clip, Pipe | 50001- | |
| 24 | 01643-31032 | Washer | 50001- | |
| 25 | 22P-70-12160 | Nut | 50001- | |
| 26 | 02765-003A6 | Hose, Face Seal Type | 50001- | |
| 27 | 134-62-72650 | Joint | 50001- | |
| 28 | 02896-21015 | O-ring | 50001- | |
| 29 | 7861-93-1870 | Sensor, Pressure | 50001- | |
| 30 | 07002-61823 | O-ring | 50001- | |
| 31 | 02766-00405 | Hose, Face Seal Type | 50001- | |
| 32 | 566-88-8L311 | Bracket | 50001- | |
| 33 | 07283-32236 | Clip, Pipe | 50001- | |
| 34 | 01643-31032 | Washer | 50001- | |
| 35 | 22P-70-12160 | Nut | 50001- | |
| 36 | 566-88-8L321 | Bracket | 50001- | |
| 37 | 07283-32236 | Clip, Pipe | 50001- | |
| 38 | 01643-31032 | Washer | 50001- | |
| 39 | 22P-70-12160 | Nut | 50001- | |
| 40 | (02766-005A8) | Hose, Face Seal Type | - | |
| 41 | (566-43-8L531) | Tube | - | |
| 42 | (02766-005A3) | Hose, Face Seal Type | - | |
| 43 | (02765-00505) | Hose, Face Seal Type | - | |
| 44 | (02765-004A4) | Hose, Face Seal Type | - |
