| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 419-43-17390 | TEE | 50001- | |
| 2 | 418-43-17140 | TUBE | 50001- | |
| 3 | 418-43-27340 | TUBE | 50001- | |
| 4 | 419-43-17420 | NIPPLE | 50001- | |
| 5 | 07002-11223 | O-RING | 50001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa250pt 3 s/n 50001 up (parallel linkage spec.)
- Operator's compartment and control system
- Brake piping (front brake line)
Поиск по каталогу

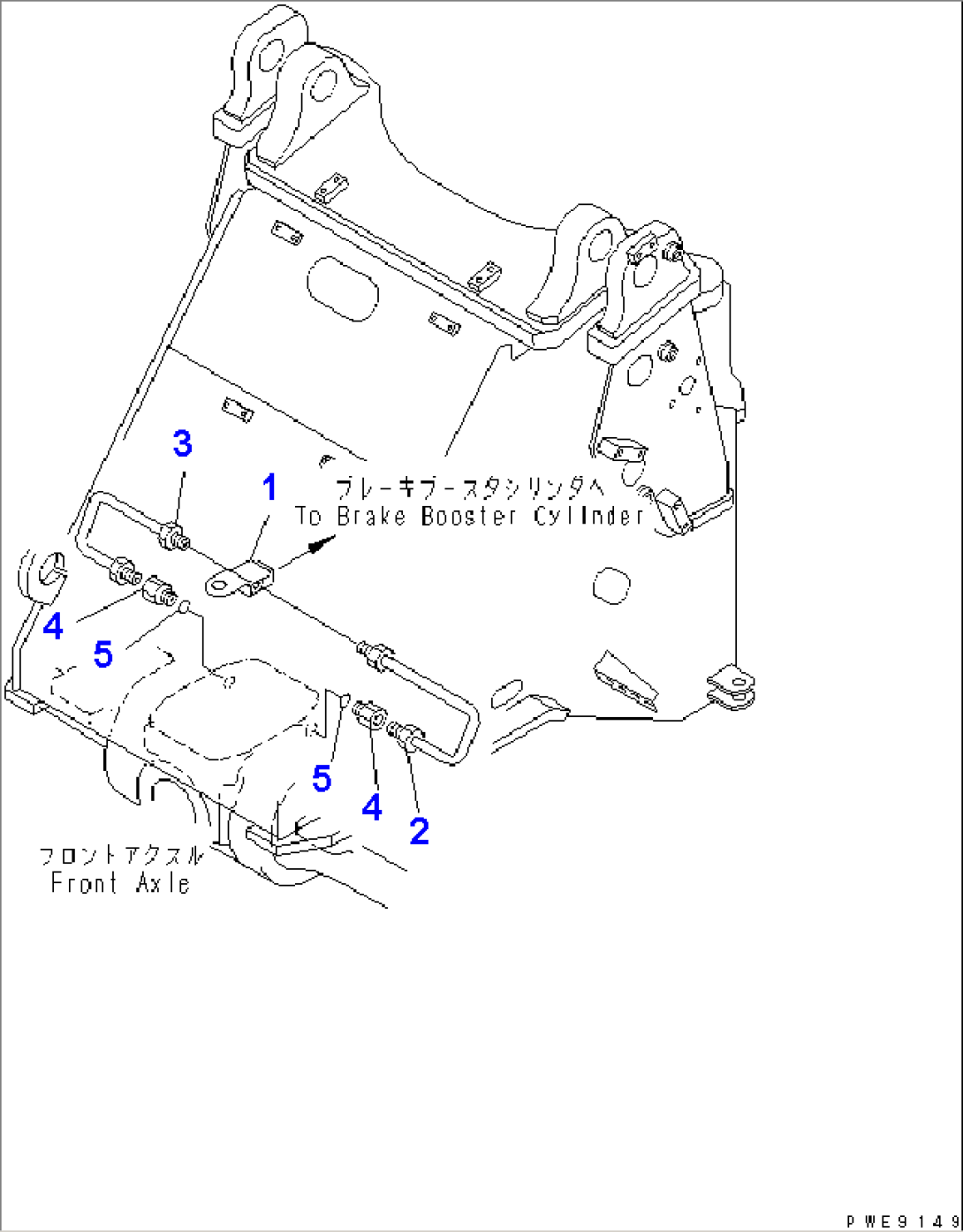

BRAKE PIPING (FRONT BRAKE LINE)
