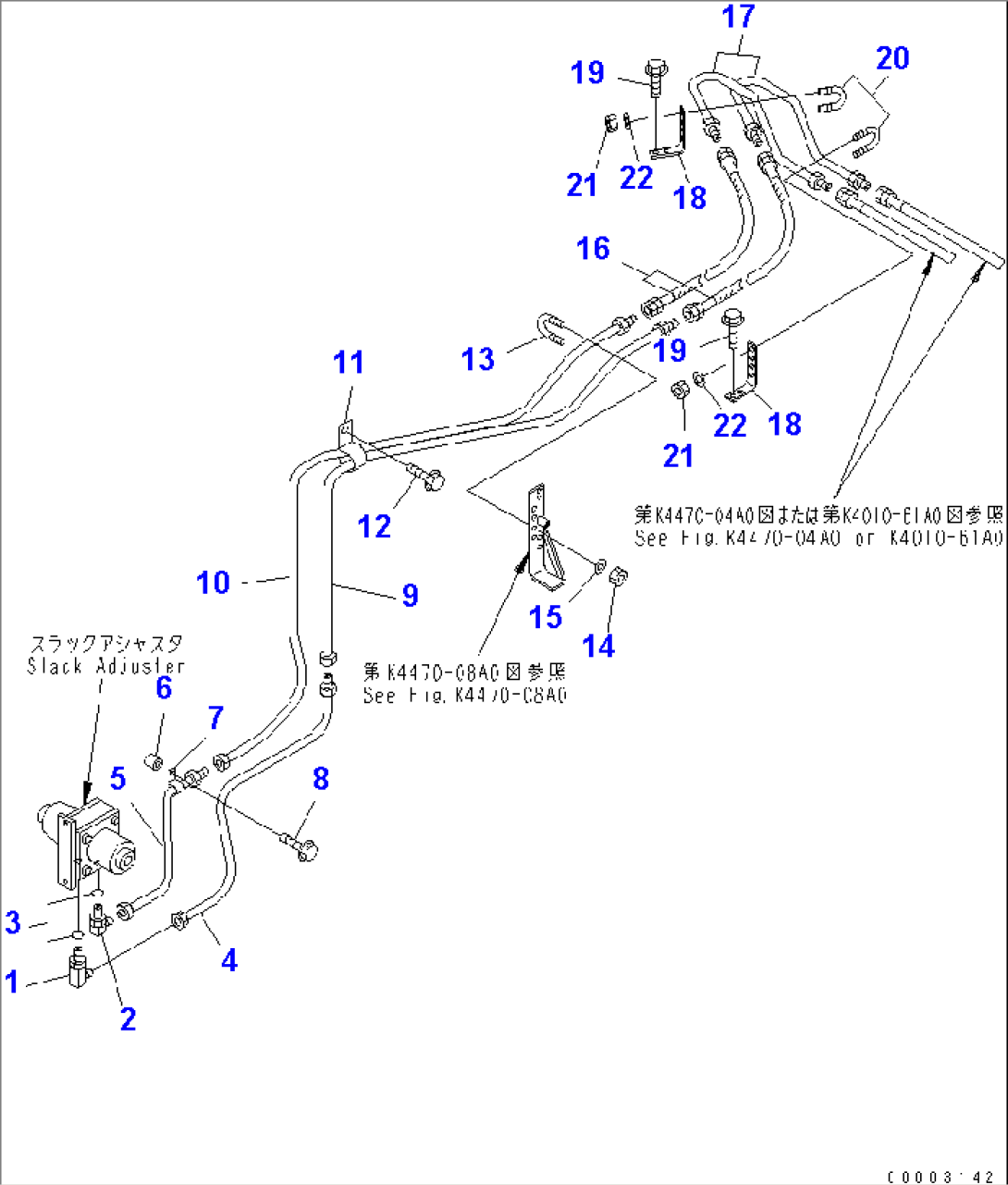

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-35-13420 | ELBOW | 50001- | |
| 2 | 07235-10422 | ELBOW | 50001- | |
| 3 | 07002-12034 | O-RING | 50001- | |
| 4 | 427-35-11723 | TUBE | 50001- | |
| 5 | 427-35-13381 | TUBE | 50001- | |
| 6 | 417-54-15541 | SPACER | 50001- | |
| 7 | 04434-52110 | CLIP | 50001- | |
| 8 | 01435-01060 | BOLT | 50001- | |
| 9 | 427-43-27130 | TUBE | 50001- | |
| 10 | 427-43-27140 | TUBE | 50001- | |
| 11 | 04435-52110 | CLIP | 50001- | |
| 12 | 01435-01016 | BOLT | 50001- | |
| 13 | 07283-32236 | CLIP | 50001- | |
| 14 | 01597-01009 | NUT | 50001- | |
| 15 | 01643-31032 | WASHER | 50001- | |
| 16 | 07108-20407 | HOSE | 50001- | |
| 17 | 427-43-27350 | TUBE | 50001- | |
| 18 | 427-43-27481 | BRACKET | 50001- | |
| 19 | 01435-01225 | BOLT | 50001- | |
| 20 | 07283-32236 | CLIP | 50001- | |
| 21 | 01597-01009 | NUT | 50001- | |
| 22 | 01643-31032 | WASHER | 50001- |
