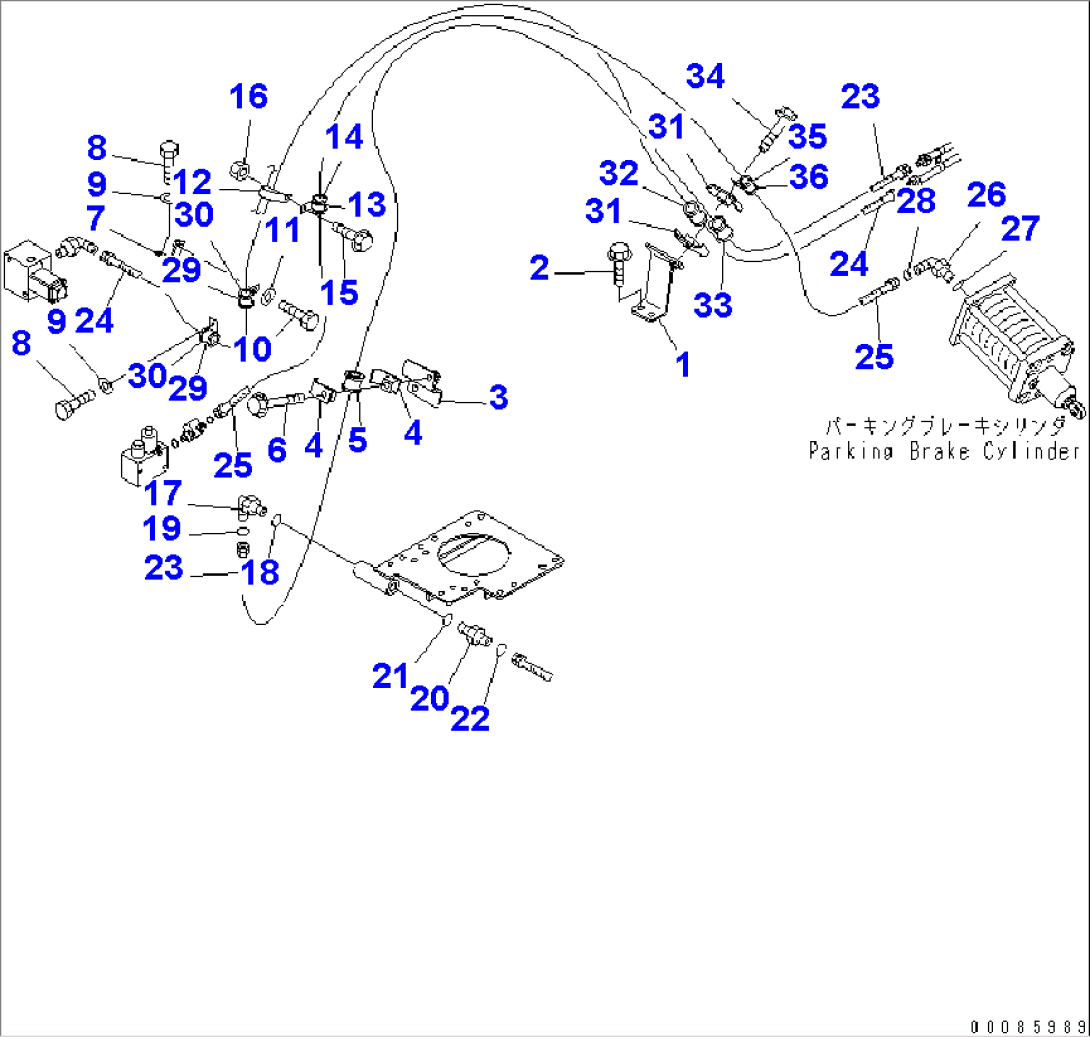

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56C-61-12292 | BRACKET | 7001- | |
| 2 | 01435-01030 | BOLT | 7001- | |
| 3 | 56B-61-12730 | BRACKET | 7001- | |
| 4 | 07094-10417 | CLAMP | 7001- | |
| 5 | 07095-00523 | CUSHION | 7001- | |
| 6 | 01435-01065 | BOLT | 7001- | |
| 7 | 427-43-11370 | BRACKET | 7001-7019 | |
| 8 | 01010-81025 | BOLT | 7020- | |
| 8 | 01010-81025 | BOLT | 7001-7019 | |
| 9 | 01643-31032 | WASHER | 7020- | |
| 9 | 01643-31032 | WASHER | 7001-7019 | |
| 10 | 01010-81020 | BOLT | 7001- | |
| 11 | 01643-31032 | WASHER | 7001- | |
| 12 | 419-09-11150 | CLIP | 7001- | |
| 13 | 04434-52512 | CLIP | 7001- | |
| 14 | 07095-20418 | CUSHION | 7001- | |
| 15 | 01435-01016 | BOLT | 7001- | |
| 16 | 01580-01008 | NUT | 7001- | |
| 17 | 11Y-62-12320 | ELBOW | 7001- | |
| 18 | 07002-22434 | O-RING | 7001- | |
| 19 | 02896-21015 | O-RING | 7001- | |
| 20 | 02781-00516 | UNION | 7001- | |
| 21 | 07002-22034 | O-RING | 7001- | |
| 22 | 02896-21015 | O-RING | 7001- | |
| 23 | 02765-B0533 | HOSE | 7001- | |
| 24 | 02765-B0432 | HOSE | 7001- | |
| 25 | 02765-B0330 | HOSE | 7001- | |
| 26 | 21W-62-42510 | ELBOW | 7001- | |
| 27 | 07002-22034 | O-RING | 7001- | |
| 28 | 02896-21009 | O-RING | 7001- | |
| 29 | 04434-52511 | CLIP | 7001- | |
| 30 | 07095-00318 | CUSHION | 7001- | |
| 31 | 07094-30417 | CLAMP | 7001- | |
| 32 | 07095-00420 | CUSHION | 7001- | |
| 33 | 07095-00423 | CUSHION | 7001- | |
| 34 | 01435-01265 | BOLT | 7001- | |
| 35 | 04434-52511 | CLIP | 7001- | |
| 36 | 07095-20418 | CUSHION | 7001- |
