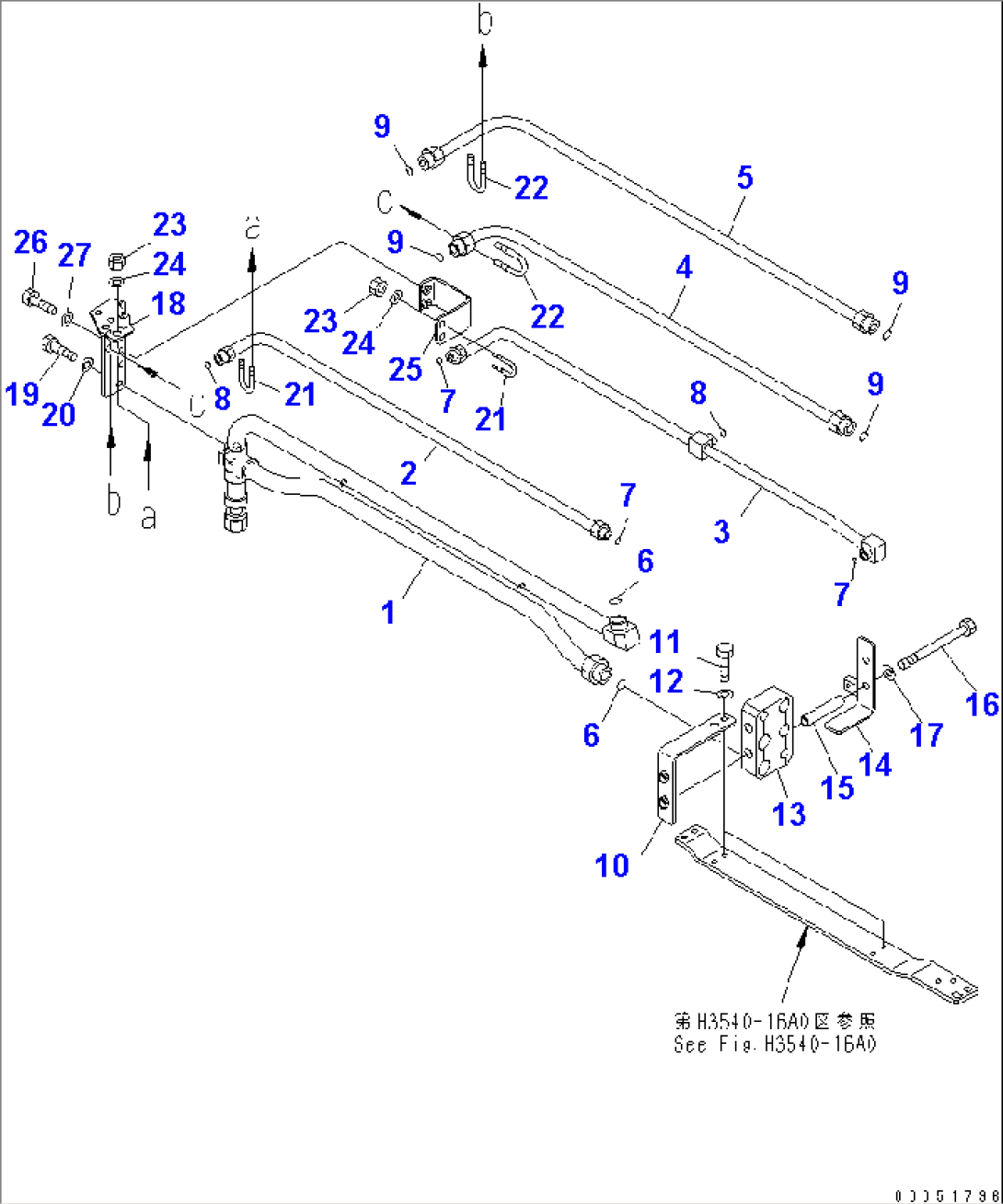

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-43-83111 | TUBE | 3001- | |
| 2 | 566-43-83120 | TUBE | 3001- | |
| 3 | 566-43-83141 | TUBE | 3001- | |
| 4 | 566-43-83151 | TUBE | 3001- | |
| 5 | 566-43-83161 | TUBE | 3001- | |
| 6 | 207-62-64740 | O-RING | 3001- | |
| 7 | 02896-21012 | O-RING | 3001- | |
| 8 | 02896-21015 | O-RING | 3001- | |
| 9 | 02896-21018 | O-RING | 3001- | |
| 10 | 566-43-83760 | BRACKET | 3001- | |
| 11 | 01010-81030 | BOLT | 3001- | |
| 12 | 01643-31032 | WASHER | 3001- | |
| 13 | 566-43-83780 | CLAMP | 3001- | |
| 14 | 566-43-83770 | BRACKET | 3001- | |
| 15 | 566-43-83790 | SPACER | 3001- | |
| 16 | 01011-81235 | BOLT | 3001- | |
| 17 | 01643-31232 | WASHER | 3001- | |
| 18 | 566-43-83741 | BRACKET | 3001- | |
| 19 | 01010-81025 | BOLT | 3001- | |
| 20 | 01643-31032 | WASHER | 3001- | |
| 21 | 07283-32236 | CLIP | 3001- | |
| 22 | 07283-32738 | CLIP | 3001- | |
| 23 | 01597-01009 | NUT | 3001- | |
| 24 | 01643-31032 | WASHER | 3001- | |
| 25 | 566-43-83620 | BRACKET | 3001- | |
| 26 | 01010-81025 | BOLT | 3001- | |
| 27 | 01643-31032 | WASHER | 3001- |
