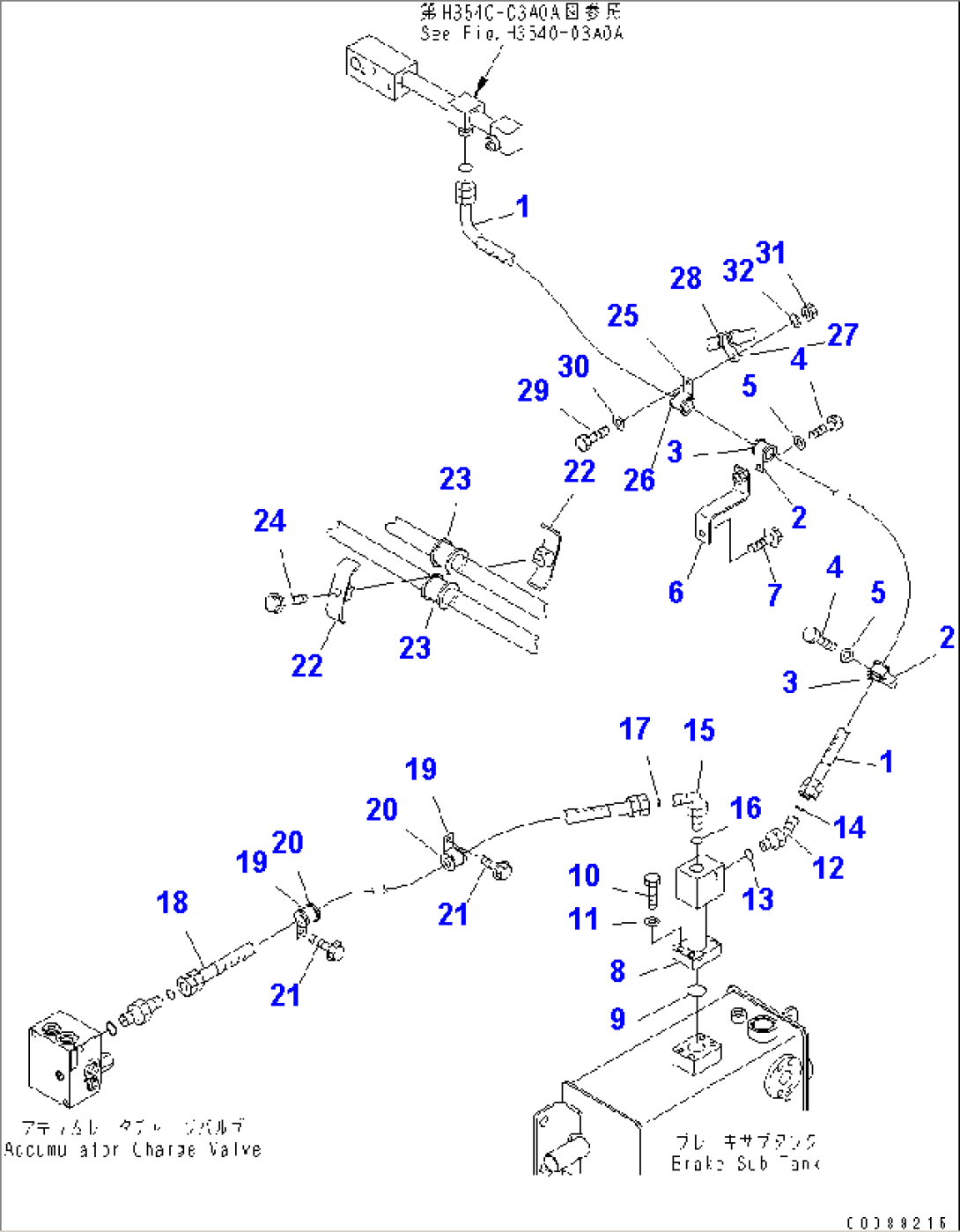

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02763-00613 | HOSE | 2001- | |
| 2 | 04434-53411 | CLIP | 2001- | |
| 3 | 07095-20627 | CUSHION | 2001- | |
| 4 | 01010-81020 | BOLT | 2001- | |
| 5 | 01643-31032 | WASHER | 2001- | |
| 6 | 56D-43-17910 | BRACKET | 2001- | |
| 7 | 01435-01020 | BOLT | 2001- | |
| 8 | 56D-43-17792 | TUBE | 2097- | |
| 9 | 07000-F3032 | O-RING | 2001- | |
| 10 | 07372-21040 | BOLT | 2001- | |
| 11 | 01643-51032 | WASHER | 2001- | |
| 12 | 02783-10628 | ELBOW | 2001- | |
| 13 | 07002-22434 | O-RING | 2001- | |
| 14 | 02896-21018 | O-RING | 2001- | |
| 15 | 02782-10522 | ELBOW | 2001- | |
| 16 | 07002-22434 | O-RING | 2001- | |
| 17 | 02896-21015 | O-RING | 2001- | |
| 18 | 02762-00511 | HOSE | 2001- | |
| 19 | 04434-53211 | CLIP | 2001- | |
| 20 | 07095-20523 | CUSHION | 2001- | |
| 21 | 01435-01016 | BOLT | 2001- | |
| 22 | 07094-30620 | CLAMP | 2001- | |
| 23 | 07095-00630 | CUSHION | 2001- | |
| 24 | 01435-01265 | BOLT | 2001- | |
| 25 | 04434-53411 | CLIP | 2785- | |
| 26 | 07095-20627 | CUSHION | 2785- | |
| 27 | 04434-52711 | CLIP | 2785- | |
| 28 | 07095-20420 | CUSHION | 2785- | |
| 29 | 01010-81020 | BOLT | 2785- | |
| 30 | 01643-31032 | WASHER | 2785- | |
| 31 | 01580-01008 | NUT | 2785- | |
| 32 | 01643-31032 | WASHER | 2785- |
