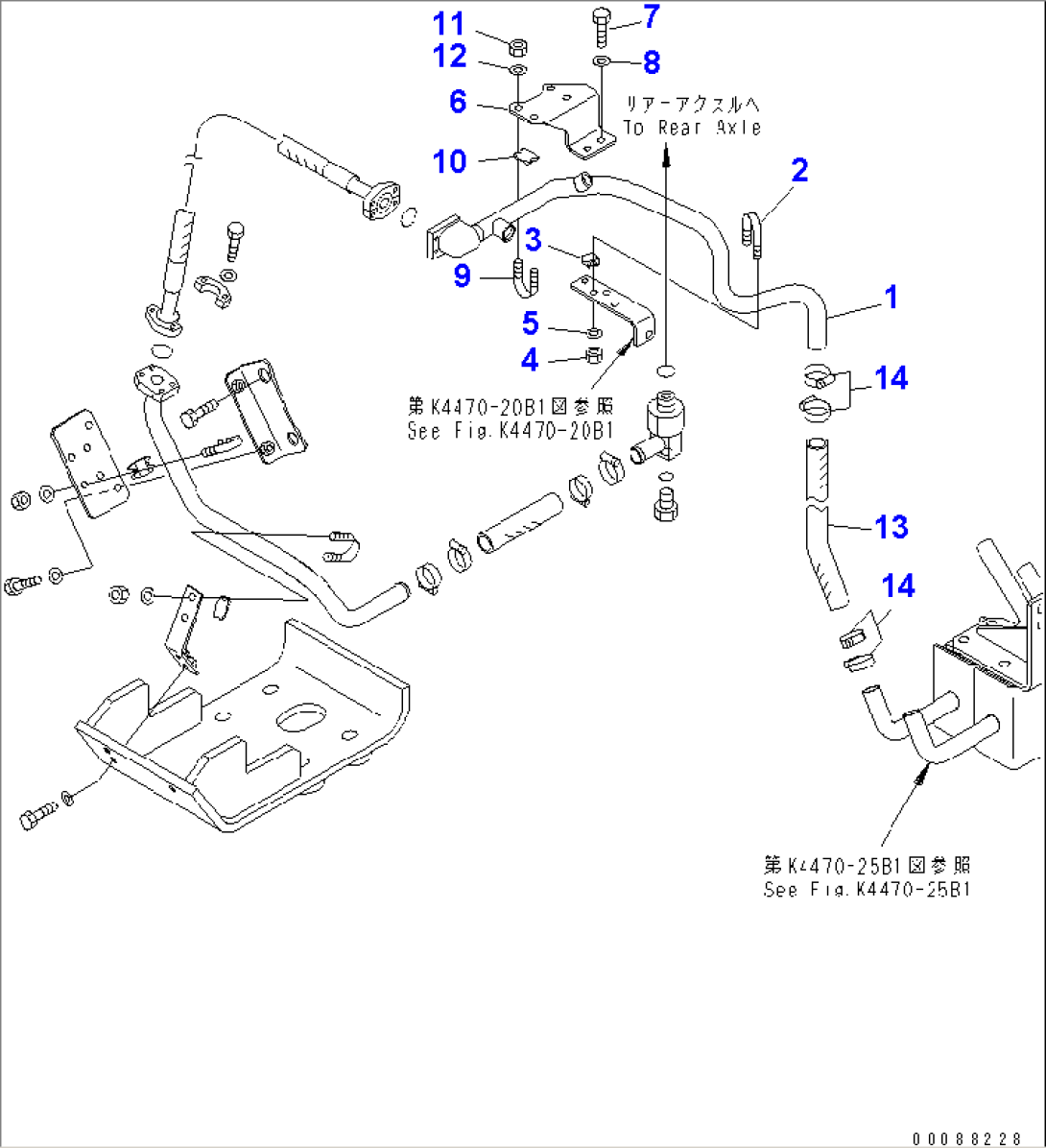

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-S05-5730 | TUBE | 60002- | |
| 2 | 07283-33450 | CLIP | 60002- | |
| 3 | 07283-53444 | SEAT | 60002- | |
| 4 | 01597-01009 | NUT | 60002- | |
| 5 | 01643-31032 | WASHER | 60002- | |
| 6 | 427-S05-5710 | BRACKET | 60002- | |
| 7 | 01010-81225 | BOLT | 60002- | |
| 8 | 01643-31232 | WASHER | 60002- | |
| 9 | 07283-33450 | CLIP | 60002- | |
| 10 | 07283-53444 | SEAT | 60002- | |
| 11 | 01597-01009 | NUT | 60002- | |
| 12 | 01643-31032 | WASHER | 60002- | |
| 13 | 07260-03240 | HOSE | 60002- | |
| 14 | 07289-00045 | CLAMP | 60002- |
