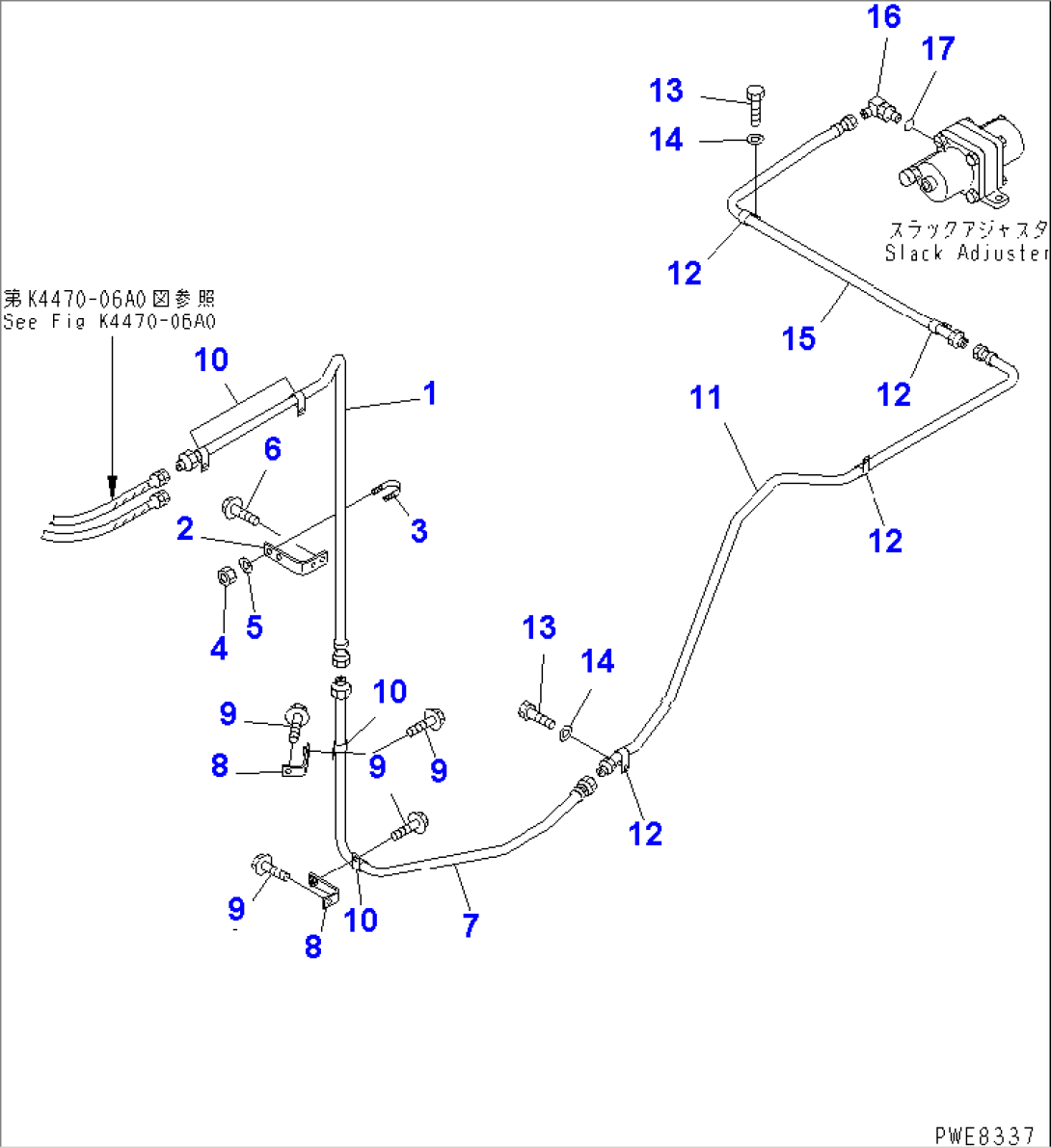

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-43-27232 | TUBE | 50002- | |
| 1 | \0\428-43-27231 | TUBE | 50001-50001 | |
| 2 | 428-43-27170 | BRACKET | 50001- | |
| 3 | 07283-32236 | CLIP | 50001- | |
| 4 | 01597-01009 | NUT | 50001- | |
| 5 | 01643-31032 | WASHER | 50001- | |
| 6 | 01435-01020 | BOLT | 50001- | |
| 7 | 428-43-27241 | TUBE | 50002- | |
| 7 | \0\428-43-27240 | TUBE | 50001-50001 | |
| 8 | 425-46-14130 | PLATE | 50001- | |
| 9 | 01435-01020 | BOLT | 50001- | |
| 10 | 04435-52110 | CLIP | 50001- | |
| 11 | 428-35-11851 | TUBE | 50001- | |
| 12 | 04434-52110 | CLIP | 50001- | |
| 13 | 01010-81016 | BOLT | 50001- | |
| 14 | 01643-31032 | WASHER | 50001- | |
| 15 | 428-35-11312 | TUBE | 50001- | |
| 16 | 22X-61-13840 | ELBOW | 50001- | |
| 17 | 07002-12034 | O-RING | 50001- |
