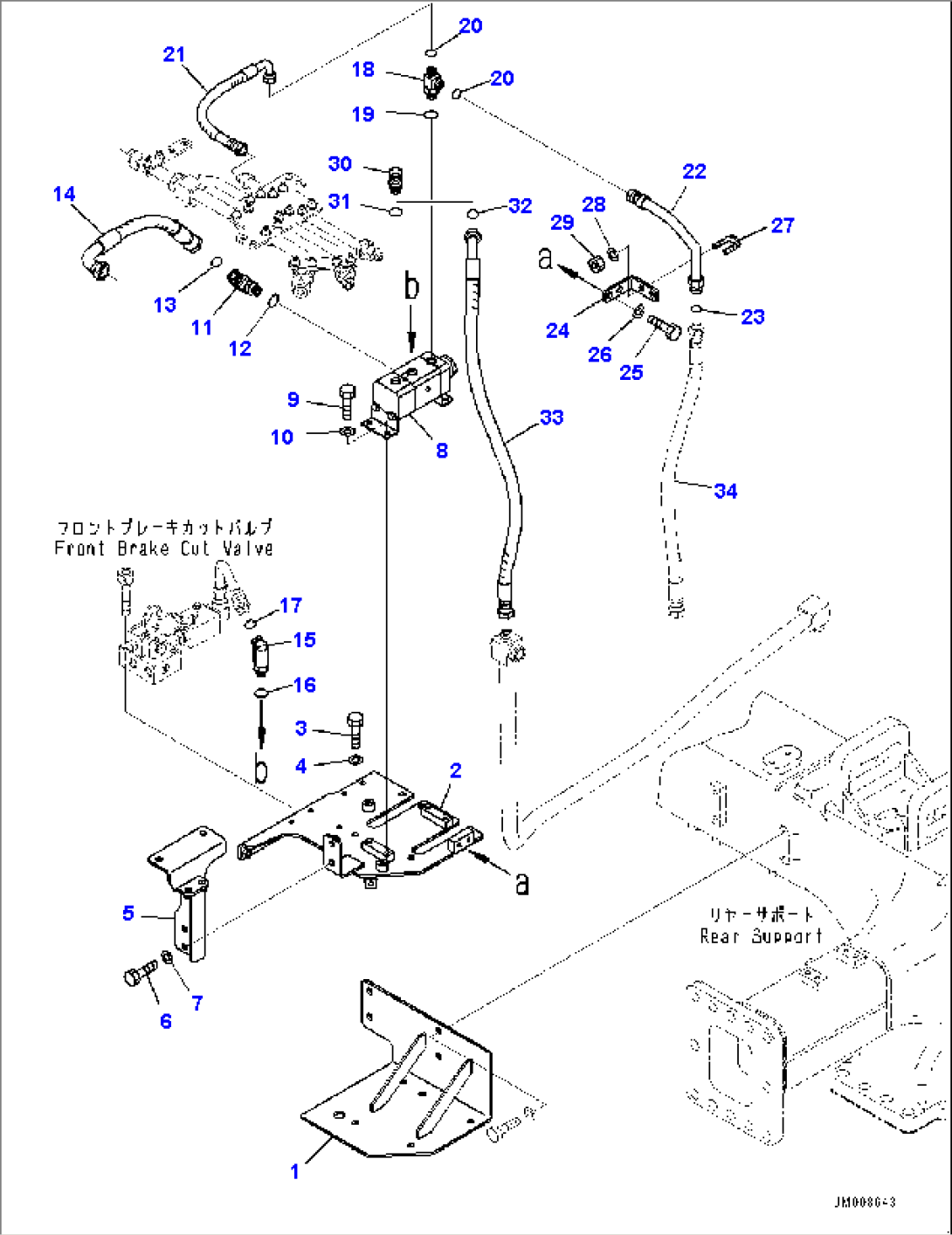

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-43-8M231 | Bracket | 30001- | |
| 2 | 569-43-8L781 | Bracket | 30001- | |
| 3 | 01010-81230 | Bolt | 30001- | |
| 4 | 01643-31232 | Washer | 30001- | |
| 5 | 569-43-8L321 | Bracket | 30001- | |
| 6 | 01010-81230 | Bolt | 30001- | |
| 7 | 01643-31232 | Washer | 30001- | |
| 8 | 569-43-83131 | Valve Assembly | 30001- | |
| 9 | 01010-81020 | Bolt | 30001- | |
| 10 | 01643-31032 | Washer | 30001- | |
| 11 | 569-43-83610 | Elbow | 30001- | |
| 12 | 07002-22034 | O-ring | 30001- | |
| 13 | 02896-21018 | O-ring | 30001- | |
| 14 | 02766-00604 | Hose, Face Seal Type | 30001- | |
| 15 | 02782-10518 | Elbow | 30001- | |
| 16 | 07002-22034 | O-ring | 30001- | |
| 17 | 02896-21015 | O-ring | 30001- | |
| 18 | 21N-64-36690 | Tee | 30001- | |
| 19 | 07002-22034 | O-ring | 30001- | |
| 20 | 02896-21012 | O-ring | 30001- | |
| 21 | 02766-004A4 | Hose, Face Seal Type | 30001- | |
| 22 | 569-43-8L351 | Tube | 30001- | |
| 23 | 02896-21015 | O-ring | 30001- | |
| 24 | 569-43-8L340 | Bracket | 30001- | |
| 25 | 01010-81225 | Bolt | 30001- | |
| 26 | 01643-31232 | Washer | 30001- | |
| 27 | 07283-32236 | Clip, Pipe | 30001- | |
| 28 | 01643-31032 | Washer | 30001- | |
| 29 | 22P-70-12160 | Nut | 30001- | |
| 30 | 02782-10516 | Elbow | 30001- | |
| 31 | 07002-22034 | O-ring | 30001- | |
| 32 | 02896-21015 | O-ring | 30001- | |
| 33 | 02767-00509 | Hose, Face Seal Type | 30001- | |
| 34 | (02765-00507) | Hose, Face Seal Type | - |
