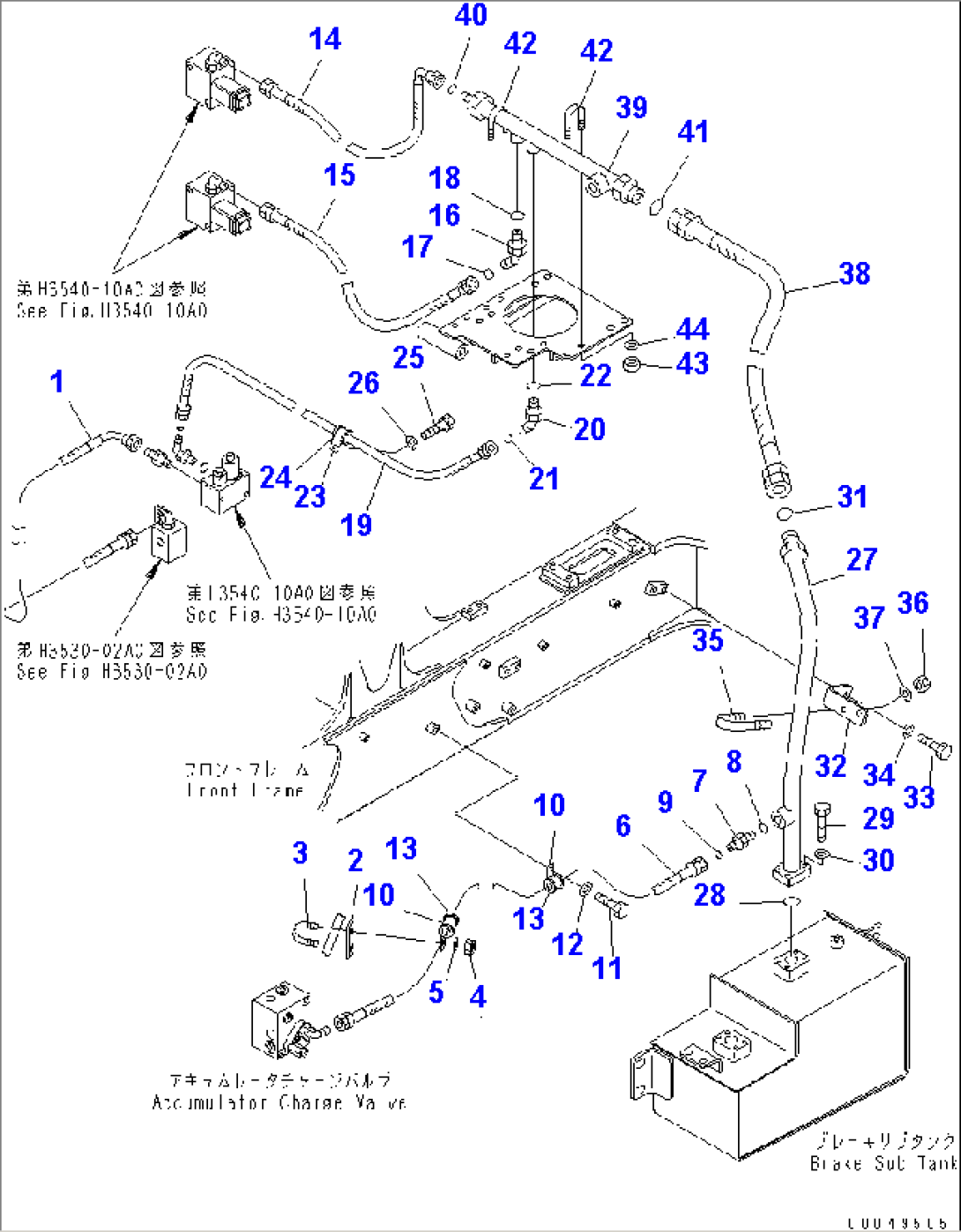

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02766-00305 | HOSE | 7001- | |
| 2 | 56D-61-11710 | PLATE | 7001- | |
| 3 | 07283-33442 | CLIP,PIPE | 7001- | |
| 4 | 01597-01009 | NUT | 7001- | |
| 5 | 01643-31032 | WASHER | 7001- | |
| 6 | 56B-43-27590 | HOSE | 7001- | |
| 7 | 11Y-62-12310 | NIPPLE | 7001- | |
| 8 | 07002-22434 | O-RING | 7001- | |
| 9 | 02896-21015 | O-RING | 7001- | |
| 10 | 04434-53211 | CLIP | 7001- | |
| 11 | 01010-81020 | BOLT | 7001- | |
| 12 | 01643-31032 | WASHER | 7001- | |
| 13 | 07095-20522 | CUSHION | 7001- | |
| 14 | 02763-00404 | HOSE | 7001- | |
| 15 | 02762-00405 | HOSE | 7001- | |
| 16 | 21W-62-42580 | ELBOW | 7001- | |
| 17 | 02896-21012 | O-RING | 7001- | |
| 18 | 07002-22034 | O-RING | 7001- | |
| 19 | 02760-003A8 | HOSE, 850MM | 7020- | |
| 19 | 02760-00308 | HOSE | 7001-7019 | |
| 20 | 21W-62-42570 | ELBOW | 7001- | |
| 21 | 02896-21009 | O-RING | 7001- | |
| 22 | 07002-22034 | O-RING | 7001- | |
| 23 | 04434-52110 | CLIP | 7001- | |
| 24 | 07095-20314 | CUSHION | 7001- | |
| 25 | 01010-81016 | BOLT | 7001- | |
| 26 | 01643-31032 | WASHER | 7001- | |
| 27 | 56B-43-17733 | TUBE | 7001- | |
| 28 | 07000-F3032 | O-RING | 7001- | |
| 29 | 07372-21040 | BOLT | 7001- | |
| 30 | 01643-51032 | WASHER | 7001- | |
| 31 | 207-62-64740 | O-RING | 7001- | |
| 32 | 56B-43-17940 | PLATE | 7001- | |
| 33 | 01010-81020 | BOLT | 7001- | |
| 34 | 01643-31032 | WASHER | 7001- | |
| 35 | 07283-33442 | CLIP,PIPE | 7001- | |
| 36 | 01597-01009 | NUT | 7001- | |
| 37 | 01643-31032 | WASHER | 7001- | |
| 38 | 56B-43-17391 | HOSE | 7001- | |
| 39 | 56B-43-17461 | TUBE | 7001- | |
| 40 | 02896-21012 | O-RING | 7001- | |
| 41 | 207-62-64740 | O-RING | 7001- | |
| 42 | 07283-33442 | CLIP,PIPE | 7001- | |
| 43 | 01597-01009 | NUT | 7001- | |
| 44 | 01643-31032 | WASHER | 7001- |
