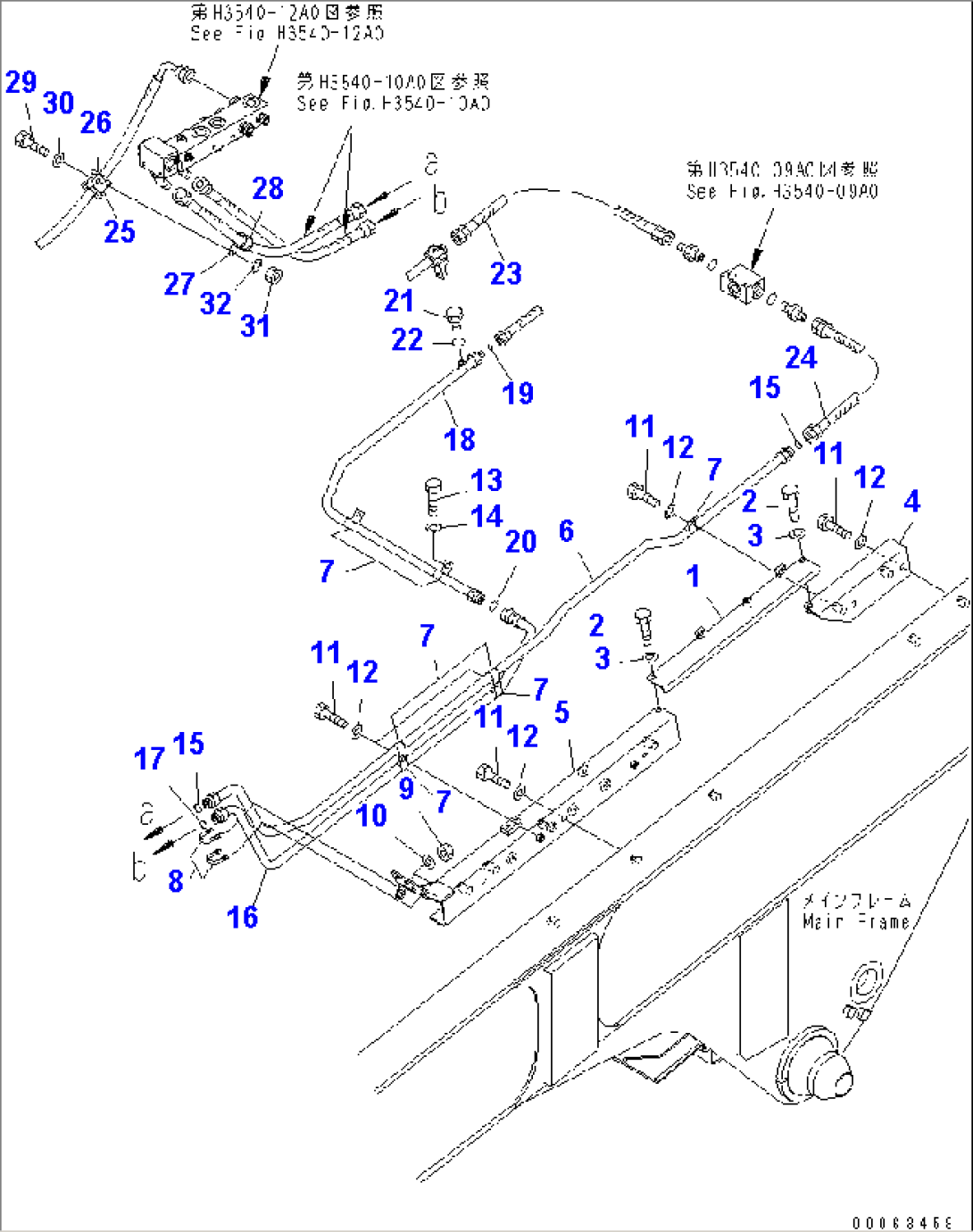

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-43-85141 | PLATE | 3001- | |
| 2 | 01010-81016 | BOLT | 3001- | |
| 3 | 01643-31032 | WASHER | 3001- | |
| 4 | 566-43-85152 | CHANNEL | 3001- | |
| 5 | 566-43-85163 | CHANNEL | 3001- | |
| 6 | 566-43-85233 | TUBE | 3001- | |
| 7 | 04434-52110 | CLIP | 3001- | |
| 8 | 07283-32236 | CLIP | 3001- | |
| 9 | 01597-01009 | NUT | 3001- | |
| 10 | 01643-31032 | WASHER | 3001- | |
| 11 | 01010-81020 | BOLT | 3001- | |
| 12 | 01643-31032 | WASHER | 3001- | |
| 13 | 01010-81016 | BOLT | 3001- | |
| 14 | 01643-31032 | WASHER | 3001- | |
| 15 | 02896-21015 | O-RING | 3001- | |
| 16 | 566-43-85243 | TUBE | 3021- | |
| 17 | 02896-21009 | O-RING | 3021- | |
| 18 | 566-43-85350 | TUBE | 3021- | |
| 19 | 02896-21015 | O-RING | 3001- | |
| 20 | 02896-21009 | O-RING | 3001- | |
| 21 | 07040-11409 | PLUG | 3001- | |
| 22 | 07002-21423 | O-RING | 3001- | |
| 23 | 02765-00505 | HOSE | 3001- | |
| 24 | 02765-005A4 | HOSE | 3001- | |
| 25 | 569-16-61670 | CLIP | 3001- | |
| 26 | 283-62-11920 | RUBBER | 3001- | |
| 27 | 04434-53412 | CLIP | 3001- | |
| 28 | 07095-20625 | CUSHION | 3001- | |
| 29 | 01010-81020 | BOLT | 3001- | |
| 30 | 01643-31032 | WASHER | 3001- | |
| 31 | 01580-11008 | NUT | 3001- | |
| 32 | 01643-31032 | WASHER | 3001- |
