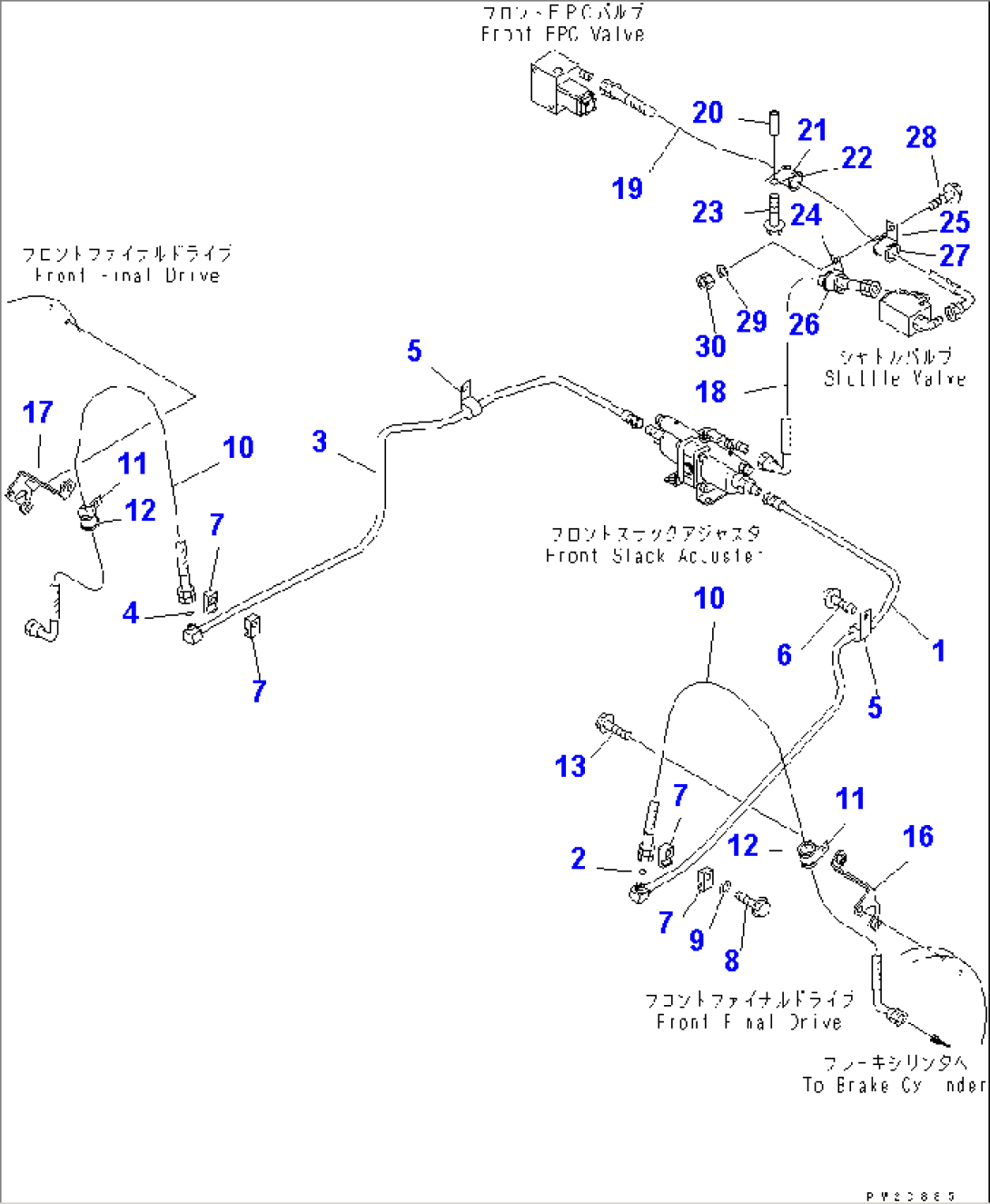

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56C-43-17711 | TUBE | 1001- | |
| 2 | 02896-21009 | O-RING | 1001- | |
| 3 | 56C-43-17721 | TUBE | 1001- | |
| 4 | 02896-21009 | O-RING | 1001- | |
| 5 | 04434-51510 | CLIP | 1001- | |
| 6 | 01435-01016 | BOLT | 1001- | |
| 7 | 516-61-12320 | CLAMP | 1001- | |
| 8 | 01435-01030 | BOLT | 1001- | |
| 9 | 01643-51032 | WASHER | 1001- | |
| 10 | 02766-00310 | HOSE | 1039- | |
| 10 | 02766-00310 | HOSE | 1001-1038 | |
| 11 | 08036-03014 | CLIP | 1001- | |
| 12 | 07095-00316 | CUSHION | 1001- | |
| 13 | 01435-01020 | BOLT | 1001- | |
| 16 | 56B-43-17691 | BRACKET | 1001- | |
| 17 | 56B-43-17791 | BRACKET | 1001- | |
| 18 | 02766-00404 | HOSE | 1001- | |
| 19 | 02766-00510 | HOSE | 1001- | |
| 20 | 22T-61-11370 | SPACER | 1001- | |
| 21 | 04434-53411 | CLIP | 1001- | |
| 22 | 07095-20523 | CUSHION | 1001- | |
| 23 | 01435-01070 | BOLT | 1001- | |
| 24 | 04434-52711 | CLIP | 1001- | |
| 25 | 04434-53411 | CLIP | 1001- | |
| 26 | 07095-20420 | CUSHION | 1001- | |
| 27 | 07095-20523 | CUSHION | 1001- | |
| 28 | 01435-01020 | BOLT | 1001- | |
| 29 | 01643-31032 | WASHER | 1001- | |
| 30 | 01580-11008 | NUT | 1001- |
