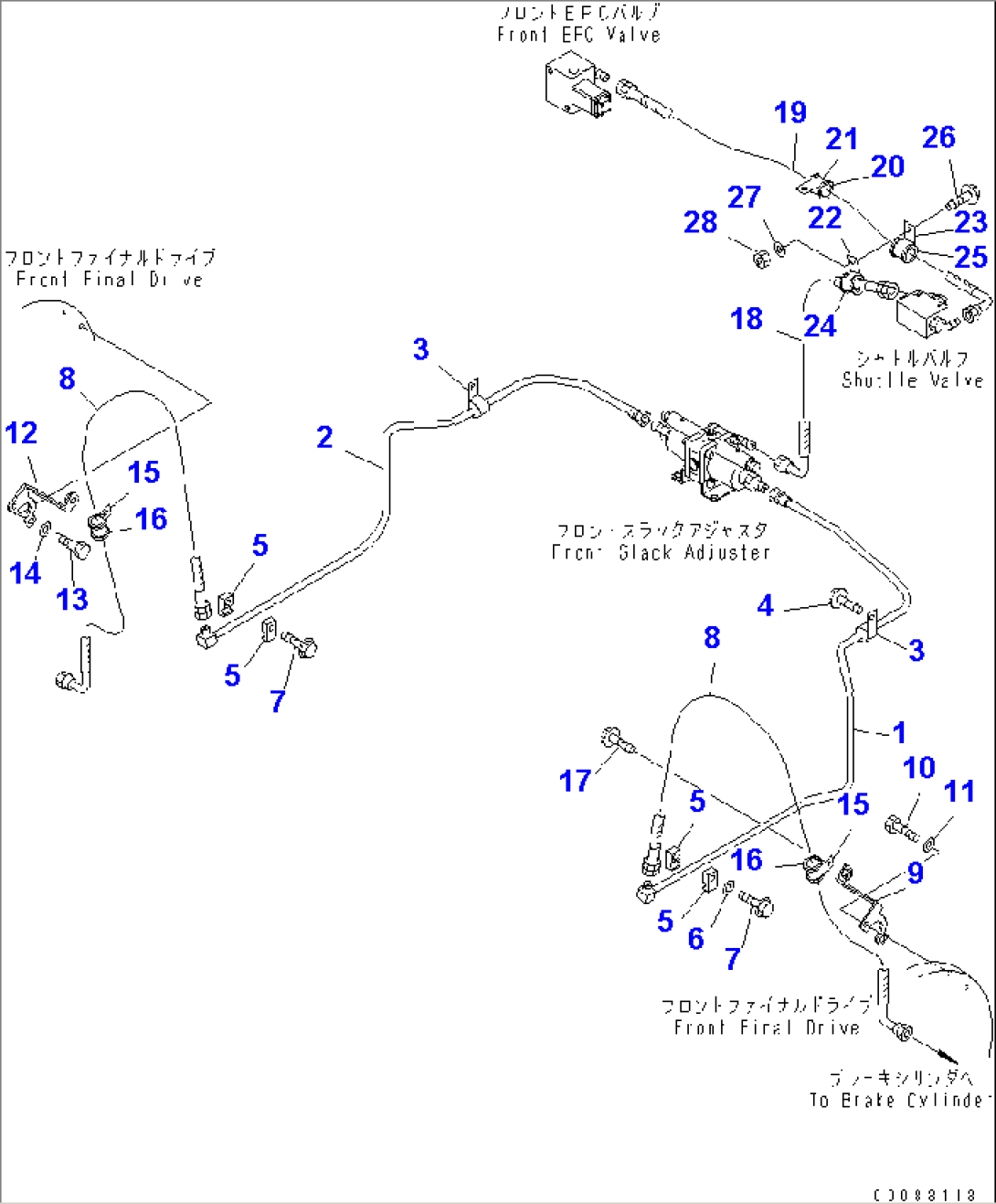

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-43-17714 | TUBE | A10001- | |
| 2 | 56B-43-17724 | TUBE | A10001- | |
| 3 | 04434-51510 | CLIP | A10001- | |
| 4 | 01435-01016 | BOLT | A10001- | |
| 5 | 516-61-12320 | CLAMP | A10001- | |
| 6 | 01643-51032 | WASHER | A10001- | |
| 7 | 01435-01030 | BOLT | A10001- | |
| 8 | 02766-00310 | HOSE | A10001- | |
| 9 | 56B-43-17691 | BRACKET | A10001- | |
| 10 | 01010-81025 | BOLT | A10001- | |
| 11 | 01643-31032 | WASHER | A10001- | |
| 12 | 56B-43-17791 | BRACKET | A10001- | |
| 13 | 01010-81025 | BOLT | A10001- | |
| 14 | 01643-31032 | WASHER | A10001- | |
| 15 | 08036-03014 | CLIP | A10001- | |
| 16 | 07095-00316 | CUSHION | A10001- | |
| 17 | 01435-01020 | BOLT | A10001- | |
| 18 | 02766-00404 | HOSE | A10001- | |
| 19 | 02766-00510 | HOSE | A10001- | |
| 20 | 22T-61-11370 | SPACER | A10001- | |
| 21 | 04434-53411 | CLIP | A10001- | |
| 22 | 04434-52711 | CLIP | A10001- | |
| 23 | 04434-53411 | CLIP | A10001- | |
| 24 | 07095-20420 | CUSHION | A10001- | |
| 25 | 07095-20523 | CUSHION | A10001- | |
| 26 | 01435-01020 | BOLT | A10001- | |
| 27 | 01643-31032 | WASHER | A10001- | |
| 28 | 01580-11008 | NUT | A10001- |
