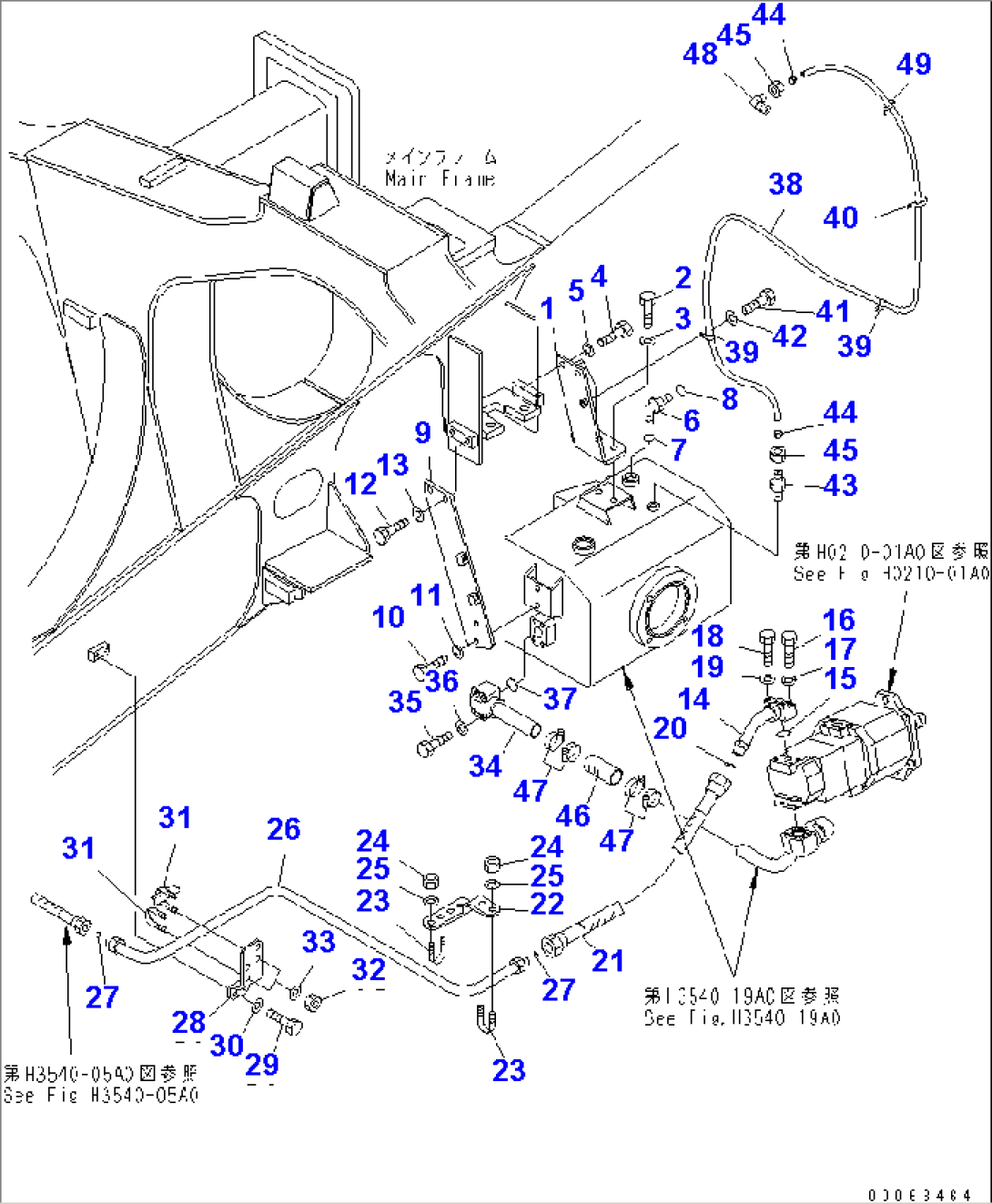

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-43-84151 | BRACKET | 7001- | |
| 2 | 01010-81225 | BOLT | 7001- | |
| 3 | 01643-31232 | WASHER | 7001- | |
| 4 | 01010-81230 | BOLT | 7001- | |
| 5 | 01643-31232 | WASHER | 7001- | |
| 6 | 02782-10516 | ELBOW | 7001- | |
| 7 | 07002-22034 | O-RING | 7001- | |
| 8 | 02896-21015 | O-RING | 7001- | |
| 9 | 566-43-84121 | PLATE | 7001- | |
| 10 | 01010-81225 | BOLT | 7001- | |
| 11 | 01643-31232 | WASHER | 7001- | |
| 12 | 01010-81230 | BOLT | 7001- | |
| 13 | 01643-31232 | WASHER | 7001- | |
| 14 | 566-43-84182 | TUBE | 7001- | |
| 15 | 07000-F3030 | O-RING | 7001- | |
| 16 | 01010-80845 | BOLT | 7001- | |
| 17 | 01643-30823 | WASHER | 7001- | |
| 18 | 01010-80855 | BOLT | 7001- | |
| 19 | 01643-30823 | WASHER | 7001- | |
| 20 | 02896-21015 | O-RING | 7001- | |
| 21 | 22N-973-1870 | HOSE | 7001- | |
| 22 | 566-43-84250 | BRACKET | 7001- | |
| 23 | 07283-32236 | CLIP | 7001- | |
| 24 | 01597-01009 | NUT | 7001- | |
| 25 | 01643-31032 | WASHER | 7001- | |
| 26 | 566-43-84192 | TUBE | 7001- | |
| 27 | 02896-21015 | O-RING | 7001- | |
| 28 | 566-88-81151 | PLATE | 7001- | |
| 29 | 01010-81025 | BOLT | 7001- | |
| 30 | 01643-31032 | WASHER | 7001- | |
| 31 | 07283-32236 | CLIP | 7001- | |
| 32 | 01597-01009 | NUT | 7001- | |
| 33 | 01643-31032 | WASHER | 7001- | |
| 34 | 566-43-84161 | TUBE | 7001- | |
| 35 | 01010-81060 | BOLT | 7001- | |
| 36 | 01643-31032 | WASHER | 7001- | |
| 37 | 07000-F3032 | O-RING | 7001- | |
| 38 | 07822-00830 | TUBE | 7001- | |
| 39 | 04434-51310 | CLIP | 7001- | |
| 40 | 04435-51312 | CLIP | 7001- | |
| 41 | 01010-81025 | BOLT | 7001- | |
| 42 | 01643-31032 | WASHER | 7001- | |
| 43 | 07836-00817 | CONNECTOR | 7001- | |
| 44 | 07831-00813 | SLEEVE | 7001- | |
| 45 | 07832-00817 | NUT | 7001- | |
| 46 | 07260-03220 | HOSE | 7001- | |
| 47 | 07299-00055 | CLAMP | 7001- | |
| 48 | 07834-00817 | ELBOW | 7001- | |
| 49 | 08034-20519 | BAND | 7001- |
