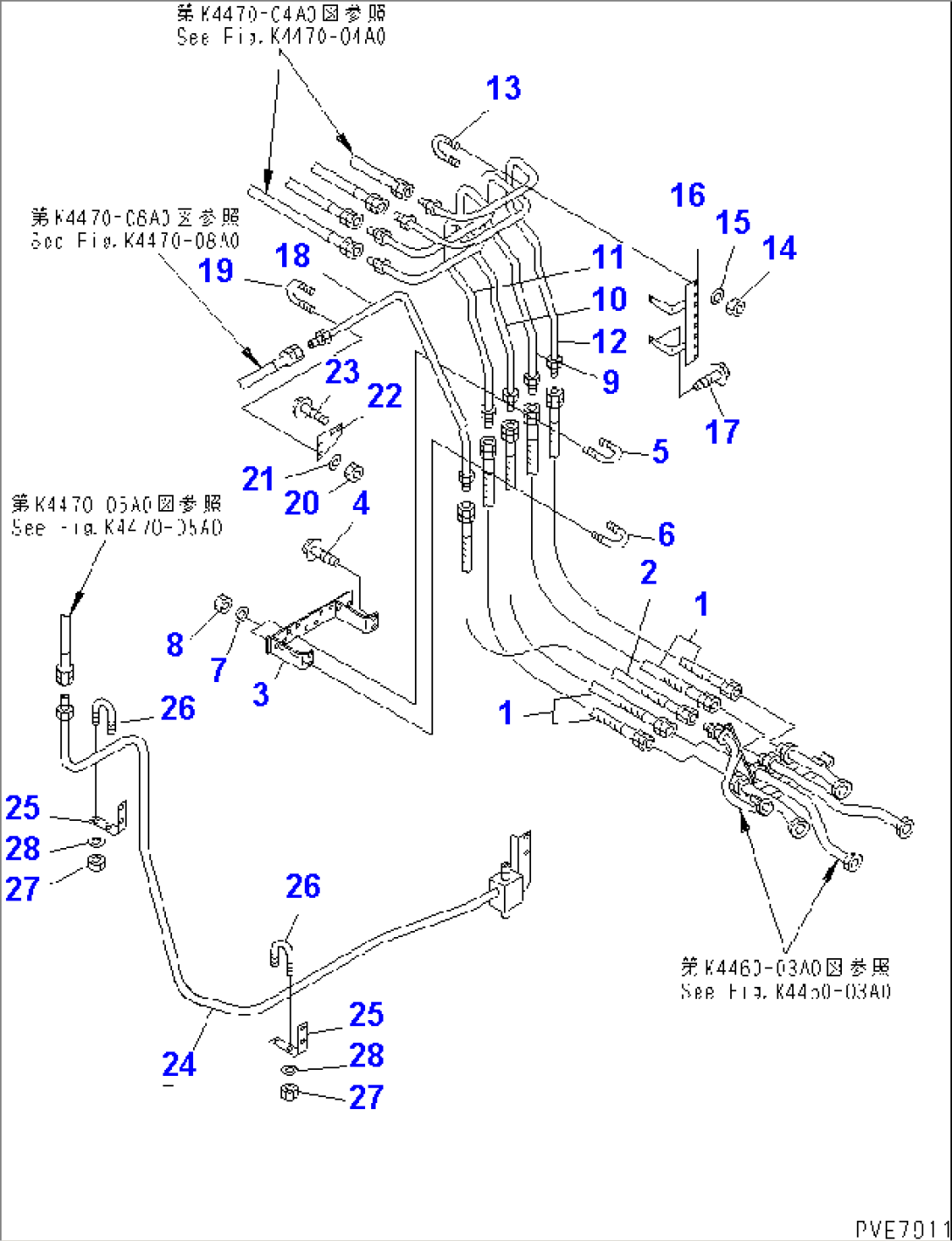

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07108-20607 | HOSE | 50001-@ | |
| 2 | 07108-20406 | HOSE | 50001-@ | |
| 3 | 427-43-21422 | PLATE | 50001-50024 | |
| 4 | 01435-01020 | BOLT | 50001-@ | |
| 5 | 07283-32738 | CLIP | 50001-50024 | |
| 6 | 07283-32236 | CLIP | 50001-@ | |
| 7 | 01643-31032 | WASHER | 50001-50024 | |
| 8 | 01597-01009 | NUT | 50001-50024 | |
| 9 | 427-43-21360 | TUBE | 50001-50024 | |
| 10 | 427-43-21370 | TUBE | 50001-50024 | |
| 11 | 427-43-21381 | TUBE | 50001-50024 | |
| 12 | 427-43-21390 | TUBE | 50001-50024 | |
| 13 | 07283-32738 | CLIP | 50001-50024 | |
| 14 | 01597-01009 | NUT | 50001-50024 | |
| 15 | 01643-31032 | WASHER | 50001-50024 | |
| 16 | 427-43-27160 | BRACKET | 50001-50024 | |
| 17 | 01435-01020 | BOLT | 50001-@ | |
| 18 | 427-43-27670 | TUBE | 50001-@ | |
| 19 | 07283-32236 | CLIP | 50001-@ | |
| 20 | 01597-01009 | NUT | 50001-@ | |
| 21 | 01643-31032 | WASHER | 50001-@ | |
| 22 | 427-43-27150 | PLATE | 50001-@ | |
| 23 | 01435-01025 | BOLT | 50001-@ | |
| 24 | 427-43-27582 | TUBE | 50001-@ | |
| 25 | 569-16-11390 | BRACKET | 50001-@ | |
| 26 | 07283-33442 | CLIP | 50001-@ | |
| 27 | 01597-01009 | NUT | 50001-@ | |
| 28 | 01643-31032 | WASHER | 50001-@ |
