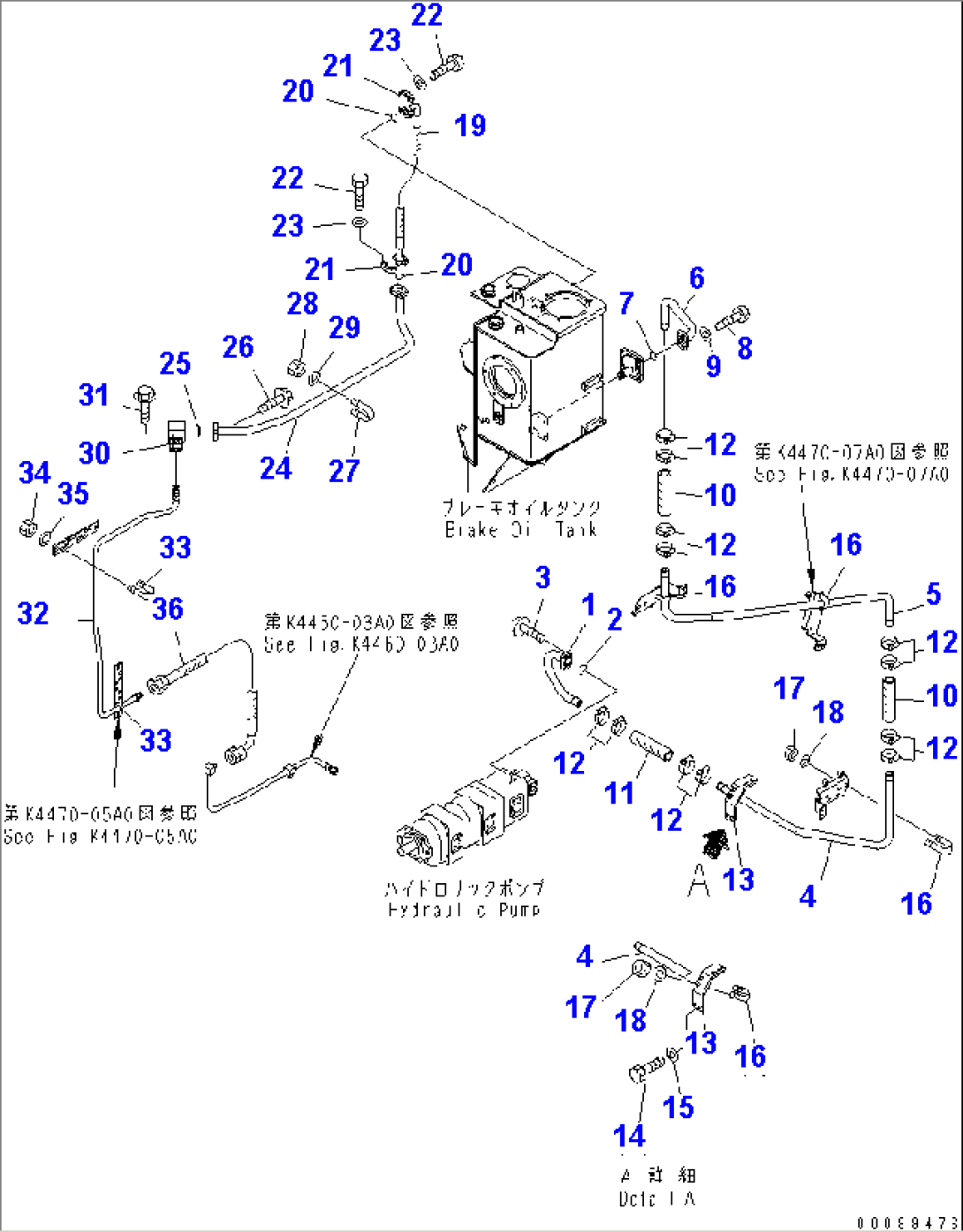

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42C-43-17953 | TUBE | 50090- | |
| 2 | 07000-F3042 | O-RING | 50001- | |
| 3 | 01435-01030 | BOLT | 50001- | |
| 4 | 42C-U44-1463 | TUBE | 50090- | |
| 5 | 42C-U44-1472 | TUBE | 50090- | |
| 6 | 42C-U44-1842 | TUBE | 50090- | |
| 7 | 07000-A3042 | O-RING | 50088- | |
| 8 | 07372-21040 | BOLT | 50088- | |
| 9 | 01643-51232 | WASHER | 50088- | |
| 10 | 07260-03220 | HOSE | 50090- | |
| 11 | 07260-03236 | HOSE | 50002- | |
| 12 | 07289-00045 | CLAMP | 50090- | |
| 13 | 42C-U44-1572 | BRACKET | 50002- | |
| 14 | 01435-01235 | BOLT | 50002- | |
| 15 | 01643-31232 | WASHER | 50002- | |
| 16 | 07283-33442 | CLIP | 50001- | |
| 17 | 01597-01009 | NUT | 50001- | |
| 18 | 01643-31032 | WASHER | 50001- | |
| 19 | 07124-01208 | HOSE | 50077- | |
| 20 | 07000-F3038 | O-RING | 50077- | |
| 21 | 07371-31255 | FLANGE | 50077- | |
| 22 | 07372-21035 | BOLT | 50077- | |
| 23 | 01643-51032 | WASHER | 50077- | |
| 24 | 42C-43-18820 | TUBE | 50077- | |
| 25 | 07000-F3042 | O-RING | 50001- | |
| 26 | 01435-01030 | BOLT | 50001- | |
| 27 | 07283-33442 | CLIP | 50001- | |
| 28 | 01597-01009 | NUT | 50001- | |
| 29 | 01643-31032 | WASHER | 50001- | |
| 30 | 42C-43-17711 | BLOCK | 50001- | |
| 31 | 01435-01220 | BOLT | 50001- | |
| 32 | 42C-43-18151 | TUBE | 50001- | |
| 33 | 07283-32236 | CLIP | 50001- | |
| 34 | 01597-01009 | NUT | 50001- | |
| 35 | 01643-31032 | WASHER | 50001- | |
| 36 | 07623-005A4 | HOSE | 50001- |
