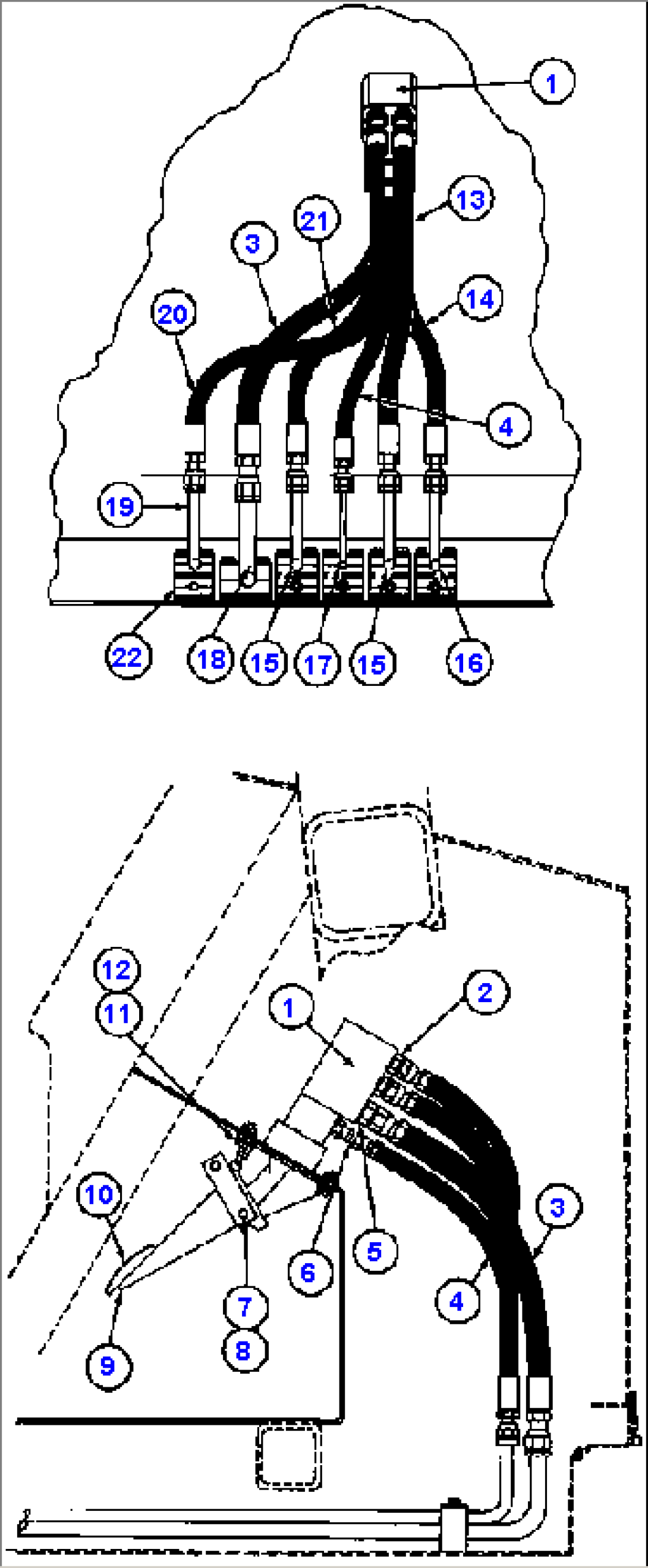

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PB7402 | BRAKE VALVE PEDAL ASSM (SEE INDEX) | ||
| 2 | WB0584 | FITTING, STRAIGHT ADAPTOR | ||
| 3 | HA5759 | HOSE - RETURN PORT "T" | ||
| 4 | HA5562 | HOSE - SECONDARY BRAKE PORT "PX" | ||
| 5 | WB0593 | ADAPTOR, STRAIGHT | ||
| 6 | WA4201 | FITTING, TUBE | ||
| 7 | TR1306 | CAPSCREW - 1/4" - 20NC X 1" | ||
| 8 | DC3584 | LOCKWASHER - 1/4" | ||
| 9 | TX9593 | PEDAL, BRAKE | ||
| 10 | BF1856 | PAD, FOOT | ||
| 11 | TR4731 | CAPSCREW - 5/16" - 18NC X 1" | ||
| 12 | SC4174 | LOCKWASHER - 5/16" | ||
| 13 | HA6199 | HOSE - PORT "P1" | ||
| 14 | HA5937 | HOSE - PORT "B1" | ||
| 15 | EC2085 | TUBE | ||
| 16 | TY9643 | TUBE | ||
| 17 | EC2086 | TUBE | ||
| 18 | EC2088 | TUBE | ||
| 19 | TY9646 | TUBE | ||
| 20 | HA6198 | HOSE - PORT "B2" | ||
| 21 | HA6198 | HOSE - PORT "P2" | ||
| 22 | TZ0673 | CLAMP ASSM |
