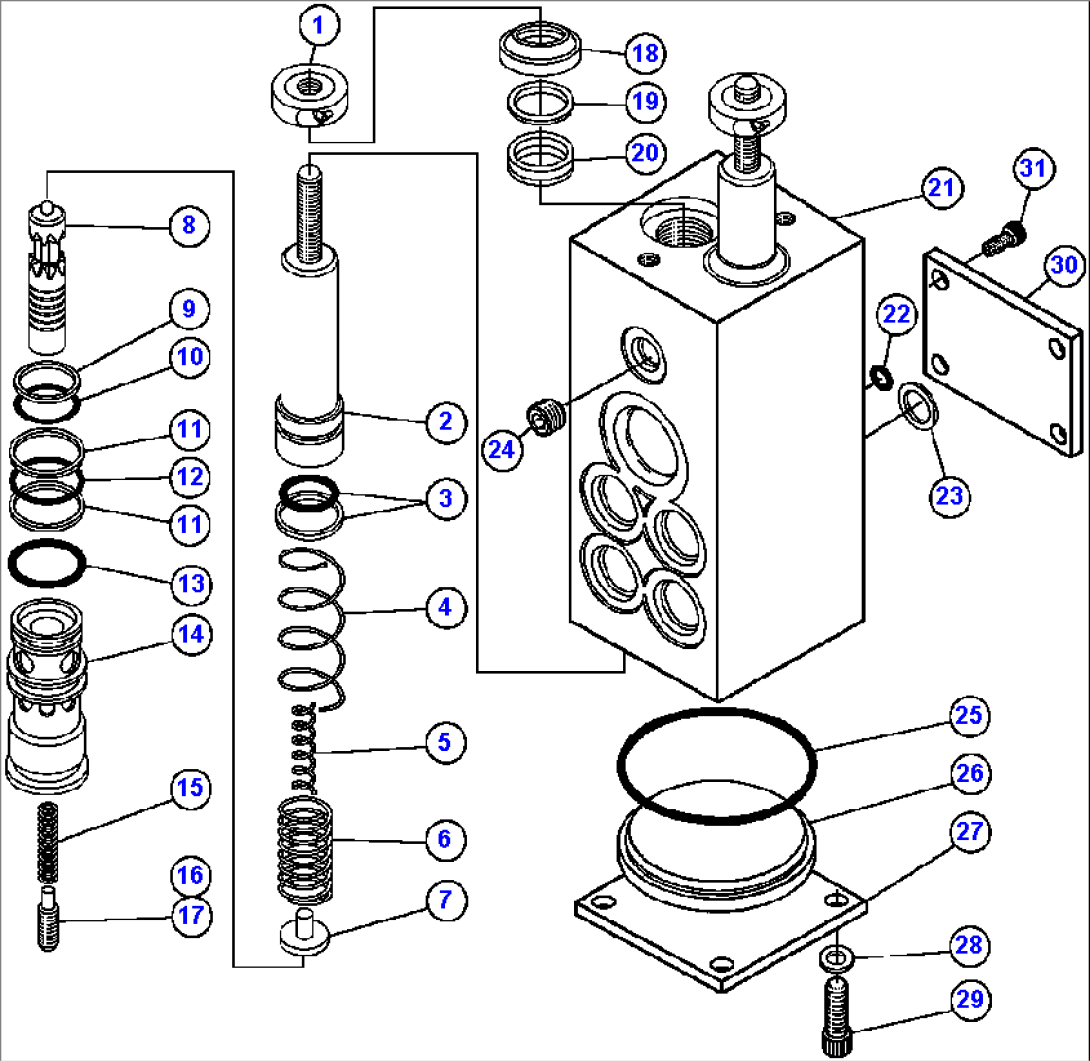

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VE8070 | COLLAR | | |
| 2 | VE8071 | PLUNGER | | |
| 3 | | SEAL (1) | | |
| 4 | | SPRING, PLUNGER (1) | | |
| 5 | | SPRING, REGULATOR (1) | | |
| 6 | | SPRING, REGULATOR (1) | | |
| 7 | VE8532 | SEAT, SPRING | | |
| 8 | | SPOOL (3) | | |
| 9 | | RING, BACKUP (2) | | |
| 10 | | SEAL (2) | | |
| 11 | | RING, BACKUP (2) | | |
| 12 | | SEAL (2) | | |
| 13 | | SEAL (2) | | |
| 14 | | SLEEVE (3) | | |
| 15 | | SPRING, SPOOL (1) | | |
| 16 | | PLUNGER, REACTION (3) | | |
| 17 | | PLUNGER, REACTION (3) | | |
| 18 | | SEAL, WIPER (2) | | |
| 19 | | RING, BACKUP (2) | | |
| 20 | | SEAL (2) | | |
| 21 | | BODY (4) | | |
| 22 | | SEAL (2) | | |
| 23 | | SEAL (2) | | |
| 24 | VE8533 | SCREW | | |
| 25 | | SEAL (2) | | |
| 26 | | PLUG (5) | | |
| 27 | | SLEEVE, RETAINER | | |
| 28 | C1546 | FLAT WASHER - 1/4" | | |
| 29 | VE8534 | SCREW | | |
| 30 | | PLATE (4) | | |
| 31 | | CAPSCREW (4) | | |
| NS|32 | VE8528 | NOTE: (1) INCLUDED IN VE8528 SPRING KIT. | | |
| NS|33 | VE8529 | (2) INCLUDED IN VE8529 SEAL KIT. | | |
| NS|34 | VE8531 | (3) INCLUDED IN VE8531 SPOOL/SLEEVE KIT. | | |
| NS|35 | | (4) NOT SERVICED SEPARATELY. | | |
| NS|36 | | (EFFECTIVE WITH SERIAL NO. GF32252 & GF32253 ONLY.) | | |
