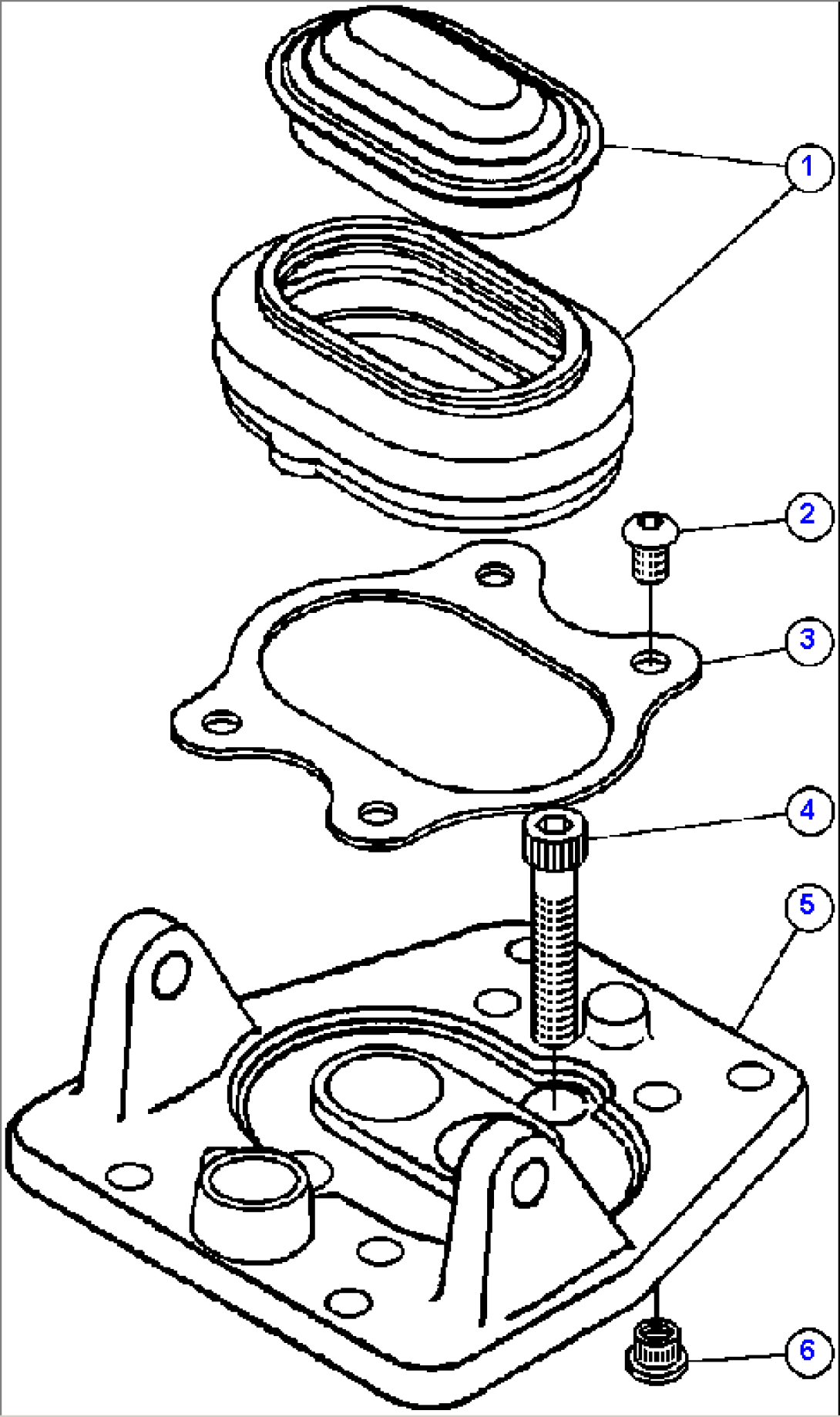

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VE9420 | BOOT/CAP ASSEMBLY | ||
| 1 | VE9411 | BOOT (1) | ||
| 2 | VE8544 | SCREW (SPECIAL) | ||
| 3 | VE8545 | PLATE, RETAINER | ||
| 4 | VE8546 | SCREW | ||
| 5 | VE9419 | ACTUATOR BASE | ||
| 6 | VE8547 | INSERT | ||
| NS|8 | VE8530 | NOTE: (1) INCLUDED IN VE8530 BOOT KIT. |
- Главная
- Каталог запчастей
- Самосвалы
- Afe48 av 930e 2 s/n a30128 (bingham canyon)
- Deck piping group
- Brake valve sub assembly (bf2875)
Поиск по каталогу
BRAKE VALVE SUB-ASSEMBLY (BF2875)
