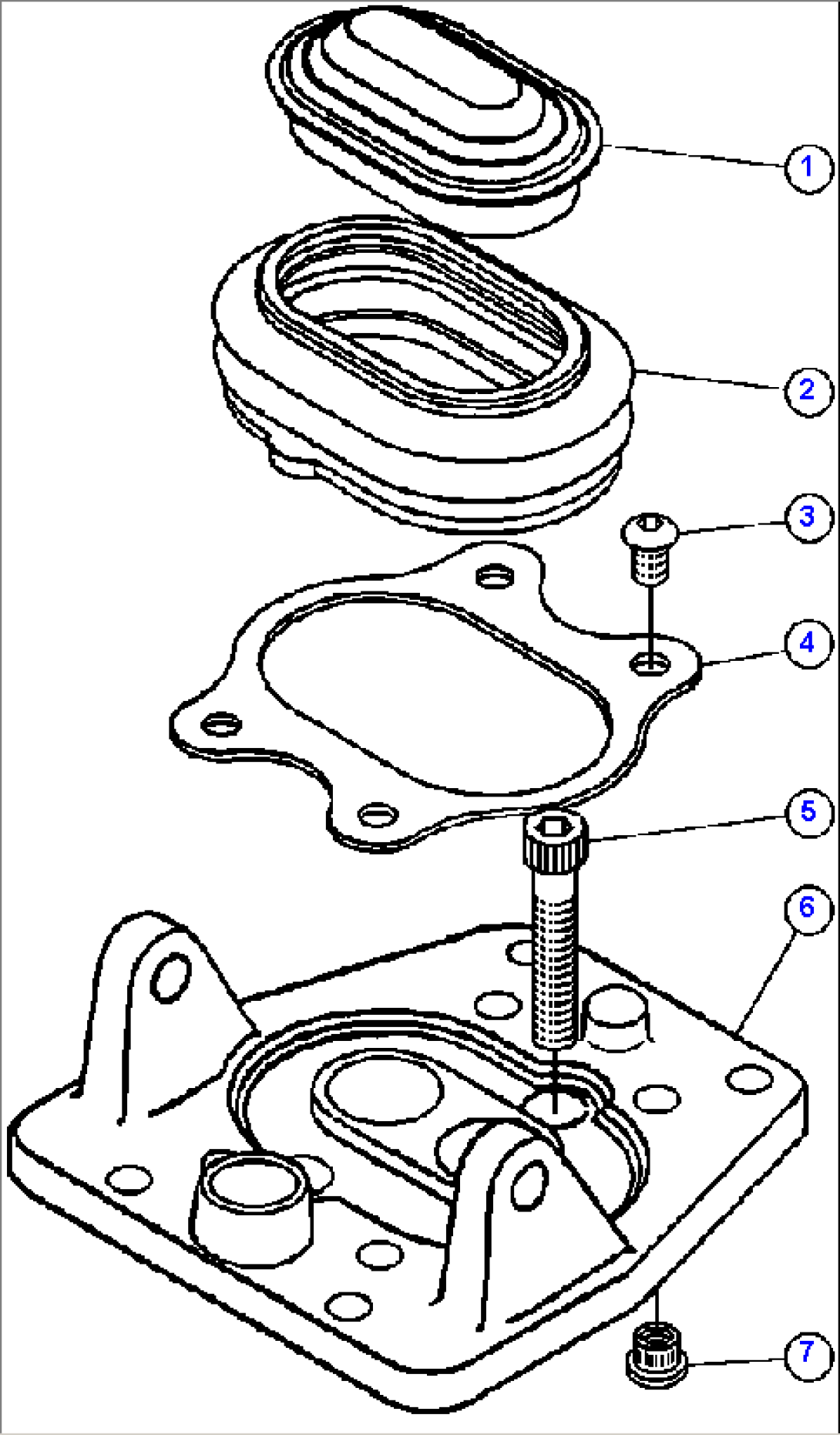

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | CAP (1) (2) | |||
| 2 | BOOT (2) | |||
| 3 | VE8544 | SCREW (SPECIAL) | ||
| 4 | VE8545 | PLATE, RETAINER | ||
| 5 | VE8546 | SCREW | ||
| 6 | VE9419 | ACTUATOR BASE | ||
| 7 | VE8547 | INSERT | ||
| NS|8 | NOTE: (1) NOT SERVICED SEPARATELY. | |||
| NS|9 | VE8530 | (2) INCLUDED IN VE8530 BOOT KIT. | ||
| NS|10 | (EFFECTIVE WITH SERIAL NO. GF32252 & GF32253 ONLY.) |
