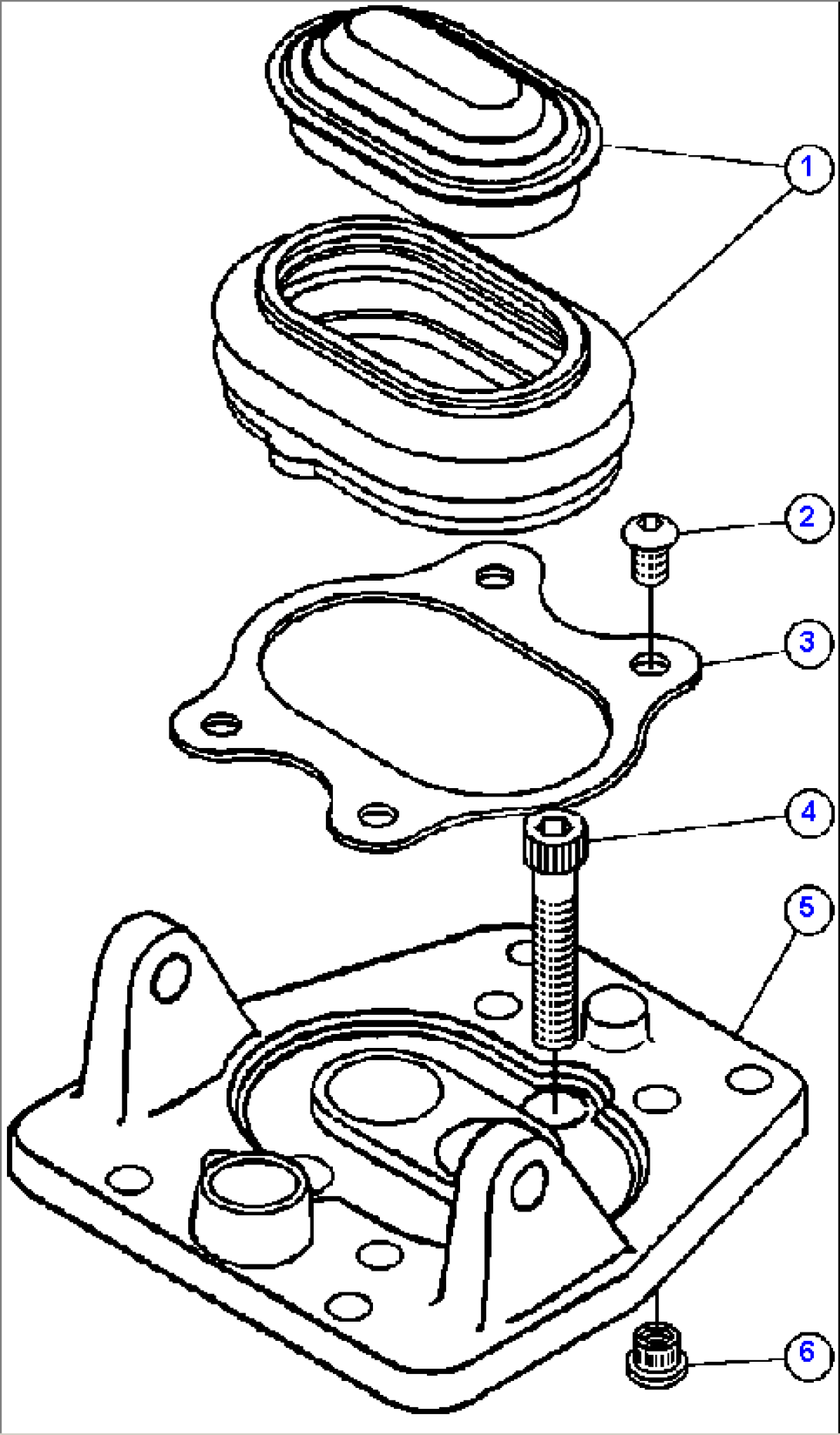

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VE9420 | BOOT/CAP ASSEMBLY (2) | ||
| 2 | VE8544 | SCREW (SPECIAL) | ||
| 3 | VE8545 | PLATE, RETAINER (1)/(2) | ||
| 4 | VE8546 | SCREW | ||
| 5 | VE9419 | ACTUATOR BASE | ||
| 6 | VE8547 | INSERT | ||
| NS|7 | VE8530 | NOTE: (1) NOT SERVICED SEPARATELY. | ||
| NS|8 | (2) INCLUDED IN BOOT KIT VE8530. |
