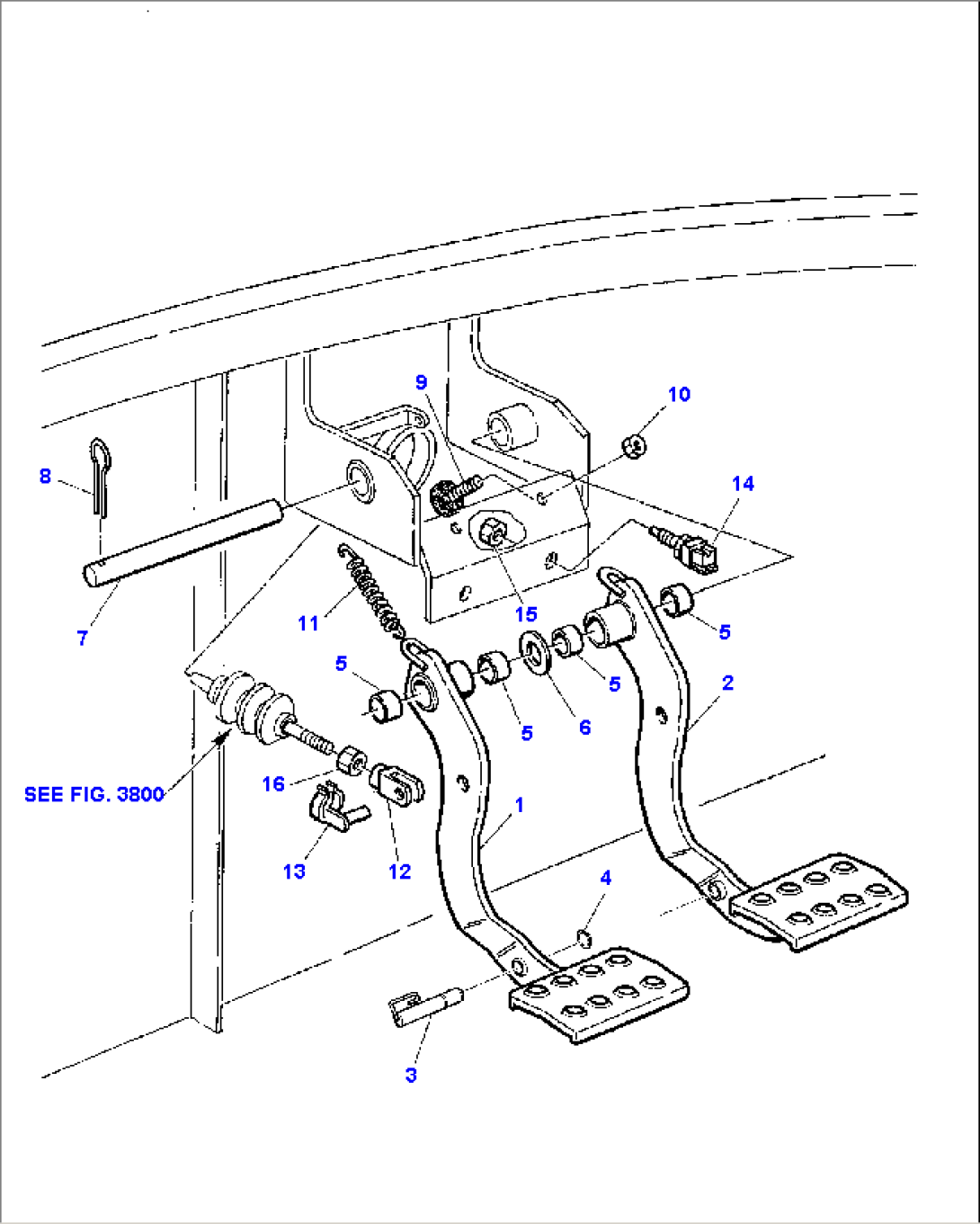

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 312608072 | BRAKE PEDAL L.H. | 15050001- | |
| 2 | 312608073 | BRAKE PEDAL R.H. | 15050001- | |
| 3 | 312608074 | PIN DRAG PEDALS | 15050001- | |
| 4 | 802250014 | SNAP RING | 15050001- | |
| 5 | 805630028 | BUSHING | 15050001- | |
| 6 | 802070020 | WASHER | 15050001- | |
| 7 | 312617602 | PIN | 15050001- | |
| 8 | 802610090 | COTTER | 15050001- | |
| 9 | 808001064 | RUBBER SUPPORT | 15050001- | |
| 10 | 801703408 | NUT | 15050001- | |
| 11 | 390101016 | SPRING | 15050001- | |
| 12 | 802720024 | FORK | 15050001- | |
| 13 | 802725024 | PIN | 15050001- | |
| 14 | 885080070 | SWITCH | 15050001- | |
| 15 | 801070053 | NUT | 15050001- | |
| 16 | 801703411 | NUT | 15050001- | |
| SEE FIG. 3800 |
