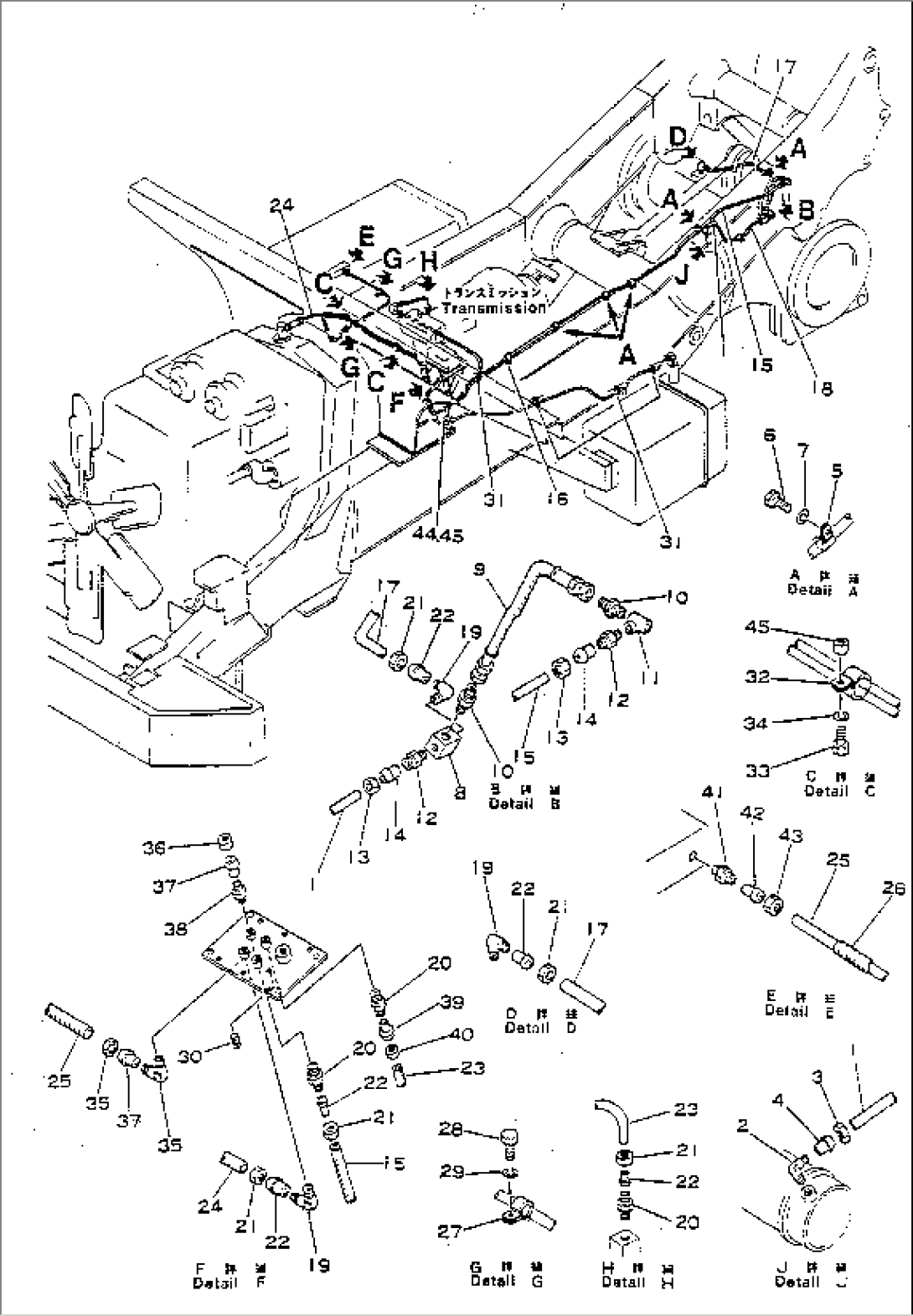

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07822-00610 | TUBE | 1002- | |
| 2 | 07834-00613 | ELBOW | 1002- | |
| 3 | 07832-00614 | NUT | 1002- | |
| 4 | 07831-00612 | SLEEVE | 1002- | |
| 5 | 08036-30814 | CLIP | 1002- | |
| 6 | 01010-51016 | BOLT | 1002- | |
| 7 | 01602-21030 | WASHER | 1002- | |
| 8 | 566-35-11980 | JOINT | 1002- | |
| 9 | 568-35-13112 | HOSE | 1002- | |
| 10 | 281-35-13120 | NIPPLE | 1002- | |
| 11 | 07324-10200 | TEE | 1002- | |
| 12 | 07836-00613 | CONNECTOR | 1002- | |
| 13 | 07832-00614 | NUT | 1002- | |
| 14 | 07831-00612 | SLEEVE | 1002- | |
| 15 | 07822-00650 | TUBE | 1002- | |
| 16 | 08036-23014 | CLIP | 1002- | |
| 17 | 07822-00610 | TUBE | 1002- | |
| 18 | 281-40-13480 | TUBE | 1002- | |
| 19 | 07834-00613 | ELBOW | 1002- | |
| 20 | 07836-00613 | CONNECTOR | 1002- | |
| 21 | 07832-00614 | NUT | 1002- | |
| 22 | 07831-00612 | SLEEVE | 1002- | |
| 23 | 07822-00625 | TUBE | 1002- | |
| 24 | 07822-00620 | TUBE | 1002- | |
| 25 | 07822-00435 | TUBE | 1002- | |
| 26 | 281-35-18250 | TUBE | 1002- | |
| 27 | 08036-30614 | CLIP | 1002- | |
| 28 | 01010-51016 | BOLT | 1002- | |
| 29 | 01602-21030 | WASHER | 1002- | |
| 30 | 07042-20211 | PLUG | 1002- | |
| 31 | 08034-00519 | BAND | 1002- | |
| 08034-00536 | BAND (OP) | 1002- | ||
| 32 | 08036-21814 | CLIP | 1002- | |
| 33 | 01010-51016 | BOLT | - | |
| 34 | 01602-21030 | WASHER | 1002- | |
| 35 | 07834-00410 | ELBOW | 1002- | |
| 36 | 07832-00410 | NUT | 1002- | |
| 37 | 07831-00411 | SLEEVE | 1002- | |
| 38 | 07836-00413 | CONNECTOR | 1002- | |
| 39 | 07831-00612 | SLEEVE | 1002- | |
| 40 | 07832-00614 | NUT | 1002- | |
| 41 | 07836-00410 | CONNECTOR | 1002- | |
| 42 | 07831-00411 | SLEEVE | 1002- | |
| 43 | 07832-00410 | NUT | 1002- | |
| 44 | 08036-22514 | CLIP | 1002- | |
| 45 | 01571-01016 | SEAT | 1002- |
