| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 21E-70-00030 | BUCKET ASS'Y | 1001- | |
| 1 | 21E-70-11120 | BUCKET | 1001- | |
| 2 | 21E-70-11130 | LIP (WELDED) | 1001- | |
| 3 | 21E-70-11140 | EDGE (WELDED) | 1001- | |
| 4 | 10E-70-22211 | TOOTH | 1001- | |
| 5 | 02090-11055 | BOLT | 1001- | |
| 6 | 09218-11614 | NUT | 1001- |
- Главная
- Каталог запчастей
- Колесные экскаваторы
- Pw20 1 s/n 1001 up
- Work equipment
- Bucket¤ 0.07m3 (0.12m3) width 450mm
Поиск по каталогу

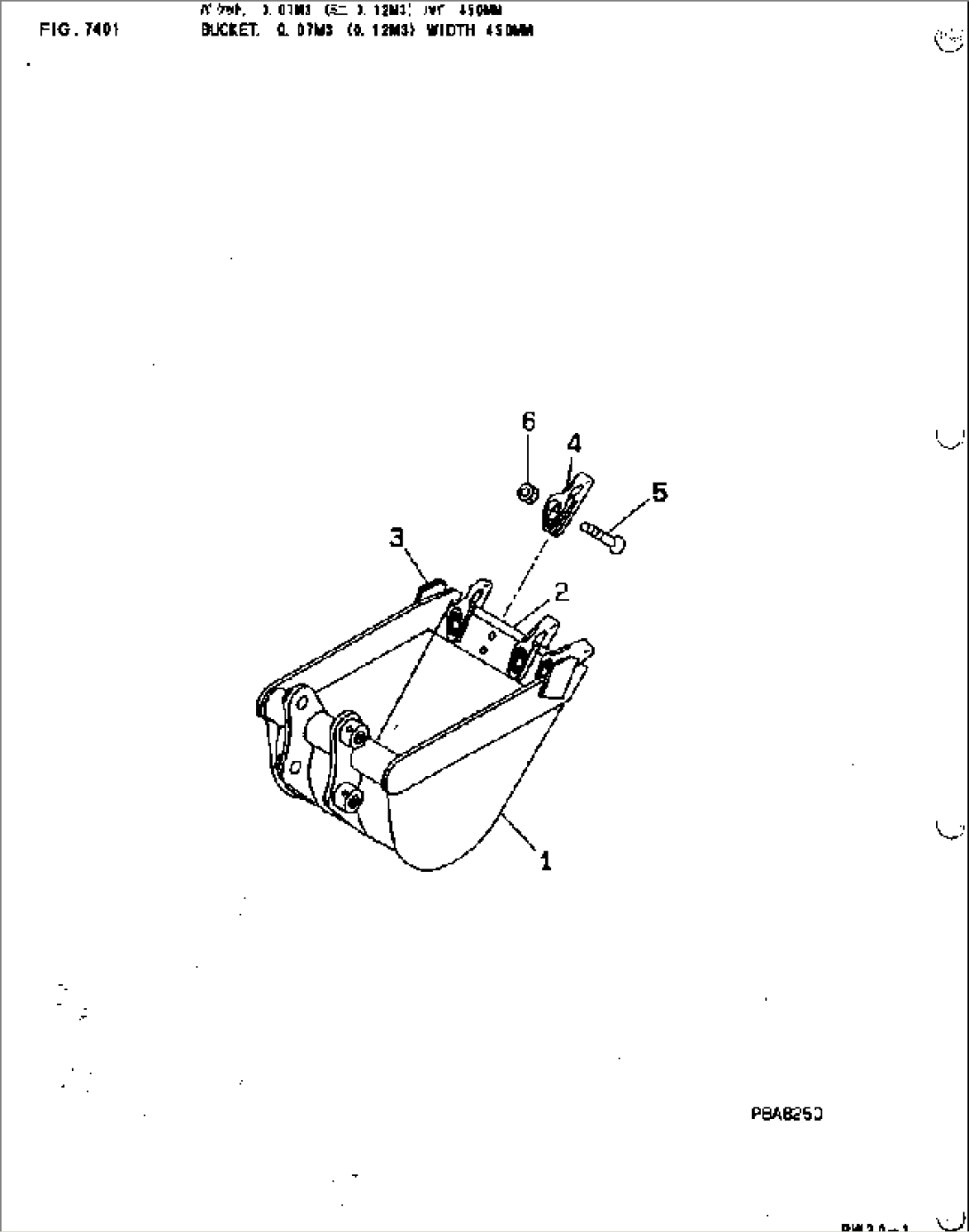

BUCKET¤ 0.07M3 (0.12M3) WIDTH 450MM
