| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 361-972-1110 | BUCKET | 1001- | |
| 2 | 361-902-1120 | EDGE (WELDED) | 1001- | |
| 3 | 361-70-11170 | BOSS (WELDED) | 1001- | |
| 4 | 361-70-11180 | BOSS (WELDED) | 1001- | |
| 5 | 09601-00835 | PLATE¤ NAME | 1001- | |
| 6 | 04418-13060 | SCREW | 1001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa20 1 s/n 1001 up
- Work equipment
- Bucket¤ 0.26m3 (for bolt on cutting edge and tooth) (for new pin type)
Поиск по каталогу

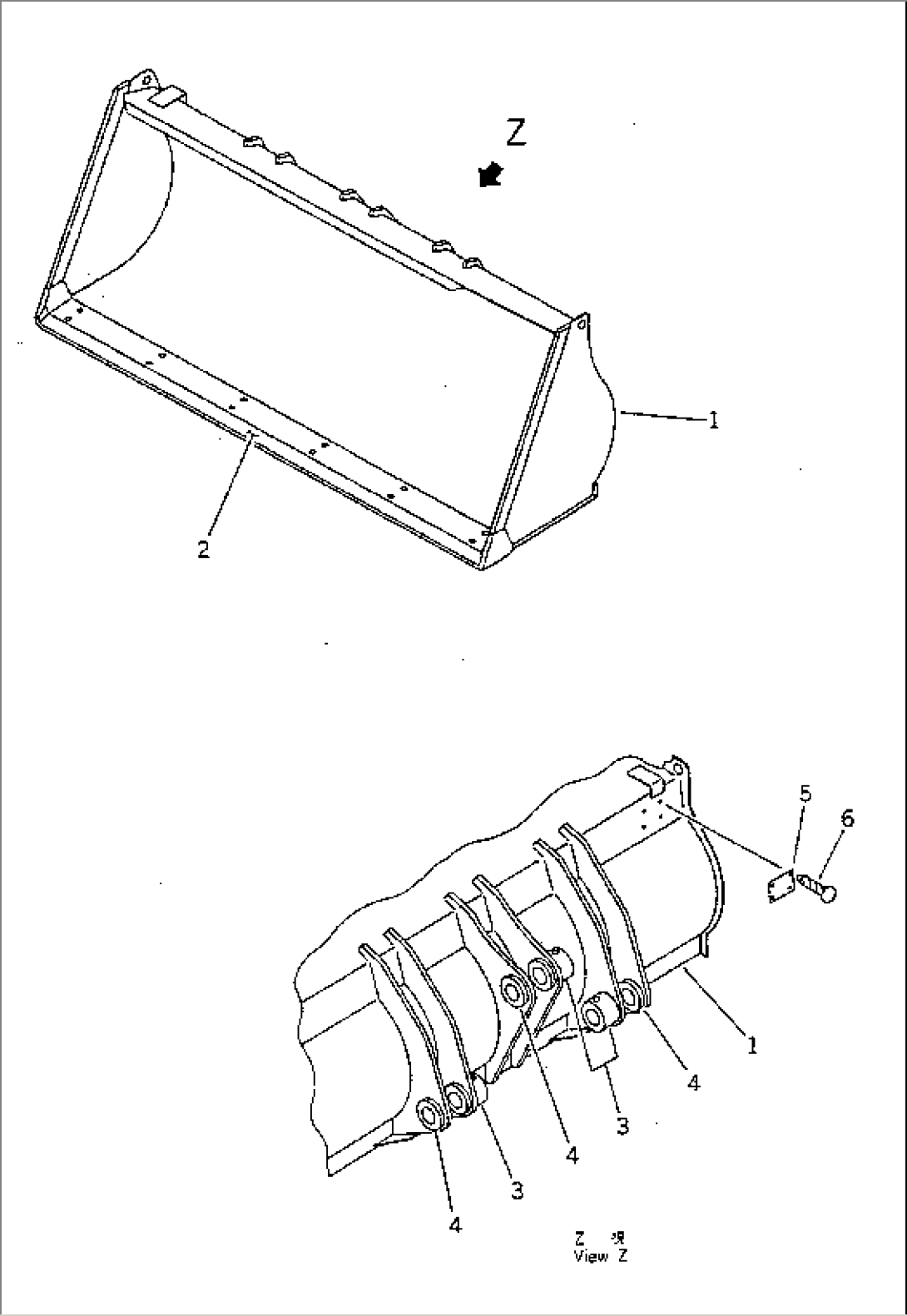

BUCKET¤ 0.26M3 (FOR BOLT ON CUTTING EDGE AND TOOTH) (FOR NEW PIN TYPE)
