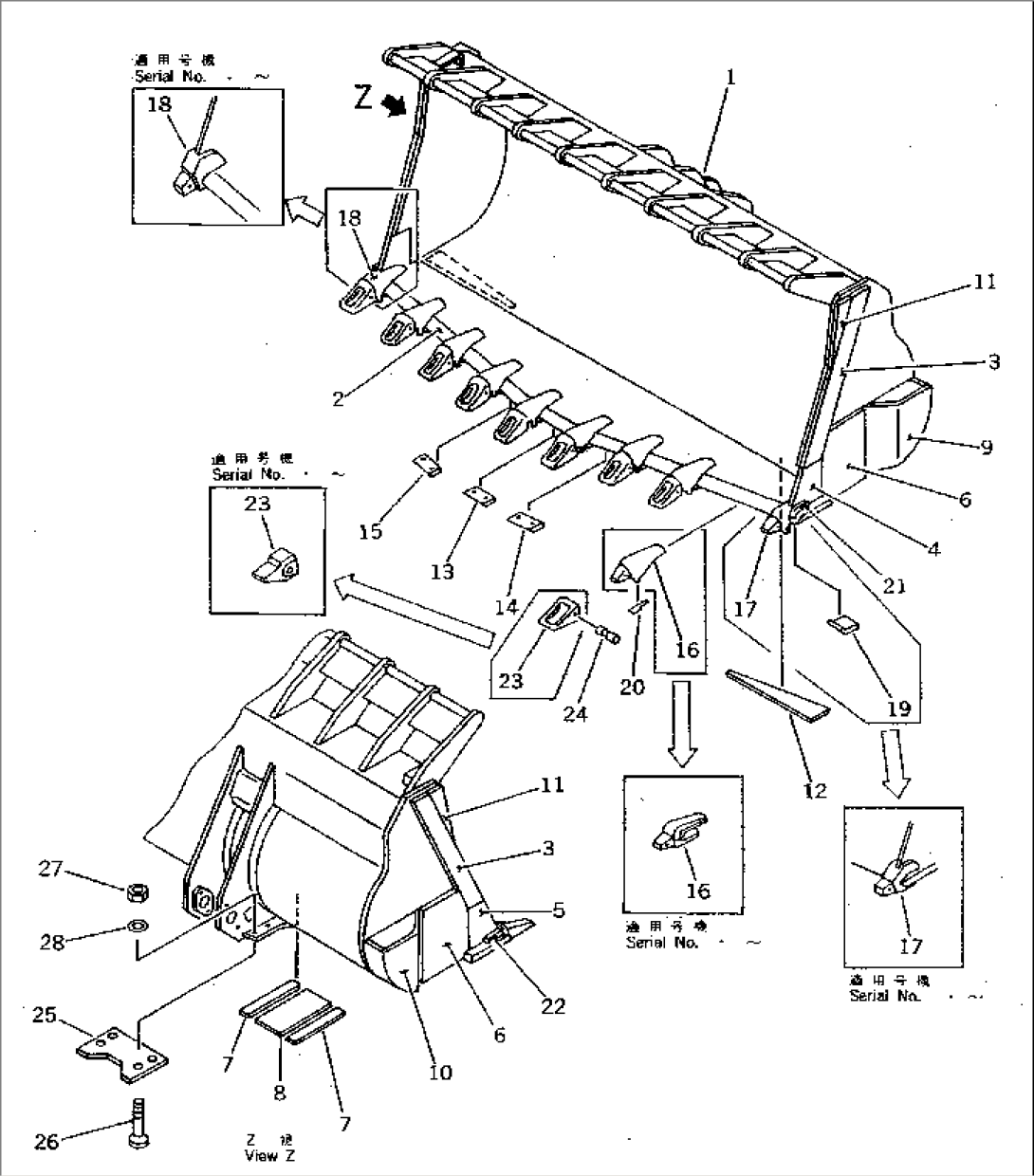

| Item | Part No. | Part Name | Qty | Serial No. |
| 427-70-12101 | BUCKET ASS'Y | .- | ||
| \0\427-70-12100 | BUCKET ASS'Y | 10001-. | ||
| 427-70-12312 | BUCKET SUB ASS'Y | .- | ||
| \0\427-70-12311 | BUCKET SUB ASS'Y | 10001-. | ||
| 1 | 427-70-12113 | BUCKET | .- | |
| \0\427-70-12112 | BUCKET | 10001-. | ||
| 2 | 427-70-12122 | EDGE (WELDED) | 10001- | |
| 3 | 427-70-12132 | PLATE (WELDED) | 10001- | |
| 4 | 427-70-12151 | PLATE,L.H. (WELDED) | 10001- | |
| 5 | 427-70-12161 | PLATE,R.H. (WELDED) | 10001- | |
| 6 | 427-70-12181 | PLATE (WELDED) | 10001- | |
| 7 | 427-70-12330 | PLATE (WELDED) | 10001- | |
| 8 | 427-70-12350 | PLATE (WELDED) | 10001- | |
| 9 | 427-70-12213 | GUARD,L.H. (WELDED) | 10001- | |
| 10 | 427-70-12223 | GUARD,R.H. (WELDED) | 10001- | |
| 11 | 427-70-12232 | PLATE (WELDED) | 10001- | |
| 12 | 427-70-12360 | PLATE (WELDED) | 10001- | |
| 13 | 427-70-12412 | PLATE,CENTER (WELDED) | 10001- | |
| 14 | 427-70-12420 | PLATE,L.H. (WELDED) | 10001- | |
| 15 | 427-70-12392 | PLATE,R.H. (WELDED) | 10001- | |
| 16 | 427-70-13742 | ADAPTER (WELDED) | .- | |
| 427-70-13740 | ADAPTER (WELDED) | 10001-. | ||
| 17 | 427-70-13753 | ADAPTER,L.H. (WELDED) | .- | |
| 427-70-13750 | ADAPTER,L.H. (WELDED) | 10001-. | ||
| 18 | 427-70-13763 | ADAPTER,R.H. (WELDED) | .- | |
| 427-70-13760 | ADAPTER,R.H. (WELDED) | 10001-. | ||
| 19 | 427-70-13510 | PLATE (WELDED) | 10001-. | |
| 20 | 427-70-13520 | PLATE (WELDED) | 10001- | |
| 21 | 427-70-13580 | PLATE,L.H. (WELDED) | 10001-. | |
| 22 | 427-70-13590 | PLATE,R.H. (WELDED) | 10001-. | |
| 23 | 427-70-13731 | TOOTH | .- | |
| \0\427-70-13730 | TOOTH | 10001-. | ||
| 24 | 427-70-13770 | PIN | 10001- | |
| 25 | 427-70-12142 | PLATE,WEAR | 10001- | |
| 26 | 09208-12595 | BOLT | 10001- | |
| 27 | 09218-12523 | NUT | 10001- | |
| 28 | 01643-22460 | WASHER | 10001- |
