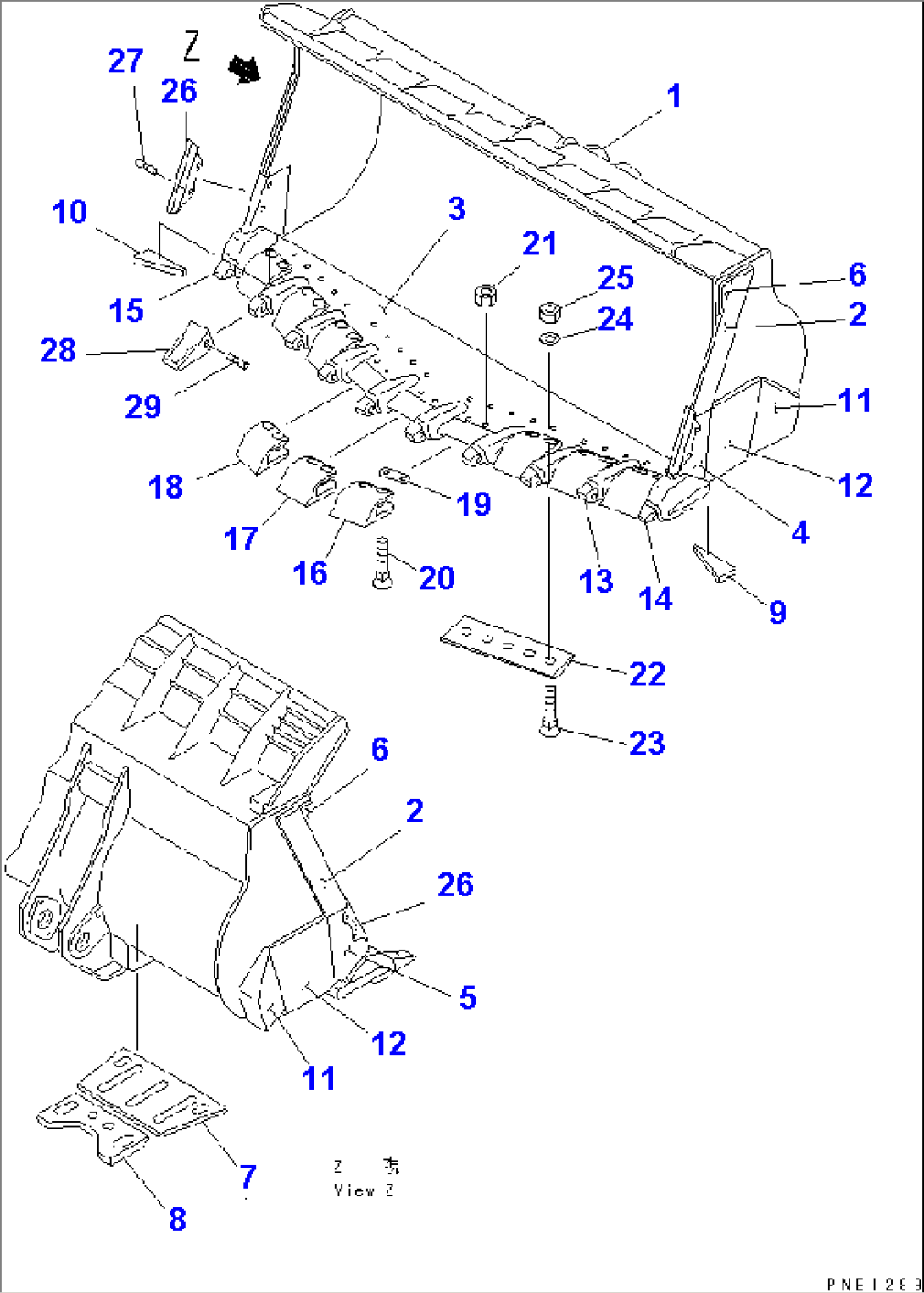

| Item | Part No. | Part Name | Qty | Serial No. |
| 427-V65-1302 | BUCKET ASS'Y | 10501- | ||
| 427-V65-1313 | BUCKET ASS'Y | 10501- | ||
| 1 | 427-V65-1323 | BUCKET | 10501- | |
| 2 | 427-V65-1351 | PLATE (WELDED) | 10501- | |
| 3 | 427-V65-1332 | EDGE (WELDED) | 10501- | |
| 4 | 427-V65-1362 | PLATE,L.H. (WELDED) | 10501- | |
| 5 | 427-V65-1372 | PLATE,R.H. (WELDED) | 10501- | |
| 6 | 427-70-12232 | PLATE (WELDED) | 10501- | |
| 7 | 427-819-1240 | PLATE (WELDED) | 10501- | |
| 8 | 427-819-1250 | PLATE (WELDED) | 10501- | |
| 9 | 427-V65-1510 | PLATE,L.H. (WELDED) | 10501- | |
| 10 | 427-V65-1520 | PLATE,R.H. (WELDED) | 10501- | |
| 11 | 427-819-1270 | GUARD (WELDED) | 10501- | |
| 12 | 427-V65-1381 | PLATE (WELDED) | 10501- | |
| 13 | 427-70-13743 | ADAPTER (WELDED) | 10501- | |
| 14 | 427-70-13754 | ADAPTER,L.H. (WELDED) | 10501- | |
| 15 | 427-70-13764 | ADAPTER,R.H. (WELDED) | 10501- | |
| 16 | 427-70-13681 | GUARD,L.H. | 10501- | |
| 17 | 427-70-13621 | GUARD | 10501- | |
| 18 | 427-70-13691 | GUARD,R.H. | 10501- | |
| 19 | 427-70-13650 | PLATE, 1.0MM | 10501- | |
| 20 | 02091-12050 | BOLT | 10501- | |
| 21 | 02290-12031 | NUT | 10501- | |
| 22 | 427-70-13630 | PLATE | 10501- | |
| 23 | 02091-12040 | BOLT | 10501- | |
| 24 | 01643-33380 | WASHER | 10501- | |
| 25 | 02290-12031 | NUT | 10501- | |
| 26 | 427-70-13610 | GUARD | 10501- | |
| 27 | 09244-12496 | PIN | 10501- | |
| 28 | 427-70-13780 | TOOTH | 10501- | |
| 29 | 427-70-13790 | PIN | 10501- |
