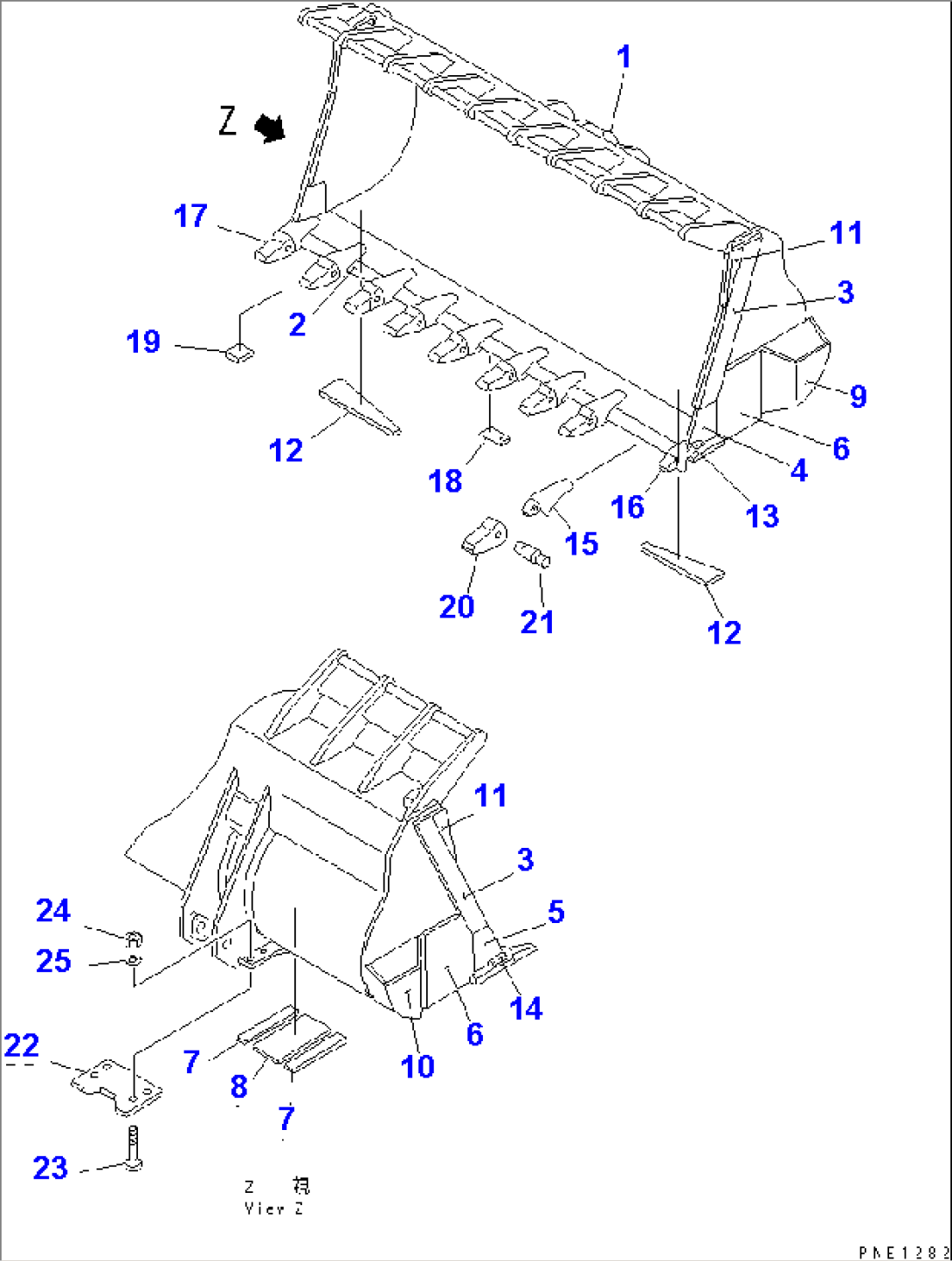

| Item | Part No. | Part Name | Qty | Serial No. |
| 427-807-1101 | BUCKET ASS'Y,WITH TOOTH | .-10499 | ||
| \0\427-807-1100 | BUCKET ASS'Y,WITH TOOTH | 10001-. | ||
| 427-807-1111 | BUCKET SUB ASS'Y | .-10499 | ||
| \0\427-807-1110 | BUCKET SUB ASS'Y | 10001-. | ||
| 1 | 427-807-1212 | BUCKET | .-10499 | |
| \0\427-807-1211 | BUCKET | 10001-. | ||
| 2 | 427-806-1121 | EDGE (WELDED) | 10001-10499 | |
| 3 | 427-70-12132 | PLATE (WELDED) | 10001-10499 | |
| 4 | 427-70-12151 | PLATE,L.H. (WELDED) | 10001-10499 | |
| 5 | 427-70-12161 | PLATE,R.H. (WELDED) | 10001-10499 | |
| 6 | 427-806-1160 | PLATE (WELDED) | 10001-10499 | |
| 7 | 427-806-1250 | PLATE (WELDED) | 10001-10499 | |
| 8 | 427-806-1270 | PLATE (WELDED) | 10001-10499 | |
| 9 | 427-70-12213 | GUARD,L.H. (WELDED) | 10001-10499 | |
| 10 | 427-70-12223 | GUARD,R.H. (WELDED) | 10001-10499 | |
| 11 | 427-806-1360 | PLATE (WELDED) | 10001-@ | |
| 12 | 427-70-12360 | PLATE (WELDED) | 10001-10499 | |
| 13 | 427-70-13580 | PLATE,L.H. (WELDED) | 10001-. | |
| 14 | 427-70-13590 | PLATE,R.H. (WELDED) | 10001-. | |
| 15 | 427-70-13740 | ADAPTER (WELDED) | .-10499 | |
| \0\427-70-13540 | ADAPTER (WELDED) | 10001-. | ||
| 16 | 427-847-1130 | ADAPTER,L.H. (WELDED) | .-10499 | |
| \0\427-847-1110 | ADAPTER,L.H. (WELDED) | 10001-. | ||
| 17 | 427-847-1140 | ADAPTER,R.H. (WELDED) | .-10499 | |
| \0\427-847-1120 | ADAPTER,R.H. (WELDED) | 10001-. | ||
| 18 | 427-70-12412 | PLATE,CENTER (WELDED) | 10001-10499 | |
| 19 | 427-70-13510 | PLATE (WELDED) | 10001-10499 | |
| 20 | 427-70-13780 | TOOTH | 10001-@ | |
| 21 | 427-70-13790 | PIN | 10001-@ | |
| 22 | 427-70-12142 | PLATE,WEAR | 10001-10499 | |
| 23 | 09208-12595 | BOLT | 10001-10499 | |
| 24 | 09218-12523 | NUT | 10001-10499 | |
| 25 | 01643-22460 | WASHER | 10001-10499 |
