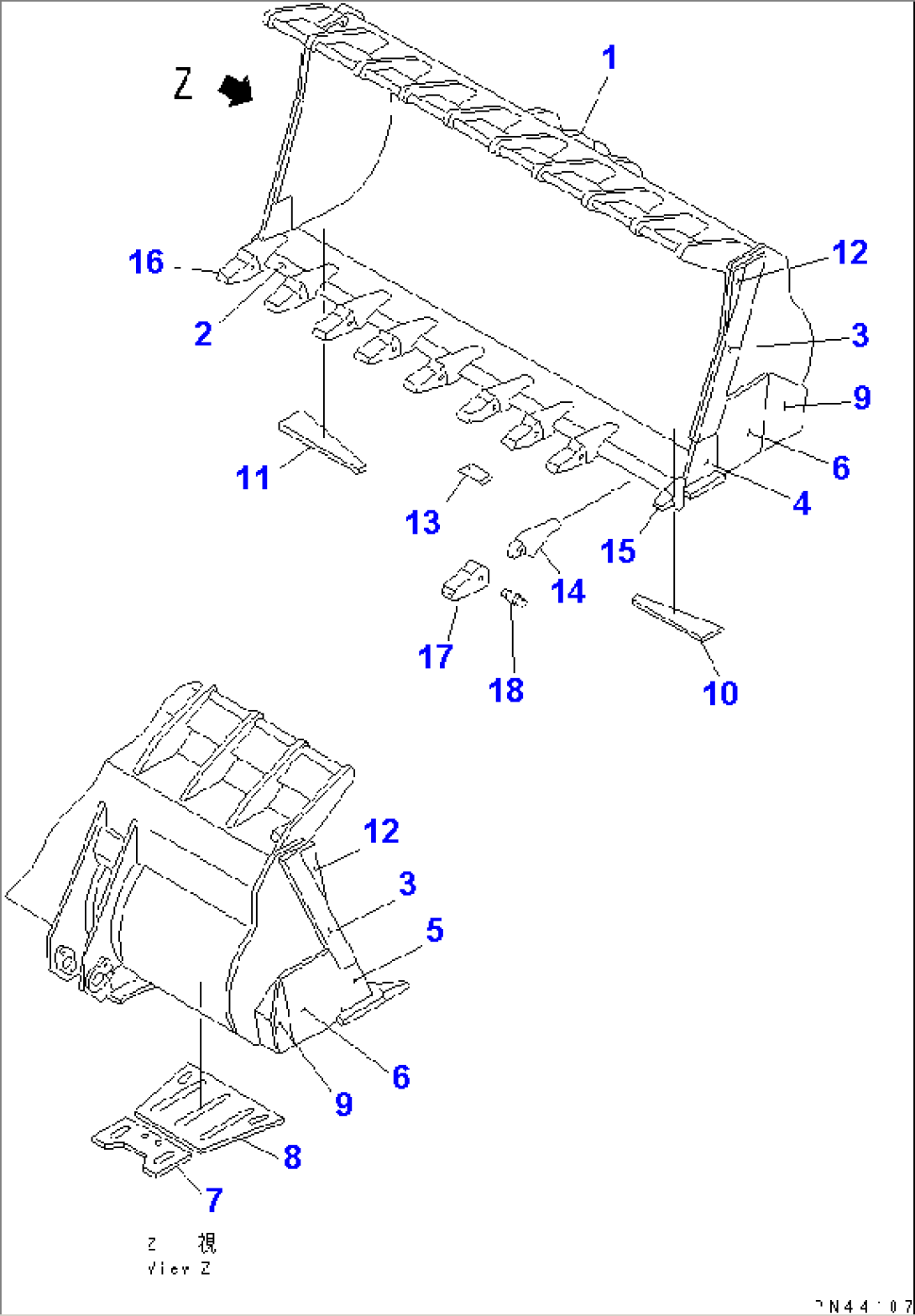

| Item | Part No. | Part Name | Qty | Serial No. |
| 427-807-1502 | BUCKET ASS'Y,WITH TOOTH | .- | ||
| \0\427-807-1501 | BUCKET ASS'Y,WITH TOOTH | 10501-. | ||
| 427-807-1513 | BUCKET SUB ASS'Y | .- | ||
| \0\427-807-1512 | BUCKET SUB ASS'Y | 10501-. | ||
| 1 | 427-806-1522 | BUCKET | 10501- | |
| 2 | 427-806-1123 | EDGE (WELDED) | 10501- | |
| 3 | 427-70-12133 | PLATE (WELDED) | 10501- | |
| 4 | 427-70-12152 | PLATE,L.H. (WELDED) | 10501- | |
| 5 | 427-70-12162 | PLATE,R.H. (WELDED) | 10501- | |
| 6 | 427-806-1530 | PLATE (WELDED) | 10501- | |
| 7 | 427-819-1250 | PLATE (WELDED) | 10501- | |
| 8 | 427-819-1240 | PLATE (WELDED) | 10501- | |
| 9 | 427-819-1270 | GUARD (WELDED) | 10501- | |
| 10 | 427-819-1220 | PLATE,L.H. (WELDED) | 10501- | |
| 11 | 427-819-1230 | PLATE,R.H. (WELDED) | 10501- | |
| 12 | 427-806-1360 | PLATE (WELDED) | 10001- | |
| 13 | 427-70-12413 | PLATE,CENTER (WELDED) | 10501- | |
| 14 | 427-70-13743 | ADAPTER (WELDED) | 10501- | |
| 15 | 427-70-13754 | ADAPTER,L.H. (WELDED) | 10501- | |
| 16 | 427-70-13764 | ADAPTER,R.H. (WELDED) | 10501- | |
| 17 | 427-70-13780 | TOOTH | 10001- | |
| 18 | 427-70-13790 | PIN | 10001- |
