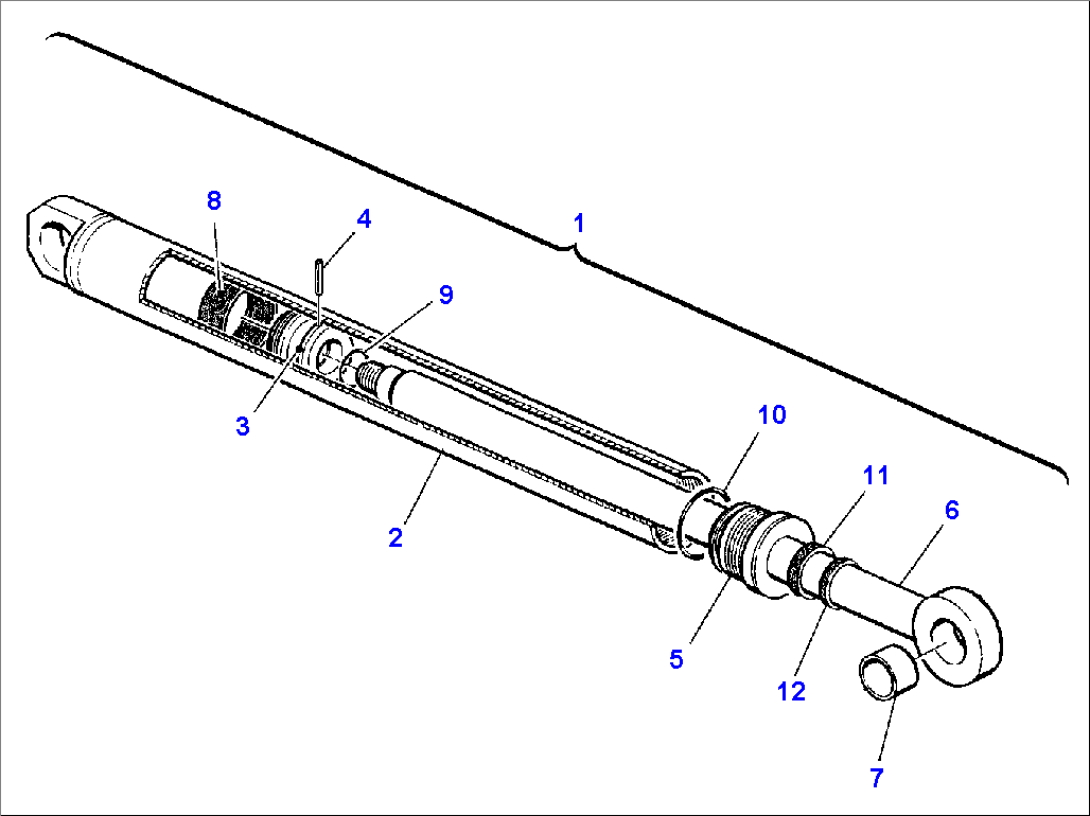

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 312230674 | BUCKET 4 IN 1 CYLINDER, ASSY | 97F20172- | |
| 2 | 312230304 | CYLINDER | 97F20172- | |
| 3 | 312230701 | PISTON | 97F20172- | |
| 4 | 802510173 | PEG | 97F20172- | |
| 5 | 312230702 | CYLINDER HEAD | 97F20172- | |
| 6 | 312230303 | PISTON ROD | 97F20172- | |
| 7 | 390600073 | BUSHING | 97F20172- | |
| \7 | 827020113 | GASKET KIT | 97F20172- | |
| 8 | \6\ | PISTON GASKET | 97F20172- | |
| 9 | \6\ | O RING | 97F20172- | |
| 10 | \6\ | O RING | 97F20172- | |
| 11 | \6\ | GASKET | 97F20172- | |
| 12 | \6\ | PROTECTION | 97F20172- |
