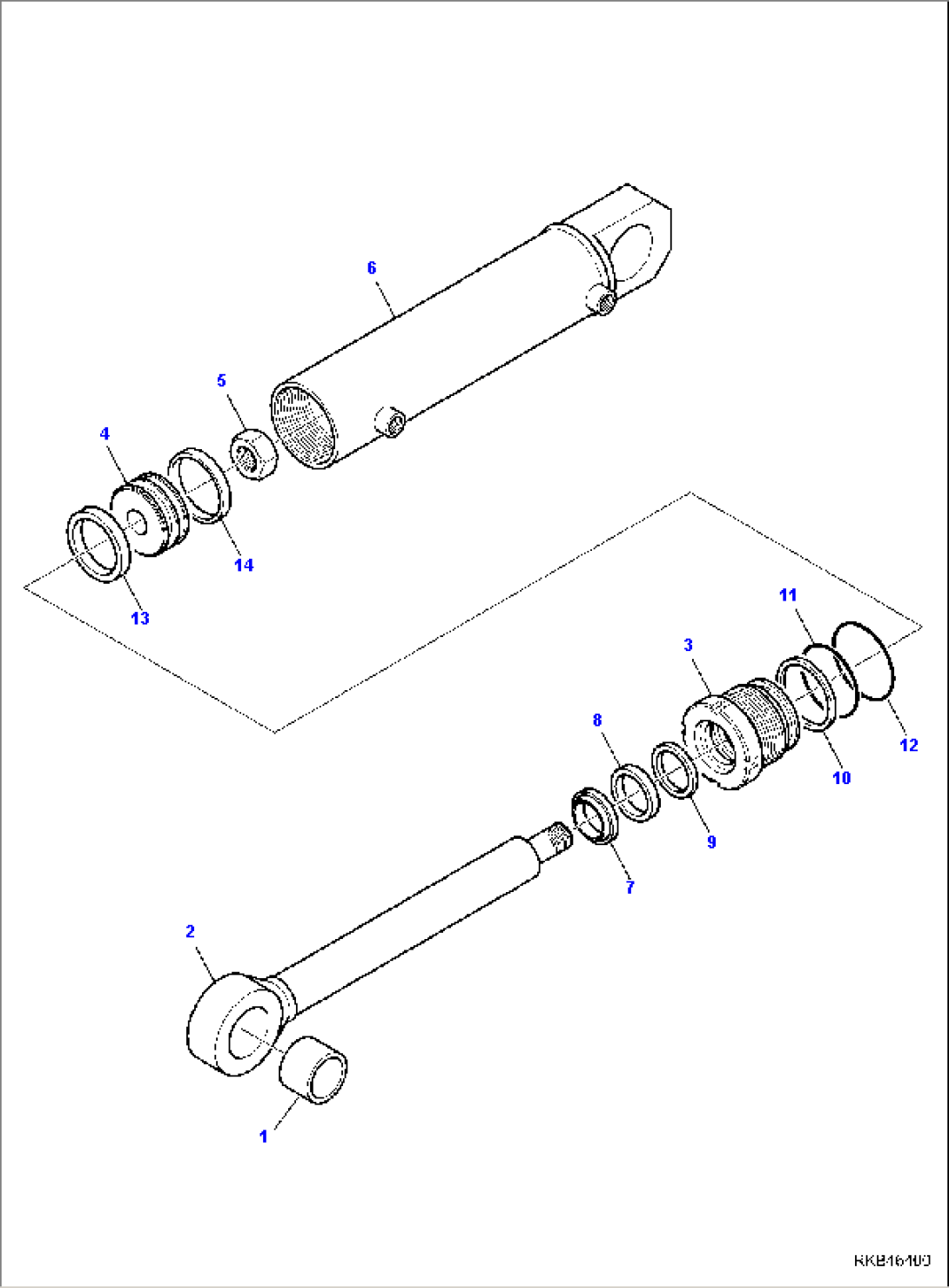

| Item | Part No. | Part Name | Qty | Serial No. |
| \0.99 | 42N-6C-12800 | CYLINDER, ASSEMBLY | F30451- | |
| 1 | 37B-09-49073 | BUSHING | F30451- | |
| 2 | 42N-6C-12820 | PISTON ROD | F30451- | |
| 3 | 42N-6C-12840 | CYLINDER HEAD | F30451- | |
| 4 | 42N-6C-12830 | PISTON | F30451- | |
| 5 | 01580-12419 | NUT | F30451- | |
| 6 | 42N-6C-12810 | CYLINDER | F30451- | |
| \6.99 | 42N-6C-13340 | KIT, GASKET | F30451- | |
| 7 | 37B-09-82103 | GASKET | F30451- | |
| 8 | 37B-09-81102 | GASKET | F30451- | |
| 9 | 37B-09-86104 | GASKET | F30451- | |
| 10 | 37B-09-16332 | RING, BACK-UP | F30451- | |
| 11 | 37B-09-11332 | O-RING | F30451- | |
| 12 | 37B-09-11842 | O-RING | F30451- | |
| 13 | 707-44-70180 | RING, PISTON | F30451- | |
| 14 | 07156-00710 | RING, WEAR | F30451- |
