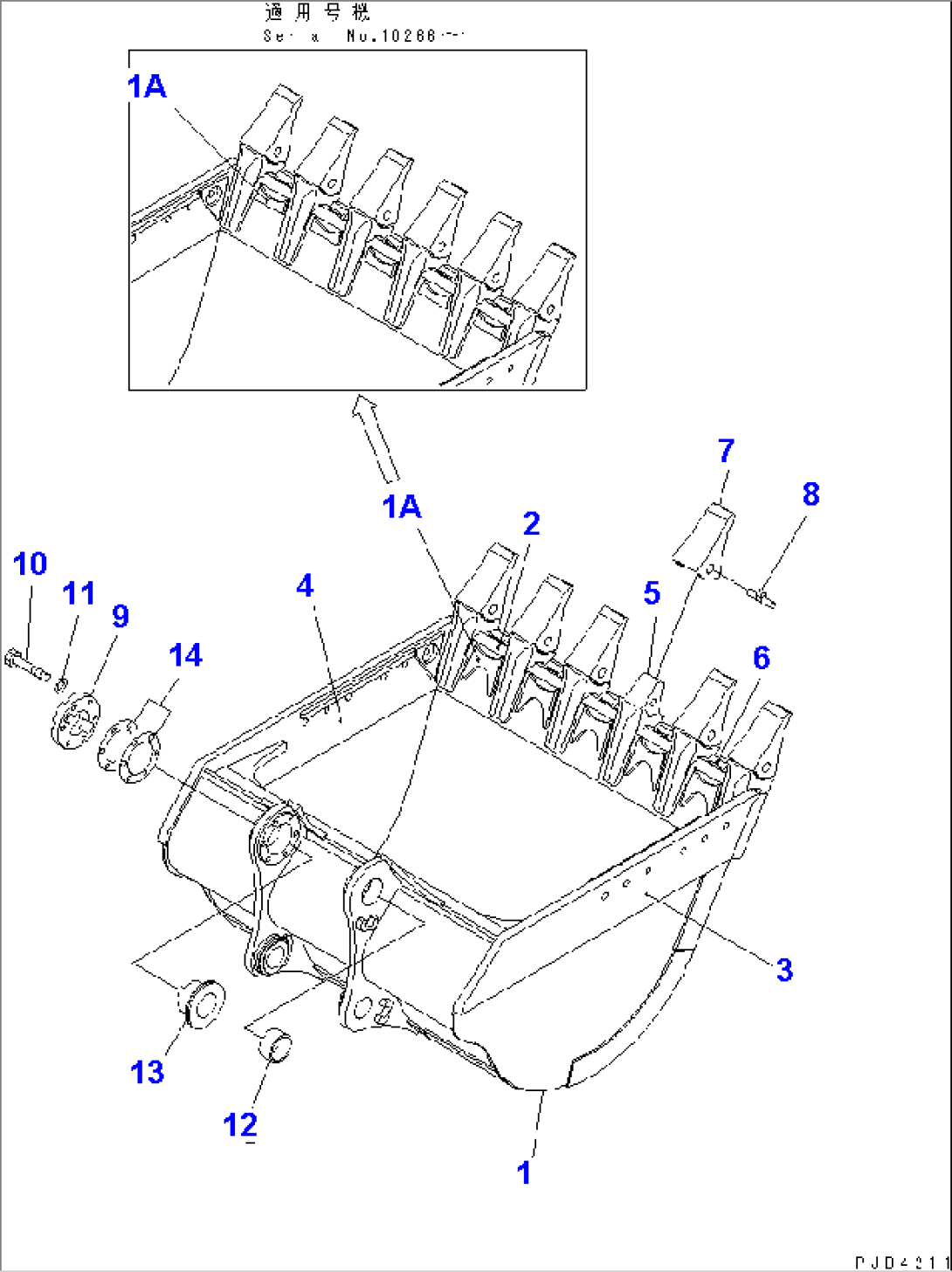

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 209-939-7383 | BUCKET | 10335- | |
| \0\209-939-7382 | BUCKET | 10266-10334 | ||
| 209-939-7381 | BUCKET | 10001-10265 | ||
| 1A | 209-939-7M30 | PLATE (WELDED) | 10266- | |
| 209-939-7D40 | PLATE (WELDED) | 10001-10265 | ||
| 2 | 209-939-7621 | PLATE (WELDED) | 10001- | |
| 3 | 209-939-7681 | PLATE,L.H. (WELDED) | 10001- | |
| 4 | 209-939-7691 | PLATE,R.H. (WELDED) | 10001- | |
| 5 | 209-70-74141 | ADAPTER (WELDED) | 10266- | |
| 209-70-74140 | ADAPTER (WELDED) | 10001-10265 | ||
| 6 | 208-934-5170 | SHROUD (WELDED) | 10001- | |
| 7 | 209-70-54210 | TOOTH | 10001- | |
| 8 | 209-70-54240 | PIN ASS'Y | 10001- | |
| 9 | 209-939-5421 | COVER | 10001- | |
| 10 | 01010-82480 | BOLT | 10001- | |
| 11 | 01643-32460 | WASHER | 10001- | |
| 12 | 209-939-5451 | BUSHING | 10001- | |
| 13 | 209-939-5410 | BUSHING | 10001- | |
| 14 | 209-939-0012 | SHIM ASS'Y | 10001- | |
| \6\ | SHIM¤ 1.0MM | 10001- | ||
| \6\ | SHIM¤ 0.5MM | 10001- |
