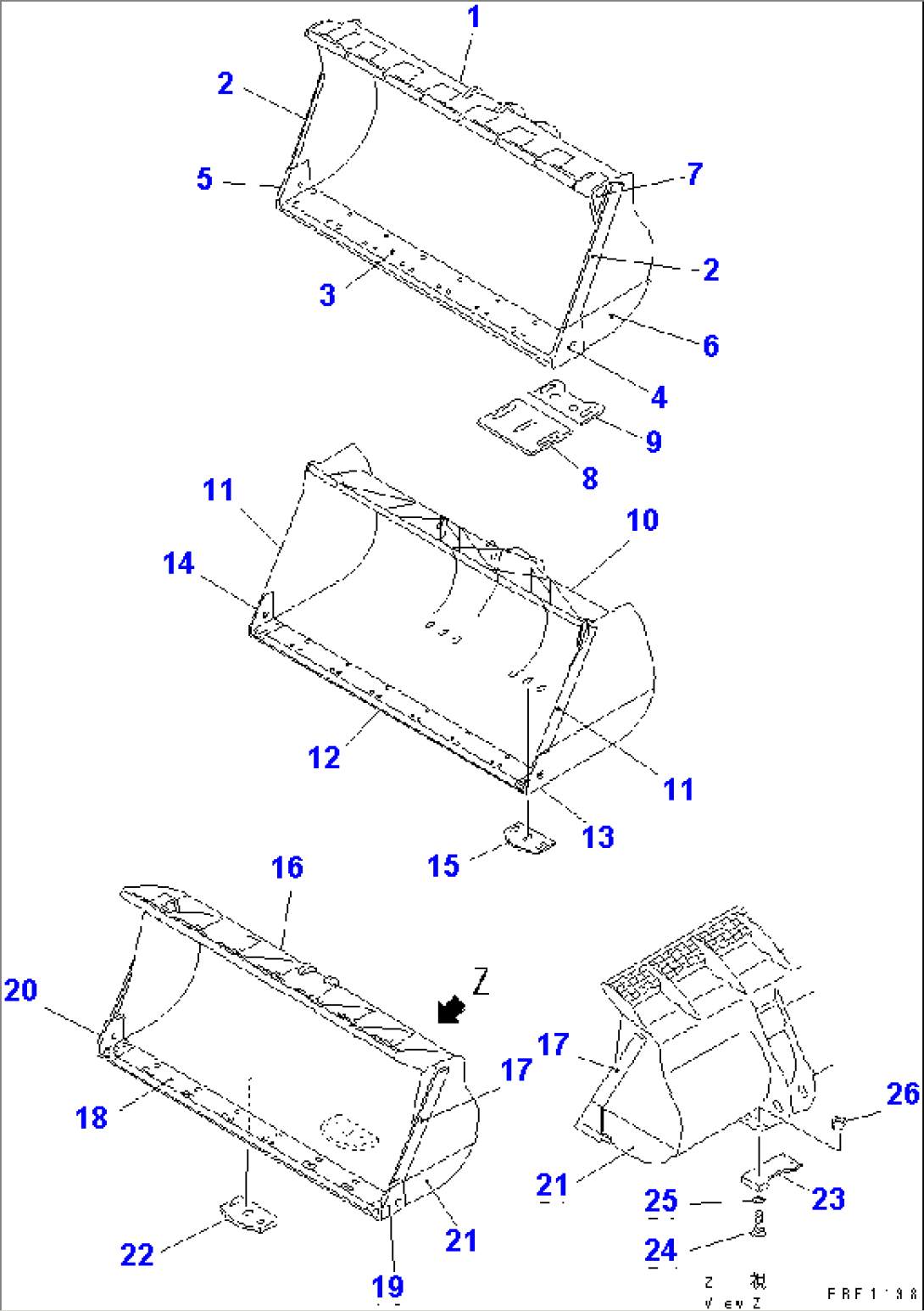

| Item | Part No. | Part Name | Qty | Serial No. |
| 3.1M3 BUCKET | ||||
| 1 | 426-V77-1110 | BUCKET ASS'Y | 10865- | |
| 2 | 426-806-1131 | PLATE (WELDED) | 10865- | |
| 3 | 426-V77-1120 | EDGE (WELDED) | 10865- | |
| 426-V77-1130 | PLATE (WELDED) | 10865- | ||
| 4 | 426-70-12450 | CORNER,L.H. (WELDED) | 10865- | |
| 5 | 426-70-12460 | CORNER,R.H. (WELDED) | 10865- | |
| 6 | 426-V77-1140 | PLATE (WELDED) | 10865- | |
| 7 | 426-V77-1150 | PLATE (WELDED) | 10865- | |
| 8 | 426-70-12820 | PLATE | 10865- | |
| 9 | 426-70-12142 | PLATE | 10865- | |
| 10.8M3 COAL BUCKET | ||||
| 10 | 426-V63-1110 | BUCKET | 10865- | |
| 11 | 426-V63-1220 | PLATE (WELDED) | 10865- | |
| 426-V63-1210 | EDGE (WELDED) | 10865- | ||
| 12 | 426-V63-1240 | EDGE (WELDED) | 10865- | |
| 13 | 426-70-12450 | CORNER,L.H. (WELDED) | 10865- | |
| 14 | 426-70-12460 | CORNER,R.H. (WELDED) | 10865- | |
| 15 | 426-70-12191 | PLATE (WELDED) | 10865- | |
| EXCAVATING BUCKET | ||||
| 5.4M3 BUCKET | ||||
| 16 | 426-806-1112 | BUCKET ASS'Y | 10865- | |
| 17 | 426-806-1131 | PLATE (WELDED) | 10865- | |
| 426-806-1120 | EDGE (WELDED) | 10865- | ||
| 18 | 426-806-1240 | PLATE (WELDED) | 10865- | |
| 19 | 426-70-12450 | CORNER,L.H. (WELDED) | 10865- | |
| 20 | 426-70-12460 | CORNER,R.H. (WELDED) | 10865- | |
| 21 | 426-806-1180 | PLATE (WELDED) | 10865- | |
| 22 | 426-70-12192 | PLATE (WELDED) | 10865- | |
| 23 | 426-70-12142 | PLATE | 10865- | |
| 24 | 02090-11475 | BOLT | 10865- | |
| 25 | 01643-32460 | WASHER | 10865- | |
| 26 | 02290-11422 | NUT | 10865- |
