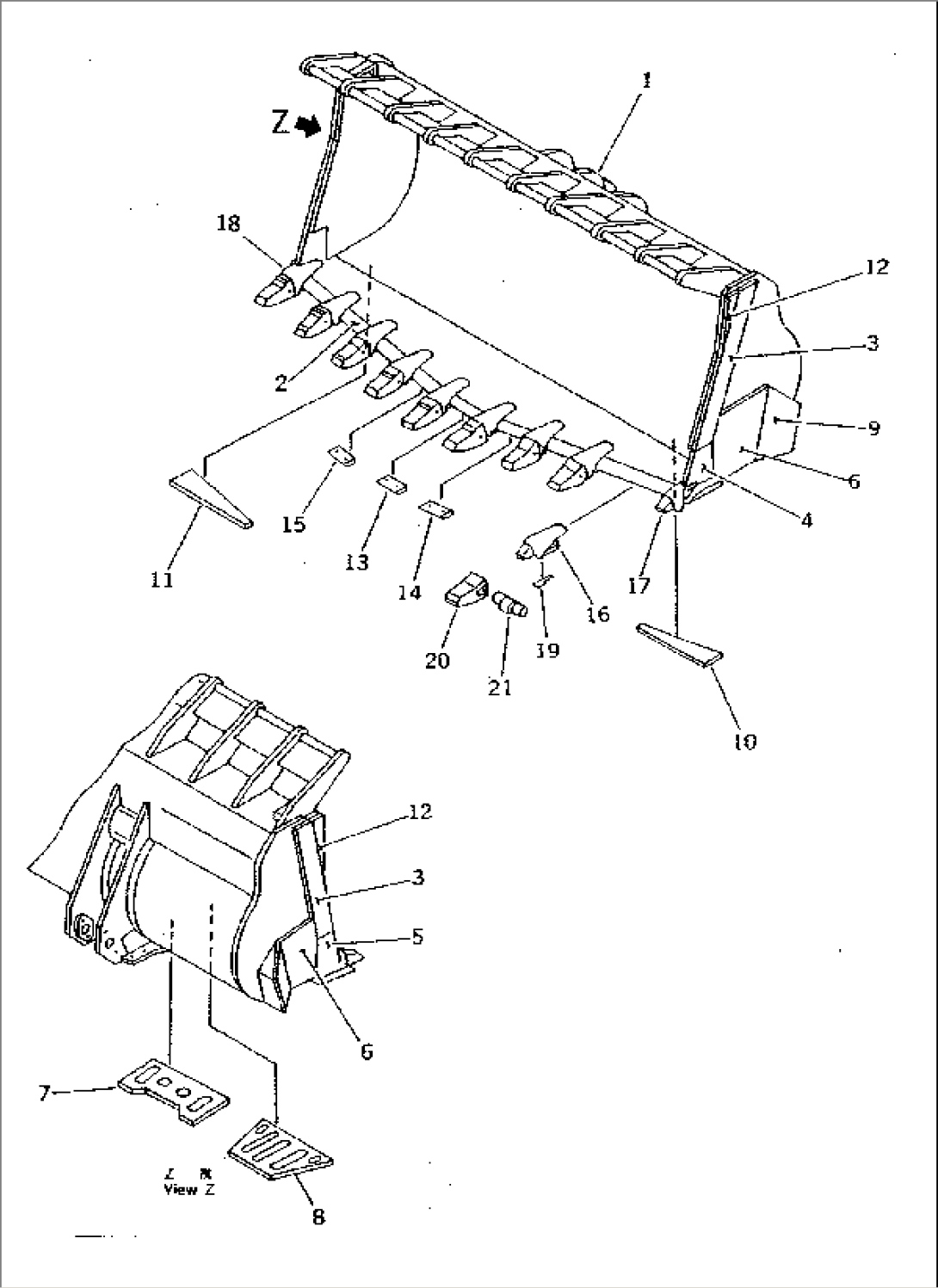

| Item | Part No. | Part Name | Qty | Serial No. |
| 427-V77-1101 | BUCKET ASS'Y | 10501- | ||
| 427-V77-1111 | BUCKET SUB ASS'Y | 10501- | ||
| 1 | 427-V77-1120 | BUCKET | 10501- | |
| 2 | 427-70-12125 | EDGE (WELDED) | 10501- | |
| 3 | 427-831-1132 | PLATE (WELDED) | 10501- | |
| 4 | 427-70-12152 | PLATE,L.H. (WELDED) | 10501- | |
| 5 | 427-70-12162 | PLATE,R.H. (WELDED) | 10501- | |
| 6 | 427-V77-1530 | PLATE (WELDED) | 10501- | |
| 7 | 427-V77-1540 | PLATE (WELDED) | 10501- | |
| 8 | 427-819-1250 | PLATE (WELDED) | 10501- | |
| 9 | 427-819-1270 | GUARD (WELDED) | 10501- | |
| 10 | 427-V77-1560 | PLATE,L.H. (WELDED) | 10501- | |
| 11 | 427-V77-1550 | PLATE,R.H. (WELDED) | 10501- | |
| 12 | 427-V77-1510 | PLATE (WELDED) | 10501- | |
| 13 | 427-70-12413 | PLATE (WELDED) | 10501- | |
| 14 | 427-70-12421 | PLATE,L.H. (WELDED) | 10501- | |
| 15 | 427-70-12393 | PLATE,R.H. (WELDED) | 10501- | |
| 16 | 427-70-13754 | ADAPTER,L.H. (WELDED) | 10501- | |
| 17 | 427-70-13764 | ADAPTER,R.H. (WELDED) | 10501- | |
| 18 | 427-70-13743 | ADAPTER (WELDED) | 10501- | |
| 19 | 427-818-1130 | PLATE (WELDED) | 10501- | |
| 20 | 427-70-13780 | TOOTH,ABRASION | 10501- | |
| 21 | 427-70-13790 | PIN | 10501- |
